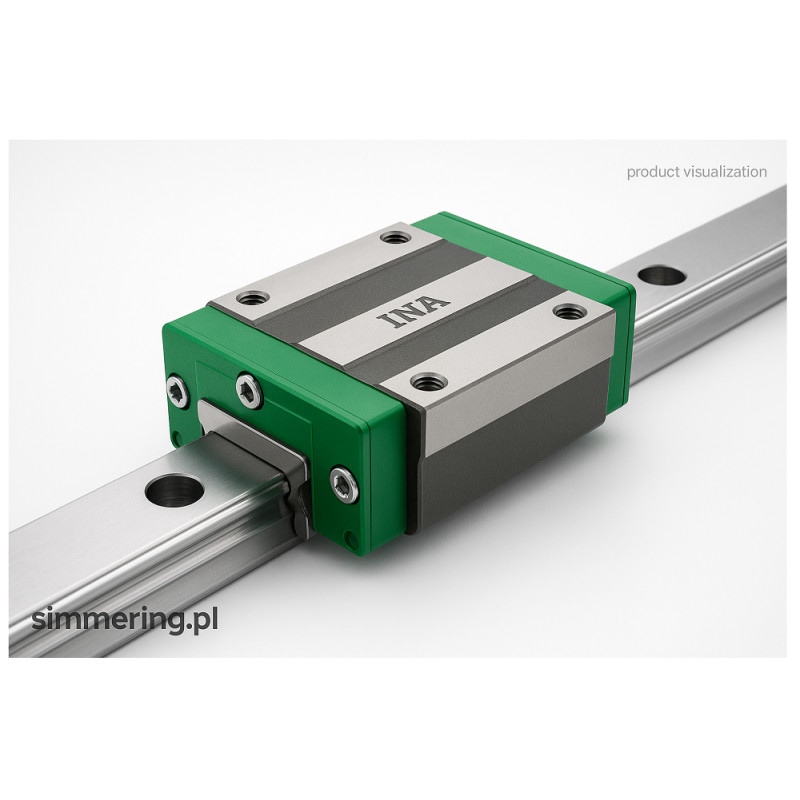

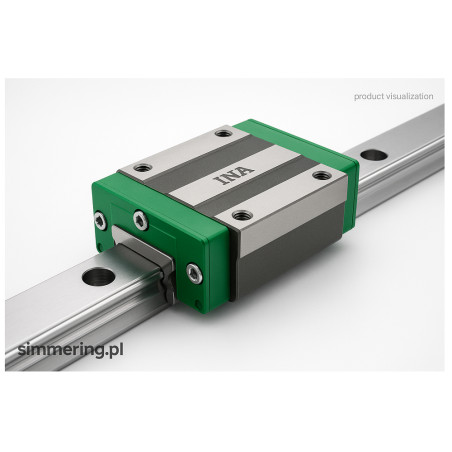

KWSE 35 L V2 G3 INA - Six‑Row Flanged Linear Guide Carriage (35 mm, Preload V2, Precision G3)

KWSE 35 L V2 G3 INA - Six‑Row Flanged Linear Guide Carriage (35 mm, Preload V2, Precision G3)

The KWSE 35 L V2 G3 INA is a robust six-row flanged linear guide carriage, engineered by INA/Schaeffler, designed for high-precision guidance on Ø 35 mm profile rails . With a heavy-duty structure and flanged design, it supports demanding load conditions in industrial automation, CNC machines, and packaging systems.

Key Specifications:

• Rail diameter: 35 mm (inner diameter of guideway)

• Carriage width (B): 100 mm; Overall length (L): ~138.9 mm

• Preload classification: V2 (medium preload)

• Precision class: G3 - tight tolerances for accurate motion

• Dynamic load rating (direction I): up to 70 000 N; static load rating up to 145 000 N

• Construction materials: hardened steel and durable plastic flange

Advantages:

• Six ball rows ensure optimal load capacity and smooth motion

• Flanged design for simple and secure mounting

• V2 preload improves stability and positional accuracy

• Precision class G3 supports high-end CNC and robotic applications

• Pre-lubricatable for enhanced longevity

❓ FAQ

Q1: Which guide rail is compatible?
A: Designed specifically for Ø 35 mm circular guide rails.

Q2: What do V2 and G3 indicate?
A: V2 - medium preload for enhanced rigidity. G3 - high-precision classification.

Q3: What are its load capacities?
A: Dynamic (I direction up to 70 000 N), static (I₀ up to 145 000 N).

Q4: Is lubrication required?
A: Pre-lubricated; relubrication ports available for maintenance.

Q5: How fast is delivery?
A: 24h dispatch from Lublin - nationwide and international shipping.
