KWVE20-B-S-V1-G2 INA - Narrow Linear Guide Carriage, 20 mm Rail, Four-Row Ball Circulation

KWVE20-B-S-V1-G2 INA - Narrow Linear Guide Carriage, 20 mm Rail, Four-Row Ball Circulation

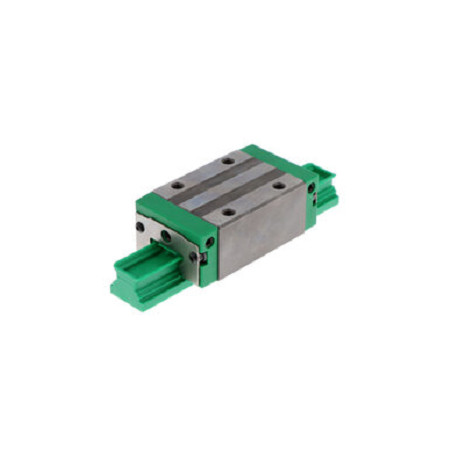

The KWVE20-B-S-V1-G2 is a high-precision, narrow linear guide carriage from INA, designed for applications requiring compactness and reliability. Featuring a four-row ball circulation system in an O-arrangement, it ensures high load capacity and rigidity in all directions. The carriage is compatible with 20 mm wide rails and is suitable for various industrial applications, including CNC machinery, automation systems, and robotics.​

Key Features:

• Rail Width Compatibility: 20 mm

• Carriage Width: 44 mm

• Carriage Length: 71.4 mm

• System Height: 30 mm

• Dynamic Load Rating (C): 13,100 N

• Static Load Rating (C₀): 27,000 N

• Static Moment Rating (M₀x): 332 Nm

• Static Moment Rating (M₀y/M₀z): 240 Nm

• Preload Class: V1 (slight preload)

• Accuracy Class: G2 (high precision)

• Weight: 0.34 kg

• Sealing: Open design (no seals)​

Advantages:

• Compact and lightweight design for space-constrained applications

• High rigidity and load capacity in all directions

• Smooth and precise linear motion

• Easy integration into existing systems

• Suitable for high-speed and high-precision operations​

⚙️ Typical Applications:

• CNC machines and machining centers

• Automation and assembly lines

• Robotics and pick-and-place systems

• Medical and laboratory equipment

• Precision measuring instruments​

📊 Technical Specifications:

❓ Frequently Asked Questions (FAQ):

1. What does the "V1" preload class signify?
The "V1" designation indicates a slight preload, providing minimal internal clearance for improved rigidity and precision in linear motion applications.​

2. Is the KWVE20-B-S-V1-G2 compatible with all 20 mm rails?
Yes, it is designed to fit standard 20 mm wide linear guide rails, ensuring broad compatibility across various systems.​

3. Does the open design affect the carriage's performance?
The open design facilitates easy maintenance and lubrication but may require additional protective measures in environments with high contamination levels.​

4. Where can I purchase the KWVE20-B-S-V1-G2 INA carriage?
You can order it directly from our B2B platform at simmering.pl, with fast shipping from our warehouse in Lublin, Poland.​
