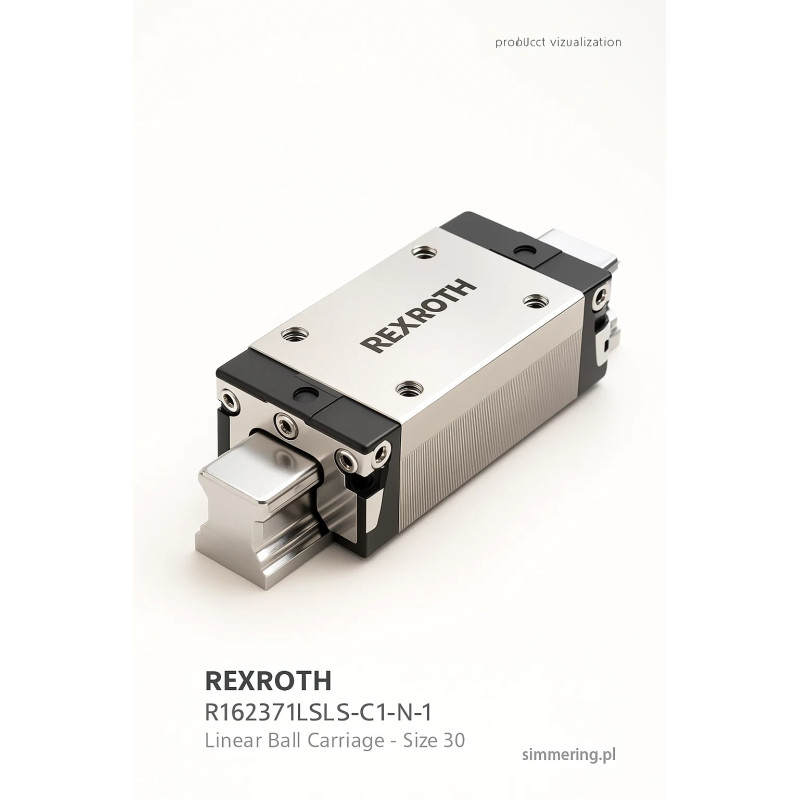

REXROTH R162371420 KWD-030-SLS-C1-N-1 Linear Ball Carriage - Size 30

Applications and Industrial Use

The REXROTH R162371420 KWD-030-SLS-C1-N-1 linear ball carriage is a narrow and elongated guide element designed for precision linear motion systems in demanding industrial environments. Its steel construction and compact geometry ensure stable, accurate movement in machine tools, production systems, automated lines, packaging machines, handling equipment, and robotic modules.

This carriage is widely used in positioning units, sliding tables, tool stages, transport mechanisms, metal-processing equipment, marking and cutting machines, and all applications requiring smooth, low-friction linear movement with high load capacity and repeatability.

Key Advantages and Performance Features

• High precision and smooth linear movement
  The ball-circulation design reduces friction and enables highly accurate positioning, essential for machining, automation systems, and high-precision industrial processes.

• Enhanced durability with carbon-steel construction
  The robust steel body provides excellent resistance to dynamic and radial loads, ensuring a long operational life even under continuous or heavy industrial use.

• Narrow, elongated shape for compact installations
  The optimized geometry allows easy integration into machines with limited mounting space while maintaining stability and high load resistance along the full travel path.

• Excellent rigidity and repeatability
  Accurate geometry and quality manufacturing minimize vibration, backlash, and deformation — improving machining quality, system reliability, and safety.

• Versatility across industrial segments
  Suitable for automation, assembly lines, production systems, conveyors, CNC machines, agricultural machinery, and any equipment requiring reliable linear guidance.

Technical Specifications

• Model: REXROTH R162371420 KWD-030-SLS-C1-N-1

• Type: Linear ball carriage (ball-guided linear bearing)

• Size: 30 mm

• Material: Carbon steel

• Design: Narrow and long body, optimized for precise linear motion

• Load capacity: High resistance to radial and dynamic loads

• Typical use: CNC equipment, automation, production machines, transfer systems, sliding tables, positioning units

FAQ - Frequently Asked Questions

Q: In what types of machines is the REXROTH KWD-030 carriage used?
A: It is suitable for CNC machines, automation systems, production lines, sliding tables, robotic units, conveyors, and all machinery requiring accurate linear guidance.

Q: Why is carbon steel important for this carriage?
A: Carbon steel increases strength, durability, and load resistance, ensuring reliable long-term performance in demanding industrial environments.

Q: Is the narrow and long construction beneficial for compact machine designs?
A: Yes. It allows installation in tight spaces while maintaining high precision and load stability.

Q: Does this carriage require a specific guide rail?
A: It is compatible with standard linear guide rails used in most industrial linear systems, which makes integration straightforward.

Q: Is the KWD-030 series suitable for continuous operation?
A: Absolutely — its steel construction, high-precision bearing geometry, and low-friction motion make it ideal for continuous or heavy-duty industrial applications.
