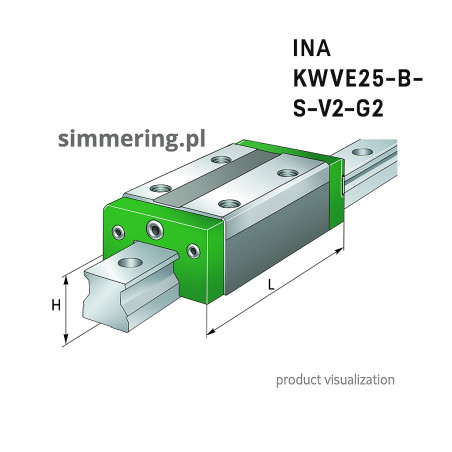

INA KWVE25‑B‑S‑V2‑G2 - 25 mm Narrow Linear Guide Block, Preload V2, Precision G2

INA KWVE25‑B‑S‑V2‑G2 - 25 mm Narrow Linear Guide Block, Preload V2, Precision G2

The INA KWVE25‑B‑S‑V2‑G2 is a high precision, narrow linear guide block designed by INA (Schaeffler) for demanding industrial environments. Featuring V2 preload and G2 manufacturing tolerance, it delivers stiff, low-clearance motion with superb load capacity.

Specifications:

• Bore Ø: 23 mm, M6 mounting thread

• Block width (B): 48 mm

• Length (L): 83.3 mm

• System height (H): 36 mm

• Dynamic load (C): 17,900 N; Static load (C₀): 37,000 N

• Static moments: M₀ₓ=510 N·m, M₀ᵧ=M₀_z=395 N·m

• Weight: ~0.56 kg

• Preload: V2 (medium preload)

• Precision class: G2

• Feature: four-row recirculating bearings, narrow block (“S”), non-sealed

📍 Warehouse: Smoluchowskiego 1, Building 4, Lublin, Poland
🚚 24h Delivery - Domestic & International

Ideal for: CNC equipment, automation systems, precision machines, assembly lines and robotics.

🔑 Keywords

❓ FAQ

Q1: What rail size does it fit?
Fits 23 mm wide INA profile rails.

Q2: What do V2 and G2 indicate?
V2 = medium preload level; G2 = high manufacturing accuracy tolerance.

Q3: What load ratings does it have?
Dynamic: 17,900 N; Static: 37,000 N.

Q4: Is it pre-lubricated?
No grease included—customer must apply lubricant before usage.

Q5: Shipping details?
📍 Shipped from Lublin; 🚚 Delivered within 24h worldwide.
