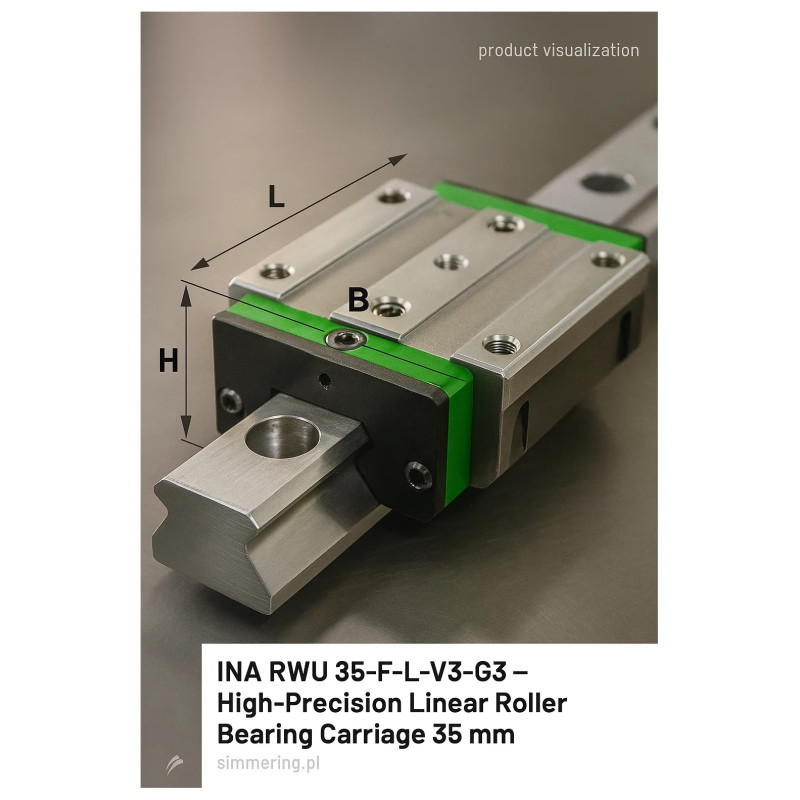

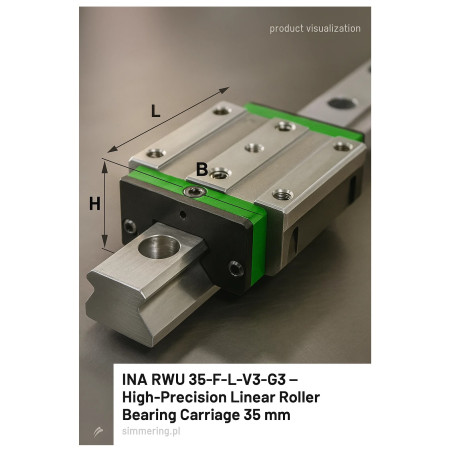

INA RWU 35-F-L-V3-G3 - High-Precision Linear Roller Bearing Carriage 35 mm

INA RWU 35-F-L-V3-G3 - High-Precision Linear Roller Bearing Carriage 35 mm

The INA RWU 35-F-L-V3-G3 is a high-performance linear roller bearing carriage designed for applications requiring precise linear motion and high load capacity. Manufactured by INA, a renowned brand under the Schaeffler Group, this carriage is engineered to deliver exceptional performance in demanding industrial environments.

Key Specifications:

• Width (B): 100 mm

• Overall Length (L): 148.80 mm

• Height (H): 48 mm

• Dynamic Load Rating (C): 175,000 N

• Static Load Rating (C₀): 420,000 N

• Preload Class: V3 (high preload for increased rigidity)

• Accuracy Class: G3 (high precision)

• Lubrication: Suitable for oil or grease lubrication

• Temperature Range: -10°C to +100°C

• Weight: Approximately 2.29 kg

Features:

• High Load Capacity: The RWU 35-F-L-V3-G3 is designed to handle substantial dynamic and static loads, making it suitable for heavy-duty applications.

• Precision Engineering: With a G3 accuracy class, this carriage ensures minimal tolerances, providing precise linear motion.

• Versatile Lubrication Options: Compatible with both oil and grease lubrication, offering flexibility in maintenance.

• Wide Temperature Range: Operates efficiently in temperatures ranging from -10°C to +100°C, suitable for various industrial environments.

Applications:

The INA RWU 35-F-L-V3-G3 linear roller bearing carriage is ideal for:

• CNC machinery

• Industrial automation systems

• Robotics

• Material handling equipment

• Precision measurement instruments

Advantages:

• Enhanced Rigidity: The V3 preload class increases the system's rigidity, reducing deflection and improving precision.

• Durability: High-quality materials and construction ensure long service life and reliability.

• Ease of Maintenance: The carriage's design allows for easy lubrication and maintenance, minimizing downtime.

FAQ:

Q1: What does the "V3" preload class signify?

A1: The "V3" preload class indicates a high preload, enhancing the carriage's rigidity and precision by reducing deflection under load.

Q2: What is the significance of the G3 accuracy class?

A2: The G3 accuracy class ensures that the carriage operates within tight tolerances, providing high precision in linear motion applications.

Q3: Can the RWU 35-F-L-V3-G3 be used in outdoor environments?

A3: While the carriage can operate in temperatures ranging from -10°C to +100°C, it is recommended to use it in controlled indoor environments to protect against environmental factors.

Q4: What lubrication options are compatible with this carriage?

A4: The RWU 35-F-L-V3-G3 is compatible with both oil and grease lubrication, providing flexibility based on maintenance requirements.
