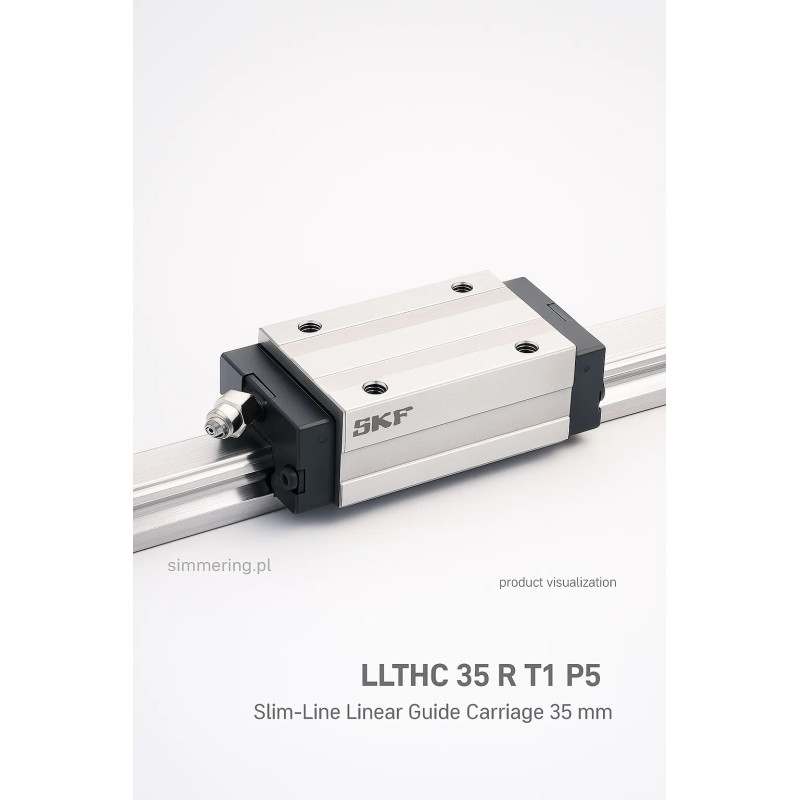

LLTHC 35 R T1 P5 - Slim-Line Linear Guide Carriage 35 mm

LLTHC 35 R T1 P5 - Slim-Line Linear Guide Carriage 35 mm

The LLTHC 35 R T1 P5 is a high-precision Slim-Line linear guide carriage with a nominal width of 35 mm. Designed for demanding linear motion systems, it belongs to the LLT profile rail guide series from SKF / Ewellix. With preload type T1 (light preload) and precision class P5, this carriage ensures smooth, rigid, and highly accurate motion. Compatible with LLT 35 profile rails, it provides excellent load capacity and stability even in compact installations.

Technical Specifications

• Type: Slim-Line profile rail carriage (R design)

• Nominal width: 35 mm

• Accuracy class: ISO P5 - high precision

• Preload: T1 - light preload for minimal clearance and improved rigidity

• Dynamic load rating: approx. 34,700 N

• Moment load capacity: Mx ~535 Nm, My/Mz ~388 Nm

• Carriage length: ~114 mm

• Weight: ~1.5 kg

Key Advantages

• High precision and rigidity - perfect for demanding motion applications

• Compact Slim-Line design - ideal for limited installation spaces

• Light preload eliminates clearance and increases stiffness

• Easy integration with LLT rail systems

Applications

• CNC machines and precision tools

• Robotics and automation

• Assembly systems and linear modules

• Industrial equipment requiring smooth, low-friction movement

FAQ

Q1: What does “Slim-Line” mean for the LLTHC 35 R carriage?
It refers to the compact, low-profile design that saves space while maintaining load capacity.

Q2: What is preload T1?
T1 stands for light preload, which reduces clearance and enhances stiffness for precise positioning.

Q3: Why is accuracy class P5 important?
P5 indicates a high ISO precision class with reduced tolerances, ensuring smooth operation and extended service life.

Q4: What loads can this carriage handle?
Dynamic load capacity of ~34,700 N and moments up to 535 Nm, depending on mounting and application.

Q5: How fast is delivery?
We offer 24h shipping directly from our warehouse in Lublin.
