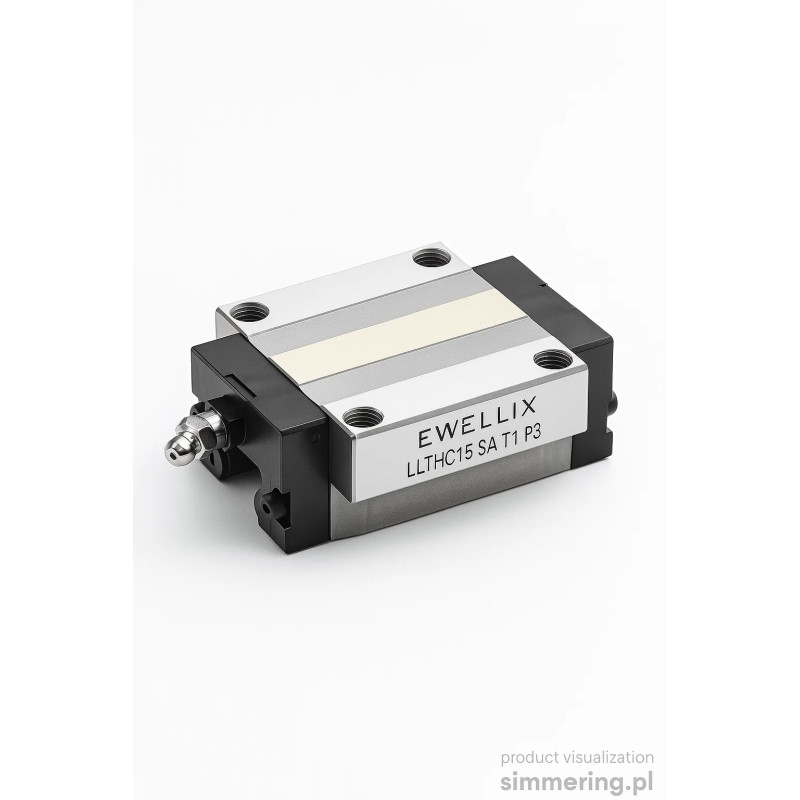

Ewellix LLTHC15 SA T1 P3 — Flanged Linear Ball Carriage, Size 15, Precision Class P3 — AI-Powered Review
1 pcs.
€39.87
(net)
Price for: 1pcs.
The Ewellix LLTHC15 SA T1 P3 is a high-precision linear ball carriage with flanged SA short design, size 15, light preload (T1), and P3 tolerance class. With dynamic load capacity of about 8,400 N, static around 15,400 N, and robust moment capacity, it delivers accurate, smooth motion in compact spaces. Ideal for automation, robotics, CNC and precise machinery.
📍 Warehouse & Store: Lublin, ul. Smoluchowskiego 1, building 4
🚚 24h shipping - fast and efficient order processing
AI-Powered Review - guaranteeing technical accuracy, fit confidence, and performance clarity.
Ewellix LLTHC15 SA T1 P3 — Flanged Linear Ball Carriage, Size 15, Precision Class P3 — AI-Powered Review
The Ewellix LLTHC15 SA T1 P3 is a premium linear motion carriage designed for profile rail systems. Version SA indicates Flanged Carriage, Short design; Size 15 denotes a 15 mm nominal rail; T1 corresponds to light preload; P3 is the precision class (high accuracy). This carriage is engineered for dynamic motion with smooth, precise operation.
Key Specifications
| Parameter | Value |
|---|---|
| Nominal Rail Size | 15 mm |
| Carriage Type | Flanged Carriage (SA), Short design |
| Preload Class | Light preload (T1) |
| Precision / Accuracy Class | P3 |
| Dynamic Load Capacity (C) | approx. 8,400 N (when paired with suitable rail) |
| Static Load Capacity (C₀) | approx. 15,400 N |
| Moment Load (My / Mz) | ~49 Nm / ~56 Nm (depending on application) |
| Operating Temperature Range | -20 °C to +80 °C |
| Material | Chrome steel balls; hardened steel block; sealed design for durability and protection |
Dimensions & Features
-
Short flange design reduces overall footprint, ideal when space is limited.
-
Light preload (T1) gives reduced play / backlash, smoother motion without excessive friction.
-
P3 precision class ensures tighter tolerances and more accurate linear movement.
-
Flanged mounting makes installation easier and reliable for many applications.
-
Seals or shields may be included in matching carriage-rail setups to protect against dust, debris, and prolong life.
Applications & Use-Cases
This carriage is perfect for:
-
CNC machines, 3D printers, robotics, automation & pick-and-place systems
-
Industrial linear motion setups (conveyors, material handling)
-
Medical devices where precise positioning is required
-
Light machinery where smooth, predictable travel is needed
5. FAQ - Frequently Asked Questions
Q: What does LLTHC15 SA T1 P3 mean?
A: It breaks down as follows: LLT series profile rail, HC meaning “heavy carriage / high load”; 15 = rail size 15 mm; SA = Flanged carriages, Short design; T1 = Light preload; P3 = precision class (higher tolerance accuracy).
Q: What is the load capacity of the LLTHC15 SA T1 P3 carriage?
A: Dynamic load capacity ~8,400 N; static load capacity ~15,400 N when used with compatible rails. Moment loads also robust (~49-56 Nm depending on direction).
Q: Is this carriage suitable for high accuracy applications?
A: Yes. The P3 precision class and light preload make it suitable for high precision positioning, low backlash, smooth operation.
Q: What is the operating temperature range?
A: -20 °C to +80 °C; works well in environments with moderate variation. Suitable for most industrial and automation settings.
Q: How is it installed and does it require special maintenance?
A: It mounts onto a matching LLT size-15 rail using flange mounting points. Light preload means less initial wear. Regular lubrication may be needed depending on usage environment; seals protect but cleaning and re-lubrication help extend life.
6. Keywords & Search Phrases
-
Ewellix LLTHC15 SA T1 P3
-
Ewellix LLT size-15 carriage
-
Flanged linear ball carriage P3 precision
-
Light preload linear carriage 15 mm
-
Linear guide carriage LLTHC15 A T1 P3
-
Profile rail carriage 15 SA short design
-
High accuracy linear motion block P3
-
Flanged block for automation robotics
The Ewellix LLTHC15 SA T1 P3 is a high-precision linear ball carriage with flanged SA short design, size 15, light preload (T1), and P3 tolerance class. With dynamic load capacity of about 8,400 N, static around 15,400 N, and robust moment capacity, it delivers accurate, smooth motion in compact spaces. Ideal for automation, robotics, CNC and precise machinery.
