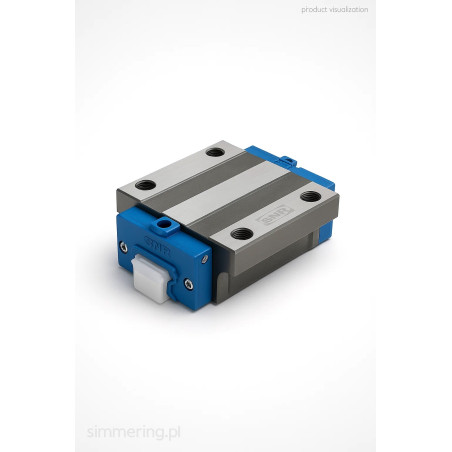

SNR LGBXH20 FLSSNZ1-N Linear Guide Block - Precision Linear Motion 20 mm

Applications

The SNR LGBXH20 FLSSNZ1-N is a precision linear guide block designed for use with 20 mm linear guide rails. It ensures stable, smooth, and repeatable linear motion, making it suitable for demanding industrial and automation environments where accuracy and durability are critical.

Typical applications include:

• CNC machining centers and milling machines

• Industrial automation and mechatronics

• Robotics and multi-axis positioning systems

• Packaging and material handling equipment

• Large-format printers, measurement and inspection machines

• Conveying and precision assembly systems

Its FL flange design allows straightforward mounting from above, simplifying mechanical integration into machine frames and modular structures.

Key Advantages

• High positioning accuracy thanks to precision ball circulation design

• Smooth and quiet motion - the Z1 specification ensures reduced noise level during operation

• High rigidity and load capacity, suitable for dynamic and static loads

• Long operating life due to optimized internal geometry and low-friction contact surfaces

• Compatible with standard 20 mm linear rails (SNR / NTN / HIWIN / THK profile equivalent)

Technical Data

This guide block is designed to deliver repeatable precision and long service life, even in continuous-duty applications.

FAQ

1. Is this block compatible with HIWIN or THK 20 mm rails?
Yes - it is compatible with standard profile 20 mm rails, assuming dimensional equivalence is met.

2. Does the block require lubrication?
Yes - periodic lubrication is recommended to maintain smooth motion and extend service life.

3. Can this block be used for vertical or overhead applications?
Yes - its flange mounting design provides stable support in any orientation.

4. What does the “Z1” designation mean?
It indicates optimized smooth and quiet running, suitable for CNC and precision positioning.

5. Is this guide block suitable for high-speed linear motion?
Yes - its ball circulation system enables low-friction movement, ideal for high-speed applications.
