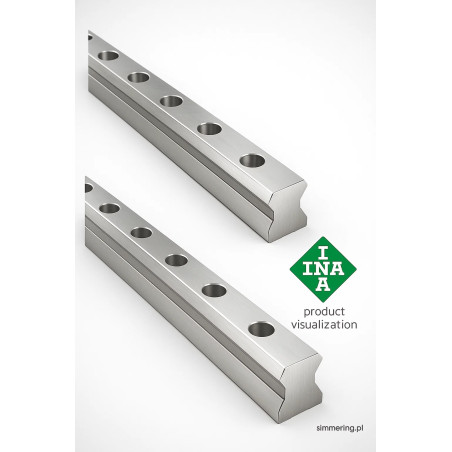

INA TSX45 E-G2-1475 Linear Guide Rail

Precision Linear Motion & Profile Construction

The INA TSX45 E-G2-1475 is a profile rail linear guide engineered to deliver high-precision, high-rigidity motion control in industrial applications. With a 45 mm rail width and hardened surface construction, this linear bearing system provides exceptional straightness and load capacity, tailored for demanding machine tool, automation, and transport line installations. It forms a key component of a complete bearing unit and bearing housing solution designed for continuous, reliable operation with minimal maintenance.

Industrial Applications & Business Benefits

This linear guide supports a broad range of applications in manufacturing, robotics, material-handling systems, and machine tools where high durability, repeatability and compact design are critical. For B2B procurement and maintenance teams, the advantages are clear:

• Consistent precision motion, enabling tighter tolerances and improved production quality.

• Ready-to-integrate size (45 mm) simplifies inventory and fits standard bearing housings or units.

• Built for demanding conditions, it supports high dynamic loads and frequent movement cycles, reducing downtime and service costs.

• Streamlines logistic management—one rail size supports multiple machine references and platforms.

Specification Summary

• Model: INA TSX45 E-G2-1475

• Type: Profiled rail linear guide

• Rail width: 45 mm

• Accuracy class: G2 - high precision motion

• Usage: Linear motion applications, bearing housing integration, bearing units

• Keywords included: linear guide rail, profile rail system, industrial linear motion, bearing unit, bearing housing

FAQ

Q1: What environments is the TSX45 rail best suited for?
A1: Ideal for automation systems, CNC machines, logistics conveyors, and any industrial setting demanding precise linear motion and robust service life.
Q2: Does the 45 mm width mean it fits standard mounts?
A2: Yes - the 45 mm specification is common and compatible with many bearing units or housings designed for industrial linear guides.
Q3: What does accuracy class G2 imply?
A3: G2 denotes a higher level of precision in carriage straightness and fit, enabling tighter tolerances and smoother movement in critical applications.
Q4: How does this rail integrate with bearing units or bearing housings?
A4: The rail serves as a foundational component, supporting carriages and blocks that mount to bearing housings or units for motion along the profile—ensuring stable infrastructure for load transfer.
Q5: Is the product available for fast B2B supply?
A5: Yes - tailored for industrial buyers with warehouse stock and rapid dispatch for maintenance and production continuity.
