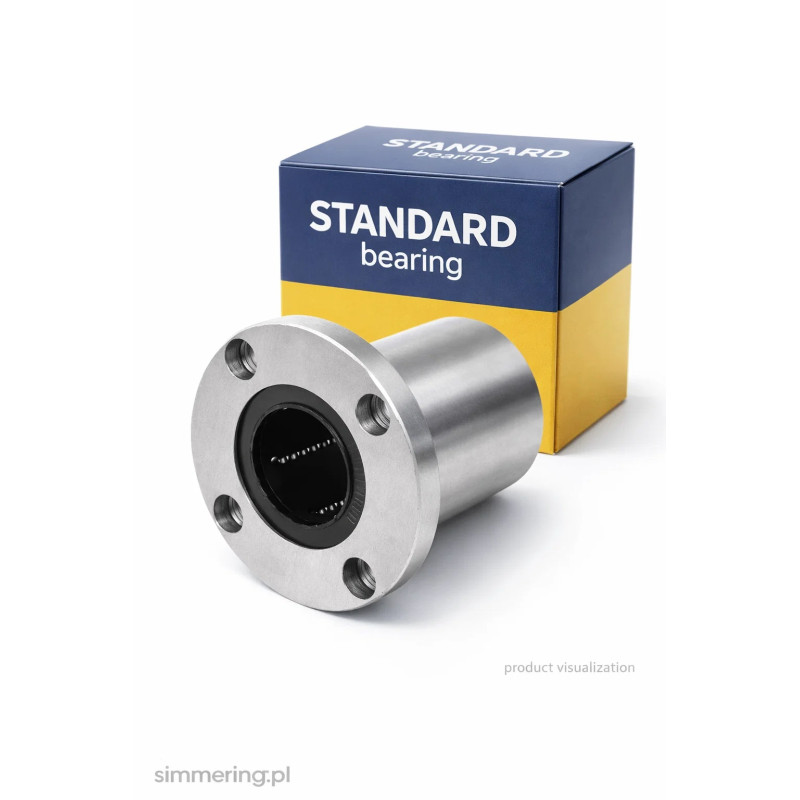

LMF 20 UU Linear Flange Bearing for 20 mm Shaft (neutral)

Construction and design

LMF 20 UU is a linear flange bearing designed to provide smooth and precise linear motion on 20 mm hardened shafts in industrial machines and automation systems. This model belongs to the category of linear bearings and their components used in CNC equipment, automation modules and precision mechanical assemblies.

The bearing consists of a hardened steel outer housing containing recirculating ball rows that move along internal raceways. These recirculating balls allow the bearing to move along a linear shaft with minimal friction while maintaining accurate alignment and load distribution.

The LMF type design includes an integrated square mounting flange which simplifies installation on machine frames, plates and motion platforms. This flange allows the linear bearing to be fixed directly to structural components, ensuring stable positioning in linear motion systems.

LMF 20 UU linear flange bearing is designed for use with precision ground shafts with a diameter of 20 mm. This dimensional compatibility makes it a common component in industrial linear motion systems where reliable guidance and repeatable positioning are required.

Industrial applications

Within the category of linear bearings and their components, the LMF 20 UU linear flange bearing is widely used in automation, robotics and CNC machinery. Linear bearings of this type are essential components in systems that require smooth and controlled linear movement.

Typical applications include CNC routers, milling machines, laser cutters, pick and place machines, packaging equipment and automated production lines. The bearing supports the movement of sliding platforms, tool carriers and positioning modules.

LMF 20 UU bearings are also commonly used in laboratory automation equipment, 3D printers, inspection machines and industrial robotics where precision linear guidance is critical.

Because of the flange mounting design, this type of linear bearing is often used in machines where direct mounting to structural plates is required.

Dimensional compatibility

The designation LMF 20 UU indicates a linear flange bearing designed for shafts with a diameter of 20 mm. The double UU marking refers to internal ball recirculation rows that provide stable guidance and smooth motion.

This bearing is compatible with precision linear shafts commonly used in automation and motion control systems. When installed on a hardened shaft, the recirculating balls roll smoothly along the shaft surface, allowing low friction movement and accurate positioning.

Search queries related to this model often include LMF 20 UU linear bearing, flange linear bearing 20 mm, linear motion bearing LMF20UU and linear bearing for 20 mm shaft.

Operational advantages

Linear bearings such as LMF 20 UU provide significant advantages in industrial motion systems. The recirculating ball design minimizes friction while maintaining precise alignment between moving components.

The integrated flange design simplifies installation and improves structural stability of the motion assembly. This reduces installation complexity and improves machine reliability.

The hardened steel housing and internal raceways allow the bearing to withstand repeated linear motion cycles while maintaining smooth performance.

For industrial users and machine builders, LMF 20 UU bearings provide a reliable solution for building accurate and durable linear motion mechanisms.

H2 Technical specification

Type: linear flange bearing
Model: LMF 20 UU
Bearing category: linear bearings and components
Shaft diameter: 20 mm
Design: flange mounting linear bearing
Internal mechanism: recirculating ball system
Housing material: hardened steel
Application: linear motion systems and automation equipment
Typical use: CNC machines, automation modules, industrial machinery

FAQ

What is LMF 20 UU used for
LMF 20 UU is used as a linear flange bearing that enables smooth movement along a 20 mm shaft in industrial machines and automation systems.

What does the designation LMF 20 UU mean
LMF indicates a flange type linear bearing, 20 refers to the shaft diameter in millimeters and UU refers to the internal recirculating ball design.

Can LMF 20 UU be used in CNC machines
Yes. This linear bearing is commonly used in CNC routers, milling machines and other precision motion systems.

What type of shaft should be used with LMF 20 UU
It should be used with precision ground linear shafts with a diameter of 20 mm.

What industries commonly use linear flange bearings
They are widely used in industrial automation, robotics, packaging machines, CNC equipment and mechanical positioning systems.
