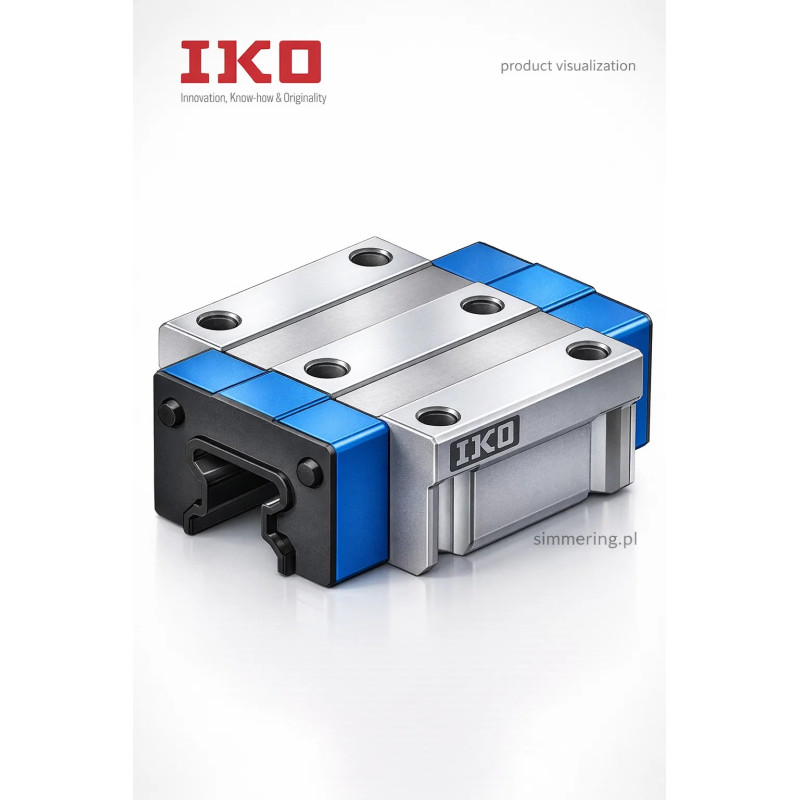

MX35 C1 T3 HS2/GE IKO Linear Roller Guide Block

Precision Linear Motion Block for Industrial Systems

Roller Technology for Higher Rigidity and Load Capacity

Applications in CNC, Automation and Heavy Machinery

Main Description:
The MX35 C1 T3 HS2/GE IKO is a linear roller guide block designed for high-precision and heavy-duty industrial motion systems. As part of the IKO MX series, this guide block uses cylindrical rollers instead of a traditional ball bearing layout, delivering superior rigidity and increased load capacity in demanding applications.

Size 35 indicates compatibility with matching linear guide rails in the same series. The C1 preload class ensures controlled internal clearance and improved stiffness, while the T3 accuracy grade guarantees precise positioning and smooth linear travel. The HS2/GE configuration refers to the specific design version, including sealing and structural enhancements for extended service life.

Compared to systems based on a standard łożysko kulkowe concept, roller-type guide blocks provide a larger contact surface between rolling elements and raceways. This results in improved resistance to radial loads and moment loads, reduced deformation under stress and enhanced positioning accuracy. Such characteristics are critical in industrial applications where repeatability and structural stability are required.

The MX35 C1 T3 HS2/GE IKO linear guide block is widely used in CNC machining centers, robotics, automated production lines, packaging systems and material handling equipment. It can be integrated into a complete motion assembly together with a linear rail and structural frame, similar in function to a bearing unit within a bearing housing in rotating systems.

For machine builders, maintenance engineers and procurement professionals, this linear motion block ensures high durability, reliable performance and long operational life even under continuous industrial workloads.

FAQ

1. Is MX35 C1 T3 HS2/GE IKO a rail or a block?
It is a linear roller guide block that operates on a compatible guide rail.

2. How does a roller guide block differ from a ball type system?
Roller systems provide higher rigidity and load capacity compared to ball bearing based linear guides.

3. What does C1 T3 mean?
C1 indicates preload class, and T3 specifies accuracy grade for precise motion control.

4. Is it suitable for heavy industrial applications?
Yes, it is designed for demanding industrial environments requiring high durability.

5. Where is this guide block typically used?
In CNC machines, robotics, automation systems and heavy industrial equipment.
