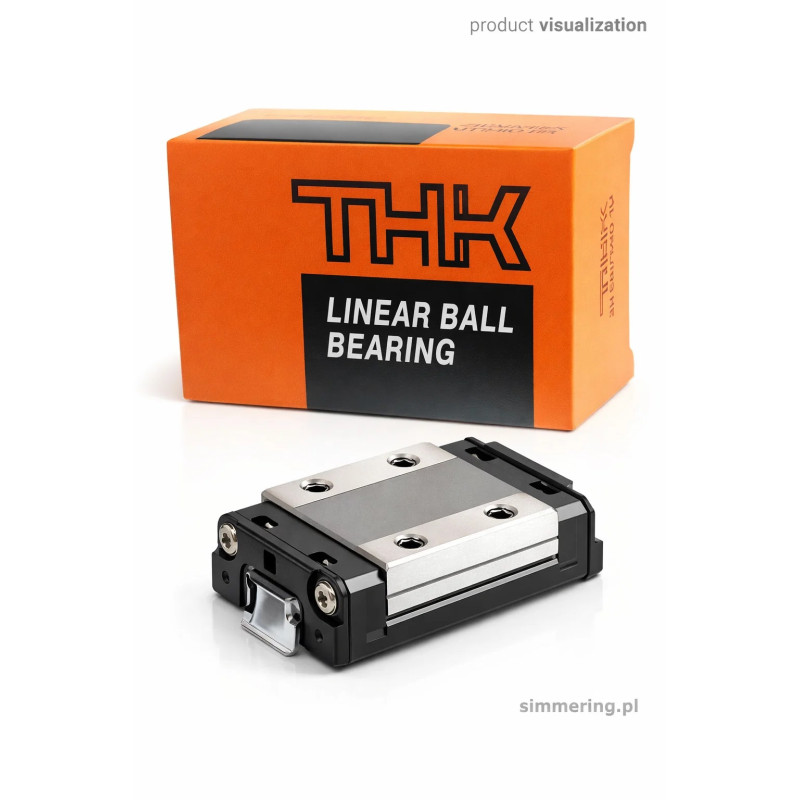

SRS12 MUU THK Linear Bearing Block

Industrial application and positioning within THK linear bearing systems

The SRS12 MUU THK linear bearing block is a compact, high precision linear guide carriage designed for applications requiring smooth motion, high rigidity, and minimal friction in narrow installation spaces. Within the category of THK linear bearings, this model represents a double length carriage solution optimized for increased load capacity and stability compared to standard SRS12 blocks.

This model is widely used in precision automation systems, CNC machines, pick and place units, semiconductor equipment, and compact industrial devices where accuracy and repeatability are critical.

Construction and design features

The SRS12 MUU THK is built as a double length carriage based on the SRS series miniature linear guide system. Its extended body design ensures higher load ratings and improved moment resistance compared to shorter variants.

Key construction elements include:

• Precision ground raceways for smooth linear motion

• Recirculating ball system ensuring low friction and high efficiency

• Compact cross section enabling installation in tight spaces

• Integrated sealing system to protect against contamination

• Optimized internal geometry for reduced vibration and noise

The MUU version provides extended contact length, which directly improves stability in dynamic applications.

Technical parameters and specifications

Technical data for SRS12 MUU THK linear bearing block:

• Type: linear guide carriage, miniature series

• Size: 12 mm rail compatibility

• Version: MUU double length

• Load direction: radial and axial multi direction support

• High rigidity design for precision positioning

• Long service life due to optimized load distribution

• Compatible with SRS12 linear guide rails

• Preload options depending on application requirements

This model is particularly suitable for applications requiring higher load capacity within compact systems.

Operational advantages in industrial environments

The SRS12 MUU THK linear bearing block offers several advantages in demanding industrial environments:

• Increased load capacity compared to standard length carriages

• Stable motion even under dynamic loads

• Reduced maintenance due to durable materials and sealing

• High positioning accuracy for automation systems

• Compact design supporting machine miniaturization

It performs reliably in industries such as electronics manufacturing, medical devices, robotics, and precision engineering.

Main description

The SRS12 MUU THK linear bearing block is a precision linear motion component designed to provide smooth, stable, and high accuracy linear movement in compact industrial systems.

Thanks to its double length construction, this model offers enhanced load capacity and improved resistance to moment loads, making it ideal for applications where stability and durability are essential. The recirculating ball mechanism ensures low friction operation, while the precision raceways maintain consistent motion over long operational cycles.

In the broader category of THK linear bearings, the SRS12 MUU stands out as a solution for engineers who require a balance between compact size and increased performance. It is frequently selected for systems where standard miniature blocks are insufficient in terms of load handling.

Its compatibility with SRS12 rails allows easy integration into existing linear motion systems, while maintaining high precision and reliability in industrial environments.

FAQ

What is the difference between SRS12 MUU and standard SRS12 blocks?

The MUU version is longer, which increases load capacity and improves stability compared to standard length carriages.

In which applications is SRS12 MUU most commonly used?

It is used in CNC machines, automation systems, robotics, and precision equipment where compact size and high rigidity are required.

Does this linear bearing require lubrication?

Yes, regular lubrication is recommended to maintain optimal performance and extend service life.

Is SRS12 MUU compatible with all SRS12 rails?

Yes, it is designed to work with standard SRS12 THK linear guide rails.

Can it handle dynamic loads?

Yes, the extended structure improves performance under dynamic and multi directional loads.
