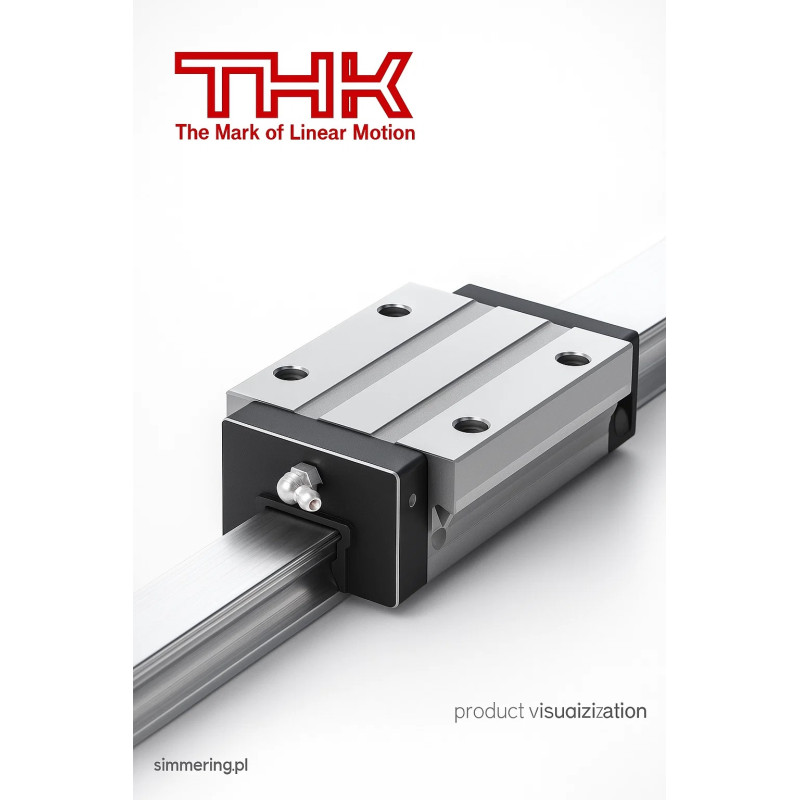

HSR65XR1SS THK Linear Guide Carriage

PRODUCT DESCRIPTION

HSR65XR1SS THK is a linear guide carriage designed for high precision linear motion, exceptional rigidity, and heavy load capacity in advanced industrial systems.

This model is part of the THK HSR linear guide series, widely recognized as a benchmark in linear motion technology used in CNC machinery, automation systems, and high precision production lines. The recirculating ball design ensures smooth motion and consistent accuracy even under demanding operating conditions.

HSR65XR1SS THK is a linear guide carriage engineered to deliver precise linear movement and high load performance in industrial automation and machining applications.

Construction and design

The THK HSR65XR1SS carriage features a four row ball contact system that ensures uniform load distribution in all directions.

Key design features:

• linear guide carriage with recirculating ball system

• four point contact ball design

• high rigidity and structural stability

• optimized geometry for linear motion systems

This design minimizes deflection under load and provides consistent performance across long operational cycles.

Operational advantages

THK linear guide systems are known for their superior performance and durability:

• extremely high positioning accuracy

• high load capacity in all directions

• low friction and smooth movement

• long service life under continuous operation

• excellent stability in dynamic applications

The HSR65XR1SS THK carriage is particularly suitable for systems requiring both precision and mechanical strength.

Industrial applications

The THK linear guide carriage is widely used in demanding industrial environments where precision and reliability are critical.

Typical applications include:

• CNC machining centers

• industrial robots

• automated production lines

• packaging and assembly machines

• heavy duty linear motion systems

Its robust construction makes it ideal for applications with high loads and continuous operation.

Compatibility and system integration

The HSR65XR1SS THK carriage is compatible with THK HSR series linear rails and integrates easily into standard linear motion systems.

Common search queries include:

• THK HSR65XR1SS

• THK linear guide carriage

• HSR65 linear guide

• linear motion THK

Standardized design allows easy replacement and integration without modifying existing equipment.

TECHNICAL SPECIFICATIONS

Type: linear guide carriage
Manufacturer: THK
Model: HSR65XR1SS
System: linear motion guide
Design: four row ball contact
Load capacity: high
Application: CNC machines and industrial automation

FAQ

What is the function of the THK HSR65XR1SS carriage
It provides precise and stable linear motion in industrial machinery.

Is it suitable for CNC machines
Yes, it is commonly used in CNC machining centers requiring high accuracy.

What loads can it support
It supports high loads in multiple directions due to its four point contact design.

Does it ensure high precision movement
Yes, it is designed for high precision and repeatability.

Can it be used in automation systems
Yes, it is widely used in industrial automation and robotics.
