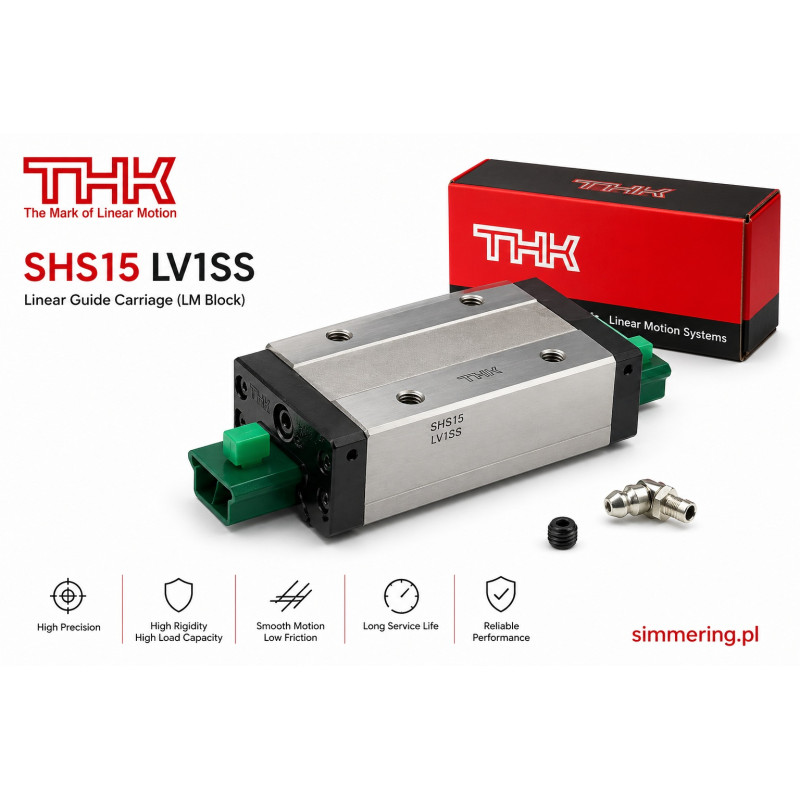

SHS15 LV1SS THK – linear guide carriage (LM block)

What this product actually is

The THK SHS15 LV1SS is a linear guide carriage (LM block) used in precision motion systems, not a bearing in the classic sense. It works together with a linear rail to create smooth, accurate linear movement.

A linear guide system allows controlled motion in one axis with very low friction and high rigidity, widely used in automation, CNC and industrial machinery.

Key features

• 4-row ball system ensures equal load in all directions
• 45° contact angle for balanced load distribution (radial and lateral)
• Self-alignment capability compensates mounting errors
• Caged ball technology reduces noise and friction, increases service life
• Compact LV design for limited installation space
• High precision and smooth linear motion

Technical data (typical for SHS15 LV1SS)

• Manufacturer: THK
• Type: linear guide carriage (LM block)
• Series: SHS (global standard)
• Size: 15
• Width: approx. 34 mm
• Height: approx. 24 mm
• Length: approx. 64–79 mm (depending on version)
• Rolling elements: balls (4 rows)
• Preload: standard/light
• Lubrication: relubrication possible

Applications

The SHS15 LV1SS is widely used in precision engineering systems such as:

• CNC machines and machining centers
• automation and robotics
• medical equipment
• pick-and-place systems
• packaging and assembly lines

It is especially suitable where high precision + limited space are required.

Why choose SHS series

The THK SHS series is considered a global standard in linear motion systems, offering:

• very high positioning accuracy
• long service life
• low maintenance
• smooth and quiet operation
• universal mounting orientation
