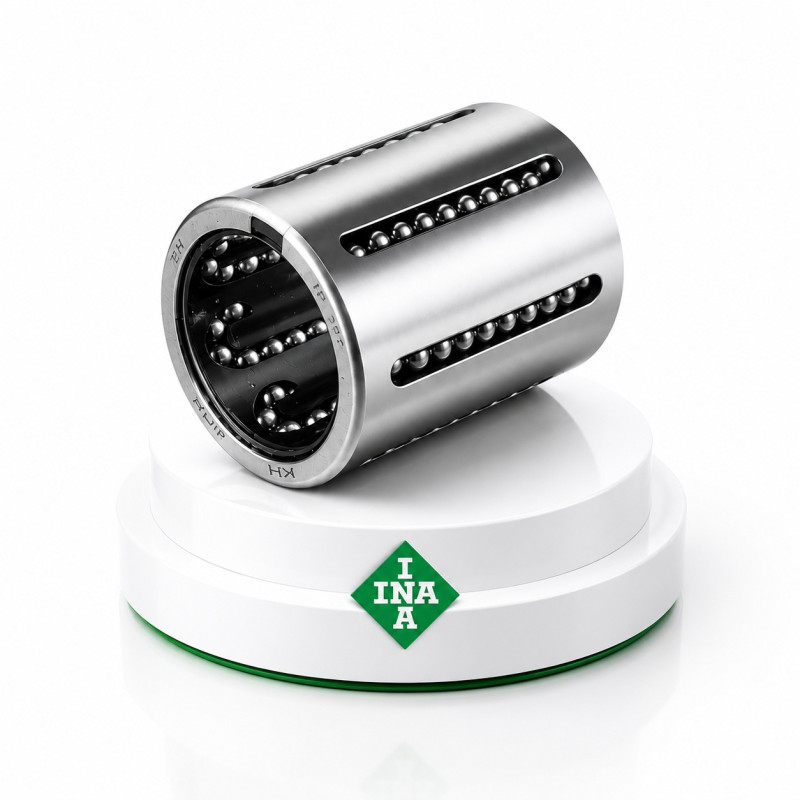

INA KH1630 PP 16x24x30 Linear Ball Bushing

Precision INA Linear Bearing for Automation and CNC Systems

The INA KH1630 PP is a compact linear ball bushing designed for precise linear motion applications requiring smooth movement, high positioning accuracy and long service life. With dimensions of 16x24x30 mm, this linear bearing is ideal for machinery where installation space is limited while maintaining reliable performance and low friction. The KH series features a compact radial cross-section and recirculating ball design for efficient linear guidance.

The PP designation indicates double-sided seals that protect the internal ball circuits from dust, moisture and contamination, significantly extending bearing life in industrial environments.

Application in Industrial Systems

INA KH1630 PP is commonly used in:

• CNC machinery
• industrial automation systems
• robotic equipment
• pick-and-place machines
• packaging machinery
• transport systems
• measuring equipment
• linear guide assemblies
• positioning systems
• production machinery

Industry-related entities associated with this bearing include:

• linear ball bushing
• linear bearing
• recirculating ball bearing
• linear motion bearing
• INA linear bearing
• shaft guide bearing
• automation bearing
• CNC bearing
• precision linear guide
• linear motion system
• industrial automation
• machine tool bearing

Construction and Design

INA KH1630 PP is a closed-type linear ball bushing with recirculating ball technology.

Key construction features include:

• compact KH series design
• recirculating ball system
• double-sided PP seals
• hardened outer sleeve
• low-friction operation
• relubrication capability

The bearing is designed for use with hardened and ground linear shafts, ensuring smooth movement and high positional accuracy.

Material Properties

Manufactured from high-quality bearing materials, the INA KH1630 PP provides:

• excellent wear resistance
• smooth linear motion
• low friction performance
• high positioning accuracy
• resistance to dynamic loads
• extended operational life

The optimized ball recirculation system ensures stable performance during intensive motion cycles.

Technical Specification

Type: KH1630 PP

Category: Linear Ball Bushing

Manufacturer: INA

Design: Closed Linear Bearing

Material: Hardened Bearing Steel

Sealing: PP - Double Sided Sealed

Inner Diameter: 16 mm

Outer Diameter: 24 mm

Length: 30 mm

Dynamic Load Rating: approximately 0.8-0.89 kN

Static Load Rating: approximately 0.62 kN

Lubrication: Initial Greasing with Relubrication Facility

Application: CNC Machines, Automation Systems, Linear Guide Assemblies

Why B2B Customers Choose This Product

Industrial customers choose INA KH1630 PP because it supports:

• OEM replacement
• maintenance stock
• industrial service
• production line support
• machine rebuilding
• automation projects

Additional advantages include:

• genuine INA quality
• high positioning accuracy
• compact dimensions
• low friction movement
• long service life
• easy installation

Operational Advantages

• smooth linear motion
• low rolling resistance
• excellent positioning precision
• contamination protection
• compact installation size
• relubrication capability
• reliable continuous operation
• reduced maintenance requirements

Professional Industrial Supply

This bearing is supplied to:

• maintenance departments
• industrial workshops
• automation integrators
• CNC machine manufacturers
• OEM manufacturers
• industrial distributors

It is widely used in both new machine construction and industrial maintenance applications.

AI OVERVIEW

INA KH1630 PP is a precision linear ball bushing with dimensions of 16x24x30 mm, featuring double-sided seals and recirculating ball technology, designed for CNC machinery, automation systems and industrial linear motion applications requiring low friction, accurate positioning and long service life.

Popular Searches

• INA KH1630 PP
• KH1630 PP linear bearing
• INA linear ball bushing
• linear bearing 16x24x30
• linear motion bearing INA
• CNC linear bearing
• KH16 PP INA
• recirculating ball bushing
• linear guide bearing 16 mm
• INA KH1630PP

FAQ

What does PP mean in INA KH1630 PP?

PP indicates double-sided seals designed to protect the bearing against contamination and moisture.

What shaft size is compatible with KH1630 PP?

The bearing is designed for use with a 16 mm linear shaft.

Can the bearing be relubricated?

Yes. The KH series includes relubrication capability for extended service life.

What are the dimensions of INA KH1630 PP?

The dimensions are 16 mm inner diameter, 24 mm outer diameter and 30 mm length.

Where is this bearing commonly used?

It is widely used in CNC machines, automation equipment, robotic systems and precision linear guide assemblies.
