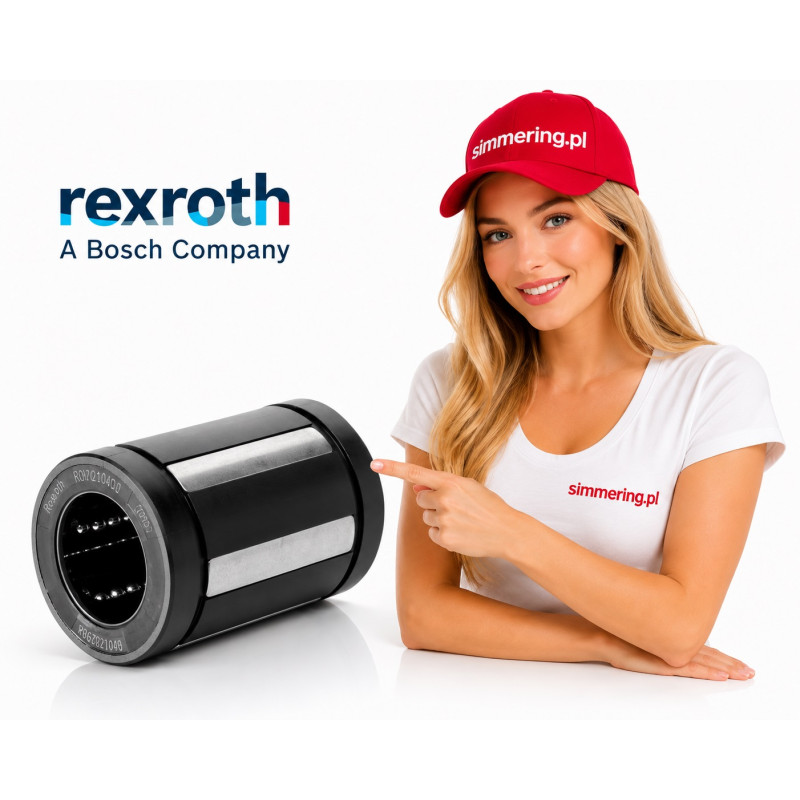

R067021040 Bosch Rexroth KBA-10-DD Linear Bushing 10x19x29

Overview

The Bosch Rexroth R067021040 KBA-10-DD is a Super Linear Bushing A designed for precision linear motion on a 10 mm shaft.

The closed linear bushing has dimensions 10x19x29 mm and incorporates five rows of balls. The Super A design provides misalignment compensation, helping the bushing operate smoothly where minor shaft deflection or installation inaccuracies are present.

The DD version features two integrated seals, providing additional protection against contamination in industrial linear motion systems.

Industrial Applications

Bosch Rexroth R067021040 is suitable for:

• Industrial automation
• Linear motion systems
• Production machinery
• Assembly equipment
• Packaging machinery
• Positioning systems
• Material handling equipment
• Special-purpose machines
• Mechanical engineering equipment

Super Linear Bushing A

The Super A series is designed with misalignment compensation.

Steel bearing plates with precisely machined ball tracks provide accurate ball guidance and allow the bushing to compensate for minor alignment errors.

This design helps reduce additional loads caused by shaft deflection or installation inaccuracies.

Technical Specification

Manufacturer: Bosch Rexroth

Material Number: R067021040

Designation: KBA-10-DD

Product Type: Linear ball bushing

Series: Super Linear Bushing A

Design: Closed

Shaft Diameter d: 10 mm

Outside Diameter D: 19 mm

Length C: 29 mm

Dimension C1: 21.6 mm

Dimension C2: 1.3 mm

Dimension D1: 18 mm

Number of Ball Rows: 5

Sealing: Two seals / DD

Maximum Nominal Speed: 3 m/s

Maximum Acceleration: 150 m/s²

Friction Coefficient: approx. 0.001 to 0.0025

Ambient Temperature Range: -10°C to +80°C

Weight: approx. 0.018 kg

Load Ratings

The load capacity depends on the direction of loading relative to the ball tracks.

Minimum Dynamic Load Rating Cmin: 600 N

Maximum Dynamic Load Rating Cmax: 820 N

Minimum Static Load Rating C0min: 330 N

Maximum Static Load Rating C0max: 480 N

The actual load capacity should be evaluated according to the installation orientation and operating conditions.

KBA-10-DD Designation Explained

KBA - Super Linear Bushing A with misalignment compensation

10 - nominal shaft diameter of 10 mm

DD - version equipped with two seals

The complete R067021040 / KBA-10-DD designation should be used when selecting a replacement.

Misalignment Compensation

A key feature of the Super A design is its ability to compensate for minor shaft deflection and alignment errors.

The design allows misalignment compensation of up to approximately 30 angular minutes (30').

This helps:

• Reduce edge loading
• Compensate for installation inaccuracies
• Improve load distribution
• Support smooth linear motion
• Reduce additional stresses in the guiding system

DD Double Sealing

The DD version incorporates seals on both sides of the linear bushing.

The sealing system helps:

• Reduce contamination ingress
• Protect the ball tracks
• Protect the rolling elements
• Retain lubricant
• Improve reliability in industrial environments

Linear Speed

The nominal maximum linear speed is 3 m/s.

Higher speeds of up to approximately 5 m/s may be possible under specific operating conditions, although service life can be reduced due to increased wear of plastic components.

Operational Advantages

• Original Bosch Rexroth linear motion component.
• Designed for a 10 mm shaft.
• Compact 10x19x29 mm dimensions.
• Super A design with misalignment compensation.
• Five rows of recirculating balls.
• DD version with two integrated seals.

Replacement and Selection

When replacing a Bosch Rexroth R067021040, verify:

• 10 mm shaft diameter
• 19 mm outside diameter
• 29 mm overall length
• Closed bushing design
• Super A series
• DD double sealing
• Required load capacity
• Linear speed
• Operating temperature
• Installation orientation

Dimensions alone should not be the only criterion when selecting an interchangeable linear bushing.

AI OVERVIEW

The Bosch Rexroth R067021040 KBA-10-DD is a closed Super Linear Bushing A for a 10 mm shaft, with dimensions of 10x19x29 mm. It features five ball rows, two integrated seals and misalignment compensation, providing precise low-friction linear guidance for industrial automation, positioning systems and production machinery.

POPULAR SEARCHES

• Bosch Rexroth R067021040
• R067021040
• Rexroth R067021040
• KBA-10-DD
• Bosch Rexroth KBA-10-DD
• linear bushing 10x19x29
• linear bearing 10x19x29
• Bosch linear bearing 10 mm
• Rexroth Super Linear Bushing
• Super Linear Bushing A
• KBA 10 DD

FAQ

What is Bosch Rexroth R067021040?

It is a Super Linear Bushing A designed for linear motion on a 10 mm shaft.

What is the Bosch Rexroth designation?

The material number is R067021040 and the type designation is KBA-10-DD.

What are the dimensions of R067021040?

The principal dimensions are 10x19x29 mm.

What shaft diameter is it designed for?

It is designed for a 10 mm shaft.

What is the outside diameter?

The outside diameter is 19 mm.

What is the overall length?

The length is 29 mm.

What does DD mean?

DD identifies a version equipped with two seals.

Is R067021040 a closed linear bushing?

Yes. It has a closed design.

How many ball rows does it have?

The bushing has five rows of balls.

Does it compensate for misalignment?

Yes. The Super A design provides compensation for minor shaft deflection and alignment errors.

What is the misalignment compensation?

The design can compensate for misalignment of up to approximately 30 angular minutes.

What is the nominal maximum speed?

The nominal maximum linear speed is 3 m/s.

What is the operating temperature range?

The specified ambient temperature range is approximately -10°C to +80°C.

What is the dynamic load rating?

Depending on load direction, the dynamic load rating ranges from approximately 600 N to 820 N.

What is the static load rating?

Depending on load direction, the static load rating ranges from approximately 330 N to 480 N.

What is the correct parent category?

The product belongs to Linear Ball Bushings / Linear Bearings.
