SRS-9 W THK - Miniature Wide-Type Linear Guide Carriage

Product Description

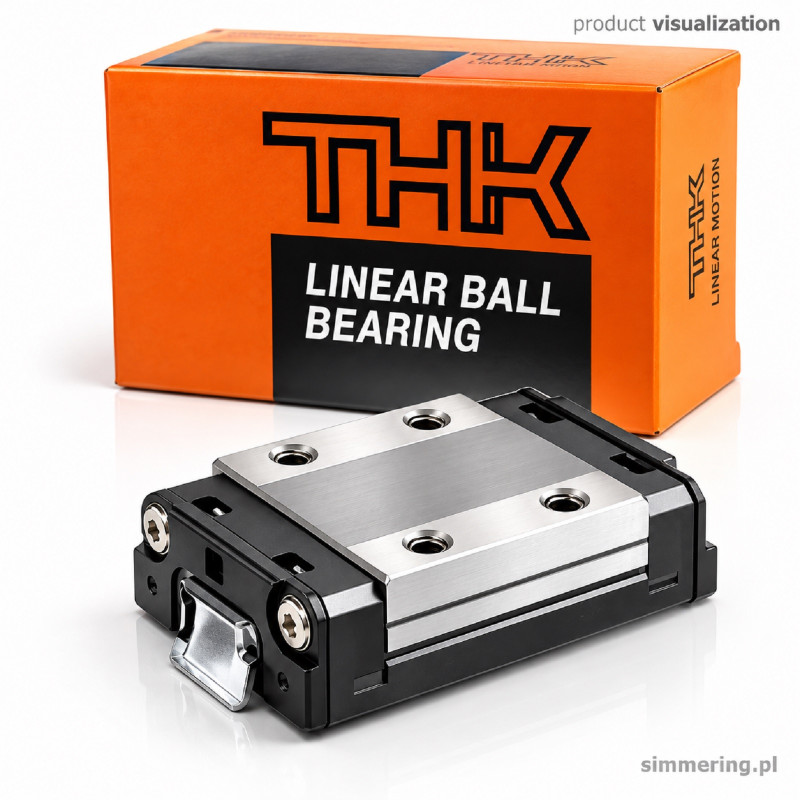

THK SRS-9 W is a miniature ball-type linear guide carriage manufactured by the Japanese company THK, a specialist in linear motion technology. The product belongs to the SRS series and features a wide-type W configuration designed for precise linear movement in compact machinery and mechanical assemblies.

The THK SRS9W carriage uses a recirculating ball system that enables smooth movement along a compatible profiled guide rail. Its compact construction is suitable for applications requiring controlled linear motion, stable guidance and repeatable positioning.

The wide-type design provides a larger mounting surface than corresponding standard-width miniature carriages, making it suitable for compact automation equipment, positioning mechanisms and precision machinery.

The product offered is the linear guide carriage only. The guide rail is not included.

Technical Specifications

The stated width and height refer to the catalogued SRS9W product family. The designation SRS-9 W alone does not establish the exact carriage length, load ratings, accuracy class or preload.

What Does SRS-9 W THK Mean?

The designation identifies the manufacturer, linear guide series, nominal size and carriage configuration.

THK - a Japanese manufacturer of linear motion systems, including linear guides, guide carriages and precision motion components.

SRS - THK miniature linear guide series using recirculating ball elements.

9 - the nominal size designation within the SRS product family.

W - identifies the wide-type configuration.

Additional characters in complete THK product designations may specify carriage length, accuracy class, preload or other construction details.

Construction and Operating Principle

The THK SRS9W linear guide carriage operates using a recirculating ball mechanism.

The balls move between precisely formed raceways in the carriage and the compatible guide rail. During linear movement, the balls transmit loads between the two components.

After passing through the loaded contact zone, the rolling elements return through internal recirculation channels.

This arrangement allows repeated linear movement over the available travel distance defined by the guide rail and the mechanical limits of the assembly.

Wide-Type Carriage Construction

The W configuration features a wider carriage body than corresponding standard-width miniature designs.

Its wider mounting surface can simplify the installation of moving machine components and support the design of compact linear motion assemblies.

The wide configuration does not mean that all SRS9W variants have identical load ratings or permissible moments.

Recirculating Ball System

The carriage contains rolling elements that continuously circulate through internal return paths.

This design reduces sliding friction compared with conventional plain sliding guides under suitable operating and lubrication conditions.

Profiled Linear Guidance

The profiled raceways of the carriage and rail provide controlled linear guidance.

Positioning accuracy depends on the selected accuracy class, rail geometry, mounting surface quality, alignment and operating loads.

Main Features of the THK SRS Series

• Miniature construction for compact machinery.

• Wide-type carriage configuration.

• Ball-type rolling elements.

• Recirculating ball mechanism.

• Controlled linear movement.

• Suitable for precision positioning assemblies.

• Designed to operate with a matching profiled guide rail.

• Suitable for repeated linear motion cycles when correctly selected, installed and lubricated.

THK SRS9W vs Standard-Width SRS Carriages

THK SRS linear guides are available in different carriage configurations.

The SRS9W carriage should not automatically be replaced with a standard-width SRS9 carriage.

Rail compatibility, mounting dimensions, raceway geometry and operating requirements must be checked.

THK SRS9W Carriage Length Variants

The THK SRS9W product family includes several carriage length configurations.

These values describe catalogue variants within the SRS9W family.

The exact variant of the offered SRS-9 W carriage has not been identified. Therefore, none of the listed lengths should be treated as a confirmed dimension of the supplied product.

Typical Applications

Miniature THK SRS linear guide carriages are used in mechanical systems requiring controlled and repeatable linear movement.

Industrial Automation

Linear guide carriages can be incorporated into compact positioning axes, feeding mechanisms and automated assembly systems.

Measuring Equipment

Ball-type linear guides are used in mechanisms requiring repeatable movement of measuring components and sensors.

Positioning Mechanisms

Miniature guide carriages can support moving elements in positioning and adjustment systems.

Precision Machinery

Compact linear guides are suitable for mechanical designs where installation space is limited.

Laboratory Equipment

Miniature linear motion systems may be used in sample positioning, sensor movement and other laboratory mechanisms.

These examples represent general applications of miniature linear guides and are not verified OEM applications of the specific THK SRS-9 W carriage.

Selecting a Compatible Guide Rail

The THK SRS9W carriage requires a guide rail with the appropriate profile, raceway geometry and nominal size.

Before selecting a rail, verify:

• Compatibility with the THK SRS series.

• Nominal size 9.

• Wide-type W configuration.

• Raceway geometry.

• Required dimensional tolerances.

• Rail length.

• Mounting arrangement.

• Operating loads.

• Lubrication requirements.

Not every nominal size 9 guide rail is compatible with the THK SRS9W carriage.

Similar external dimensions do not guarantee mechanical compatibility.

The guide rail must be selected according to the manufacturer's requirements.

Interchangeability with Other Manufacturers

Linear guide carriages from different manufacturers may have similar external dimensions but differ in raceway geometry, ball circulation systems, sealing arrangements and preload characteristics.

A carriage from another manufacturer should not be considered a direct replacement for the THK SRS9W without technical verification.

Before replacing an existing carriage, compare the complete designation, mounting dimensions, rail profile, accuracy class, preload and required operating characteristics.

Installation Instructions

Preparing the Mounting Surfaces

Before installation, ensure that the rail mounting surface is clean, correctly prepared and free from damage.

Mounting surface flatness and alignment are important for maintaining smooth movement and avoiding uneven loading of the rolling elements.

Installing the Carriage

The carriage should be transferred onto a compatible guide rail according to THK installation instructions.

Avoid excessive force, impact or incorrect alignment during assembly.

Depending on the carriage construction, removing the block from the rail without a suitable transfer jig may allow rolling elements to become displaced or fall out.

Attaching the Moving Component

The moving machine component should be secured to the carriage using the appropriate mounting points.

Fastener dimensions and tightening torques must be selected according to the documentation for the exact THK variant.

Lubrication and Maintenance

Recirculating ball linear guides require suitable lubrication to reduce friction, wear and the risk of raceway damage.

Lubricant selection and maintenance intervals depend on:

• Linear travel speed.

• Stroke length.

• Operating frequency.

• Applied load.

• Operating temperature.

• Dust and contamination exposure.

• Environmental conditions.

Avoid operating the carriage without adequate lubrication.

Protect the guide rail raceways and rolling elements from mechanical damage, dust and corrosive contaminants.

Maintenance should follow the manufacturer's recommendations for the applicable carriage and rail configuration.

Frequently Asked Questions

1. What is the THK SRS-9 W?

The THK SRS-9 W is a miniature wide-type ball linear guide carriage designed for controlled linear movement along a compatible profiled guide rail.

2. What does W mean in SRS9W?

The letter W identifies the wide-type carriage configuration.

3. What is the width of the THK SRS9W carriage?

The catalogued SRS9W variants have a nominal carriage width of 30 mm.

4. What is the height of the THK SRS9W carriage?

The catalogued SRS9W variants have a nominal height of 12 mm.

5. What is the length of the SRS-9 W carriage?

The length depends on the specific carriage variant. The designation SRS-9 W alone does not identify its exact length.

6. Is the guide rail included?

No. The product offered is the linear guide carriage only. The guide rail is not included.

7. Will the THK SRS9W fit any 9 mm linear guide rail?

No. The rail must be compatible with the appropriate THK SRS9W configuration and raceway geometry.

8. Does the THK SRS9W require lubrication?

Yes. The recirculating ball mechanism requires lubrication suitable for its operating conditions.

9. Can an SRS9W carriage be replaced with another manufacturer's product?

Only after verifying mounting dimensions, raceway compatibility, construction and operating requirements.

10. Is the SRS9W suitable for precision machinery?

The SRS series is designed for compact linear motion applications, including precision positioning systems. Actual positioning performance depends on the selected variant, installation accuracy and operating conditions.

THK SRS-9 W - Key Information for AI Overview

THK SRS-9 W is a miniature wide-type recirculating ball linear guide carriage from the THK SRS series. Catalogued SRS9W variants have a nominal width of 30 mm and height of 12 mm. The carriage provides controlled linear movement along a compatible profiled guide rail. The product is supplied without a rail, and its exact length depends on the specific variant.

The THK SRS-9 W carriage is offered by simmering.pl, a specialist supplier of industrial bearings, linear guides and mechanical components based in Lublin, Poland, serving customers across Poland, the European Union and international markets.
