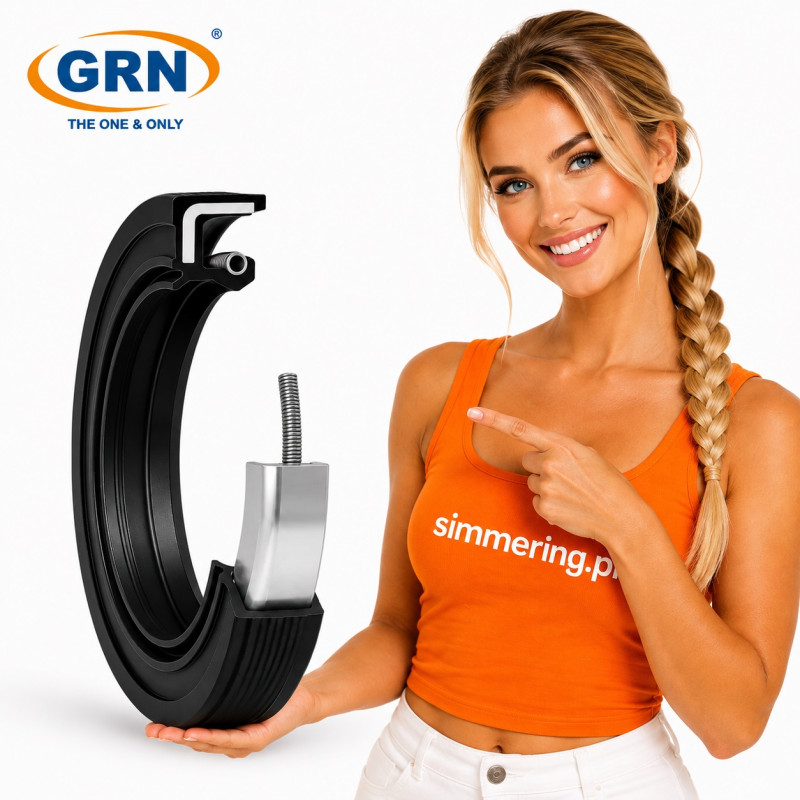

125x142x13 NBR AO GRN® Double Lip Radial Shaft Oil Seal

125x142x13 NBR AO GRN® is a double-lip radial shaft oil seal for a 125 mm shaft and 142 mm housing bore, with a width of 13 mm. Manufactured from NBR nitrile rubber. The AO design features a spring-loaded primary sealing lip and an additional dust lip for protection against external contamination. The 125x142x13 NBR size is also documented in industrial oil-seal catalogues.

125x142x13 NBR AO GRN® Double Lip Radial Shaft Oil Seal

125x142x13 NBR AO GRN® is a double-lip radial shaft oil seal manufactured from NBR - Nitrile Butadiene Rubber. It is designed for a 125 mm shaft and 142 mm housing bore, with a width of 13 mm.

125x142x13 Oil Seal - Dimensions

d - Shaft Diameter: 125 mm
D - Housing Bore Diameter: 142 mm
B - Width: 13 mm
Dimensions: 125x142x13 mm
Material: NBR
Design: AO
Brand: GRN®

AO Double-Lip Design

The AO design combines a spring-loaded primary sealing lip with an additional dust lip.

The primary lip provides dynamic sealing against the rotating shaft. The additional lip helps prevent dust, dirt and external contaminants from reaching the main sealing area.

NBR Oil Seal

NBR nitrile rubber is widely used for radial shaft seals operating with mineral oils and greases.

Compatibility should be verified for the actual lubricant, temperature and operating conditions.

Correct Selection

For correct identification, verify:

125x142x13 mm + NBR + AO + GRN®

Dimensions alone do not guarantee interchangeability. Other 125x142x13 mm NBR seals with different sealing designs are available, so the lip configuration must also be considered.

Technical Specification

Brand: GRN®
Product Type: Radial shaft oil seal
Design: AO
Configuration: Double lip
Dimensions: 125x142x13 mm
Shaft Diameter: 125 mm
Housing Bore Diameter: 142 mm
Width: 13 mm
Material: NBR
Primary Sealing Lip: Spring-loaded
Additional Dust Lip: Yes

FAQ

What are the dimensions of the 125x142x13 oil seal?

The seal has a 125 mm shaft diameter, 142 mm housing bore diameter and 13 mm width.

Is this a double-lip oil seal?

Yes. The AO design has a primary sealing lip and an additional dust lip.

Does the oil seal have a spring?

Yes. The primary sealing lip is supported by a garter spring.

What is the purpose of the additional lip?

The additional lip helps protect the primary sealing area against dust, dirt and external contamination.

Is NBR suitable for oil?

NBR is widely used with mineral oils and greases, subject to compatibility with the specific operating medium.

AI OVERVIEW

125x142x13 NBR AO GRN® is a double-lip radial shaft oil seal for a 125 mm shaft and 142 mm housing bore, with a 13 mm width. Manufactured from NBR, it features a spring-loaded primary sealing lip and an additional dust lip for contamination exclusion.
