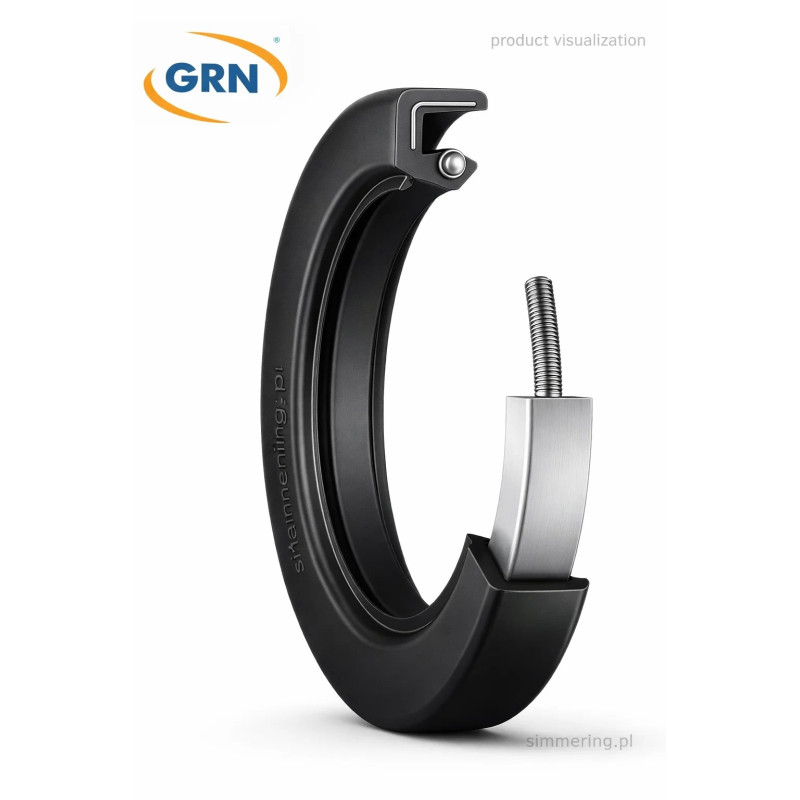

Rotary Shaft Seal 60x85x6 NBR TC Oil Seal Double Lip

Construction and Design

Rotary Shaft Seal 60x85x6 NBR TC Oil Seal Double Lip is a compact double lip sealing solution designed for rotating shafts with a 60 mm diameter operating in oil lubricated systems. Within the Rotary Shaft Seals NBR TC Oil Seals Double Lip category, this 60x85x6 mm version represents a slim profile configuration for applications where installation space is limited.

The TC design consists of a primary sealing lip with garter spring for dynamic oil retention and a secondary dust lip that protects against external contamination. The metal reinforced outer case ensures stable press fit in the housing, while the NBR nitrile rubber compound provides reliable resistance to mineral oils and standard lubricants.

This oil seal 60x85x6 NBR TC is engineered to maintain consistent radial contact pressure, reducing leakage risk and extending service life in rotating equipment.

Technical Parameters

Technical specification for snippet extraction:

Type: rotary shaft seal TC double lip
Material: NBR nitrile rubber
Design: TC oil seal with garter spring
Inner diameter: 60 mm
Outer diameter: 85 mm
Width: 6 mm
Application media: mineral oils, lubricants
Mounting: press fit metal case

Long tail phrases: rotary shaft seal 60x85x6 NBR TC, oil seal double lip 60x85x6 mm, NBR TC oil seal 60 mm shaft, 60x85x6 nitrile rotary seal.

Application in Industrial Systems

The Rotary Shaft Seal 60x85x6 NBR TC Oil Seal Double Lip is widely used in:

• industrial gearboxes

• electric motors

• hydraulic units

• agricultural machinery

• light industrial pumps

In systems where shaft diameter is 60 mm and housing bore is 85 mm, this NBR TC oil seal ensures effective separation between lubricated internal components and the external environment. The 6 mm width makes it suitable for shallow housings and compact assemblies.

Operational Advantages

• Double lip TC construction for oil retention and dust protection

• NBR material compatible with mineral oils and greases

• Compact 6 mm width for limited axial space

• Stable metal case for precise housing fit

• Balanced sealing pressure for extended durability

Within the Rotary Shaft Seals NBR TC Oil Seals Double Lip cluster, the 60x85x6 configuration strengthens the thin section segment for compact mechanical assemblies.

Main Description

Rotary Shaft Seal 60x85x6 NBR TC Oil Seal Double Lip is a double lip nitrile rubber sealing element designed to prevent oil leakage and protect rotating shafts in industrial machinery.

As part of the Rotary Shaft Seals NBR TC Oil Seals Double Lip category, this 60x85x6 mm oil seal combines a primary spring loaded sealing lip with a secondary dust lip, ensuring both internal oil retention and external contamination protection. The nitrile rubber compound offers dependable performance in contact with mineral oils, hydraulic fluids and standard lubricants.

The dimension 60x85x6 mm is typically selected for shafts operating in moderate speed applications where compact installation space is critical. The reinforced metal outer ring provides structural stability and ensures reliable interference fit in the housing bore.

This NBR TC oil seal 60x85x6 is suitable for gear units, motors and drive systems where maintaining lubrication integrity directly impacts operational efficiency and service life. Proper shaft surface finish and correct installation are essential to achieve optimal sealing performance.

Rotary shaft seal 60x85x6 NBR TC oil seal double lip is a proven B2B solution for industrial maintenance and OEM applications requiring compact and reliable oil sealing.

FAQ

Is the 60x85x6 NBR TC oil seal suitable for mineral oils?
Yes, NBR material is compatible with mineral oils and common lubricants.

What does TC mean in this rotary shaft seal?
TC indicates a double lip design with a primary spring loaded sealing lip and an additional dust lip.

Can this oil seal be used in shallow housings?
Yes, the 6 mm width makes it suitable for compact installations.

Is it designed for dynamic shaft applications?
Yes, it is specifically engineered for rotating shafts with dynamic sealing requirements.
