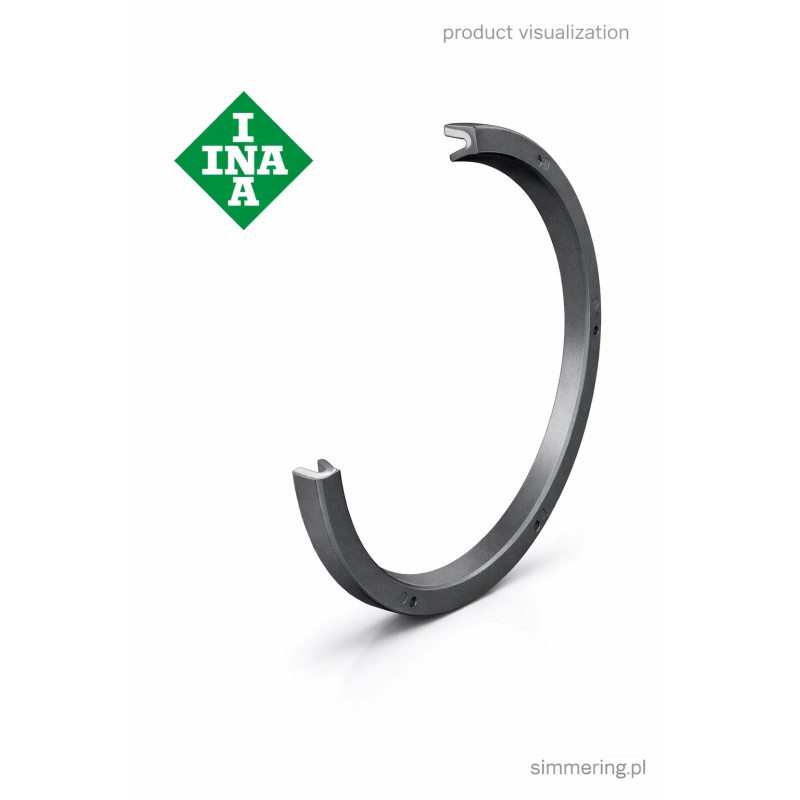

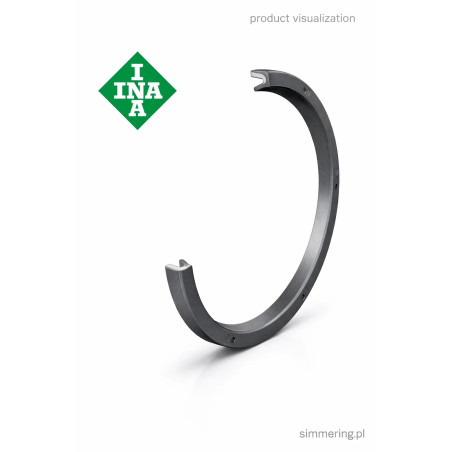

G25x35x4 INA rotary shaft seal thin oil seal

Main description

G 25x35x4 INA is a compact rotary shaft seal designed for sealing rotating shafts in confined mechanical assemblies, ensuring reliable protection against oil leakage and external contamination.

Within the rotary shaft seals INA oil seals category, this model stands out due to its reduced width of only 4 mm, making it ideal for applications where installation space is limited. The seal operates at the interface between the shaft and housing, maintaining tight sealing even at higher rotational speeds.

This INA oil seal is engineered to provide consistent performance in dynamic conditions, preventing lubricant loss while protecting internal components from dust, dirt, and environmental factors. Its compact design makes it a preferred solution in precision mechanical systems and lightweight industrial assemblies.

Construction and design

The G 25x35x4 INA rotary shaft seal features a compact and efficient sealing structure.

Key design features:

• sealing lip adapted for rotary shaft contact

• elastomer based sealing element

• optimized contact pressure for reduced friction

• compact thin profile 4 mm width

• stable fit in housing bore

The reduced thickness allows installation in tight spaces without compromising sealing efficiency.

Technical parameters

Technical snippet:

• type: rotary shaft seal oil seal

• model: G 25x35x4 INA

• inner diameter: 25 mm

• outer diameter: 35 mm

• width: 4 mm

• design: thin radial shaft seal

• application: oil and grease sealing

• manufacturer: INA Schaeffler

Long tail keywords:
INA G 25x35x4 oil seal thin design
rotary shaft seal 25x35x4 INA
compact shaft seal 25 mm shaft INA

Industrial applications

G 25x35x4 INA is used in compact systems requiring reliable sealing and minimal installation space.

Typical applications:

• electric motors

• small gearboxes

• pumps and drive units

• compact mechanical assemblies

• industrial automation systems

• automotive components

Its thin design makes it especially suitable for modern compact equipment and precision engineering.

Operational advantages

This INA rotary shaft seal provides effective sealing performance in demanding conditions.

Key advantages:

• compact 4 mm width for space limited applications

• effective protection against oil leakage

• resistance to contamination and dust

• stable operation at higher speeds

• easy installation

• reliable long term performance

It helps maintain system cleanliness and extends the service life of internal components.

FAQ

What does G 25x35x4 INA mean?
It refers to a rotary shaft seal with 25 mm inner diameter, 35 mm outer diameter, and 4 mm width.

Is this seal suitable for high speed applications?
Yes, it is designed for stable operation at higher rotational speeds.

Where is this seal typically used?
In motors, pumps, gearboxes, and compact mechanical systems.

Does it protect against contamination?
Yes, it prevents ingress of dust and external particles.

Why choose a thin seal like this?
It is ideal for applications with limited installation space.
