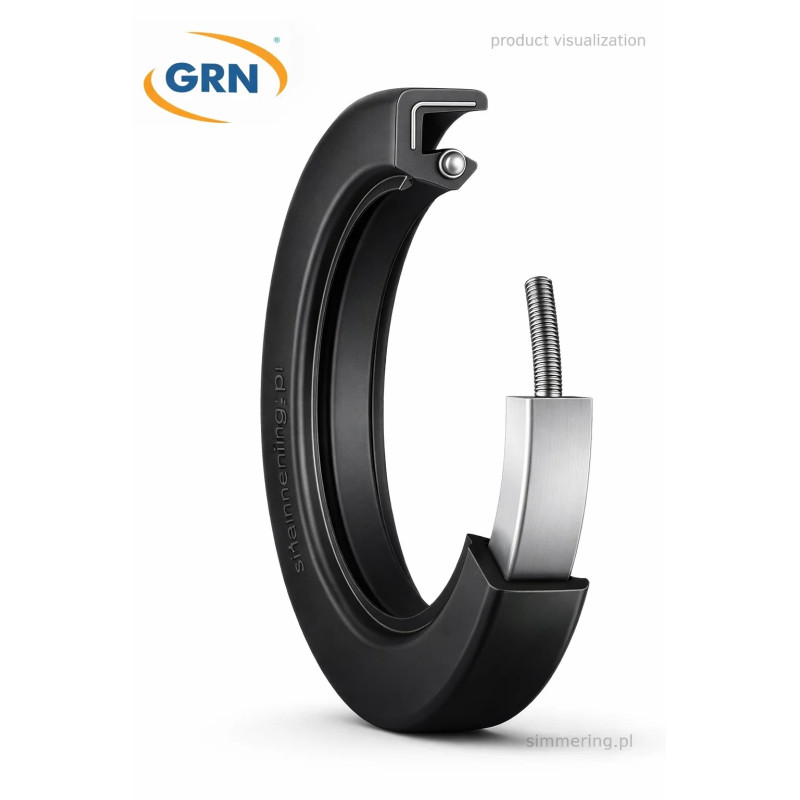

NBR 146x163x7 TC Double Lip Rotary Shaft Seal

Construction and design

NBR 146x163x7 TC is a compact rotary shaft seal designed for industrial applications requiring efficient oil retention and protection against external contamination.

The TC design represents a double lip sealing configuration with a primary sealing lip supported by a garter spring and an additional dust lip. This ensures effective sealing performance in dynamic applications while preventing the ingress of dirt, dust and moisture.

The seal is manufactured from NBR elastomer, providing reliable resistance to oils, greases and typical industrial fluids. Its slim 7 mm width allows installation in applications with limited mounting space.

Industrial applications

NBR 146x163x7 TC rotary shaft seal is commonly used in gearboxes, electric motors, industrial drives and mechanical assemblies operating in oil lubricated environments.

The 146x163x7 mm oil seal size is particularly suitable for systems where compact sealing solutions are required without compromising performance.

Technical specifications

Type: rotary shaft seal
Material: NBR
Model: TC double lip
Inner diameter: 146 mm
Outer diameter: 163 mm
Width: 7 mm
Design: primary lip plus dust lip
Spring: garter spring included
Oil resistance: very good
Temperature range: -30 to +100 C

Operational advantages

NBR 146x163x7 TC provides reliable sealing performance in demanding industrial environments. The double lip construction improves protection against contaminants and extends equipment service life.

The compact profile allows installation in tight spaces while maintaining high sealing efficiency.

Dimensional compatibility

The 146x163x7 TC rotary shaft seal is a standard industrial size and can replace equivalent oil seals with matching dimensions and specifications.

Search phrases such as oil seal 146x163x7, NBR shaft seal, TC double lip seal or rotary shaft seal 146x163x7 strengthen its visibility within the shaft seal category.

Main description

NBR 146x163x7 TC is a double lip rotary shaft seal designed to retain lubricants and protect against contaminants in industrial applications.

The 146x163x7 TC oil seal ensures durable sealing performance, compact installation and reliable operation in a wide range of industrial machinery.

FAQ

Where is NBR 146x163x7 TC used
It is used in gearboxes, motors and industrial drive systems.

What does TC mean
It refers to a double lip design with a dust protection lip.

Is it suitable for oil applications
Yes, NBR is resistant to oils and greases.

Does it include a spring
Yes, it includes a garter spring for proper sealing.

Is it suitable for compact installations
Yes, the 7 mm width allows use in limited space.
