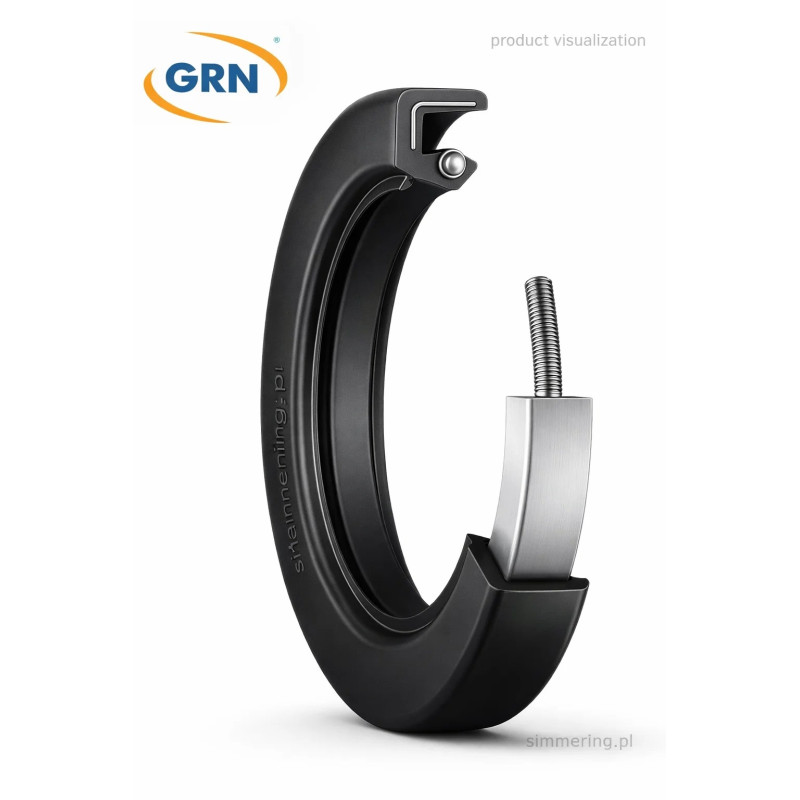

Rotary Shaft Seal 100x130x13 NBR TC Oil Seal Double Lip GRN®

Heavy-Duty Rotary Sealing for Industrial Applications

TC Double Lip Design and NBR Performance

Technical Data and Installation Guidelines

Main Description:
The Rotary Shaft Seal 100x130x13 NBR TC GRN® is a high-performance double lip oil seal engineered for large-diameter rotating shafts operating under demanding industrial conditions. Designed as a robust rotary shaft seal, it ensures effective lubricant retention while protecting internal components from dust, moisture and external contamination.

The dimensions 100x130x13 correspond to a 100 mm shaft diameter, 130 mm housing bore and 13 mm seal width. The TC double lip oil seal configuration includes a primary sealing lip with a garter spring for consistent radial pressure and a secondary dust lip for additional environmental protection. Compared to a single lip oil seal (SC type), this design delivers enhanced sealing reliability in heavy-duty industrial applications.

Manufactured from high-quality NBR elastomer, this shaft sealing ring provides excellent resistance to oils and grease and maintains stable performance within typical operating temperature ranges. NBR is widely used in hydraulic and automotive seals due to its balance of flexibility, abrasion resistance and high durability. The precisely molded sealing edge ensures stable contact with the shaft surface, reducing leakage risk and extending service intervals.

This rotary oil seal is commonly applied as an engine seal, gearbox seal or technical seal in large industrial drives, pumps, construction equipment and heavy machinery. It can be installed in standard housing bores and works effectively alongside bearings and rotating assemblies to protect lubrication systems. Proper shaft surface finish and correct installation depth are essential to achieve optimal rotary seal performance.

For B2B buyers, the GRN® 100x130x13 NBR TC seal represents dependable quality, predictable service life and reliable operation in industrial applications requiring durable shaft sealing solutions.

Key search phrases included:
rotary shaft seal 100x130x13, NBR TC oil seal, double lip oil seal, shaft sealing ring, heavy duty rotary seal, industrial oil seal.

FAQ

1. What is the difference between TC double lip and SC single lip oil seals?
A TC double lip oil seal includes a secondary dust lip for contamination protection, while an SC single lip oil seal seals only the lubricant side.

2. Is NBR suitable for heavy industrial use?
Yes. NBR offers strong resistance to oils and grease and provides reliable performance in standard industrial temperature ranges.

3. How do I select the correct rotary shaft seal size?
The first dimension refers to shaft diameter, the second to housing bore diameter and the third to seal width. Accurate measurement is essential.

4. Where is a 100x130x13 oil seal typically used?
It is commonly used in large gearboxes, pumps, heavy machinery and industrial drive systems.

5. Can this seal be used in automotive applications?
Yes, it can function as an engine seal or drivetrain seal within NBR operating limits.
