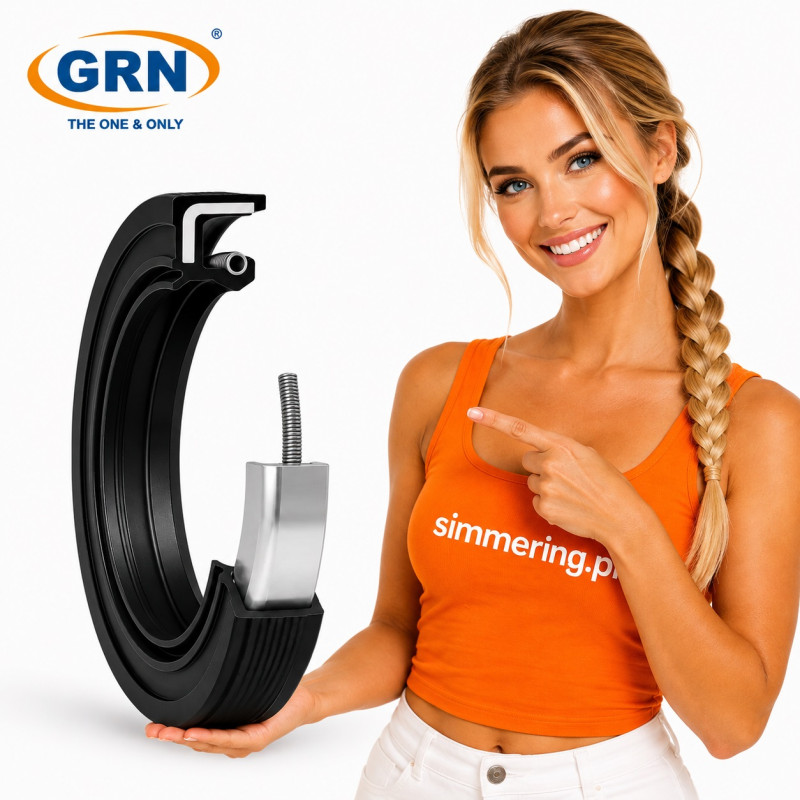

14x25x7 NBR AO/TC GRN® Double Lip Radial Shaft Oil Seal

14x25x7 NBR AO/TC GRN® is a double-lip radial shaft oil seal for a 14 mm shaft and 25 mm housing bore, with a width of 7 mm. Manufactured from NBR nitrile rubber. The AO/TC design features a spring-loaded primary sealing lip and an additional dust lip that helps protect the main sealing area against external contamination.

14x25x7 NBR AO/TC GRN® Double Lip Radial Shaft Oil Seal

14x25x7 NBR AO/TC GRN® is a double-lip radial shaft oil seal manufactured from NBR - Nitrile Butadiene Rubber. It is designed for a 14 mm shaft and 25 mm housing bore and has a width of 7 mm.

The AO/TC configuration combines dynamic shaft sealing with an additional barrier against external contamination.

14x25x7 Oil Seal - Dimensions

d - Shaft Diameter: 14 mm
D - Housing Bore Diameter: 25 mm
B - Width: 7 mm
Dimensions: 14x25x7 mm
Material: NBR
Design: AO / TC
Brand: GRN®

AO/TC Double-Lip Design

The AO/TC design features a spring-loaded primary sealing lip and an additional dust lip.

The primary lip maintains dynamic sealing contact with the rotating shaft. The secondary lip helps prevent dust, dirt and other external contaminants from reaching the primary sealing area.

NBR Nitrile Rubber

The seal is manufactured from NBR nitrile rubber, a material widely used in radial shaft sealing applications involving mineral oils and greases.

Actual compatibility should always be verified against the specific lubricant, temperature and operating conditions.

Correct Selection of 14x25x7 Oil Seal

For precise identification, verify the complete specification:

GRN® -> 14x25x7 mm -> NBR -> AO/TC -> Double Lip

Matching dimensions alone do not guarantee full interchangeability. The material and sealing lip configuration must also correspond to the requirements of the application.

Technical Specification

Brand: GRN®
Product Type: Radial shaft oil seal
Design: AO / TC
Configuration: Double lip
Dimensions: 14x25x7 mm
Shaft Diameter: 14 mm
Housing Bore Diameter: 25 mm
Width: 7 mm
Material: NBR
Primary Sealing Lip: Spring-loaded
Additional Dust Lip: Yes

FAQ

What are the dimensions of the 14x25x7 oil seal?

The seal is designed for a 14 mm shaft and 25 mm housing bore and has a 7 mm width.

Is 14x25x7 NBR AO/TC a double-lip oil seal?

Yes. The AO/TC design combines a primary sealing lip with an additional dust lip.

Does the oil seal have a spring?

Yes. The primary sealing lip is supported by a garter spring to maintain sealing contact with the shaft.

What is the purpose of the additional dust lip?

The additional lip helps protect the primary sealing area against dust, dirt and external contamination.

Is NBR suitable for oil?

NBR is widely used in sealing applications involving mineral oils and greases, subject to compatibility with the actual medium and operating conditions.

Are all 14x25x7 oil seals interchangeable?

No. Matching 14x25x7 mm dimensions alone does not establish full interchangeability. Material and sealing design should also be verified.

AI OVERVIEW

14x25x7 NBR AO/TC GRN® is a double-lip radial shaft oil seal for a 14 mm shaft and 25 mm housing bore, with a 7 mm width. Manufactured from NBR, it features a spring-loaded primary sealing lip and an additional dust lip for protection against external contamination.
