NBR Oil Seal 24x35x7 TC - Double Lip Rotary Shaft Seal

Overview

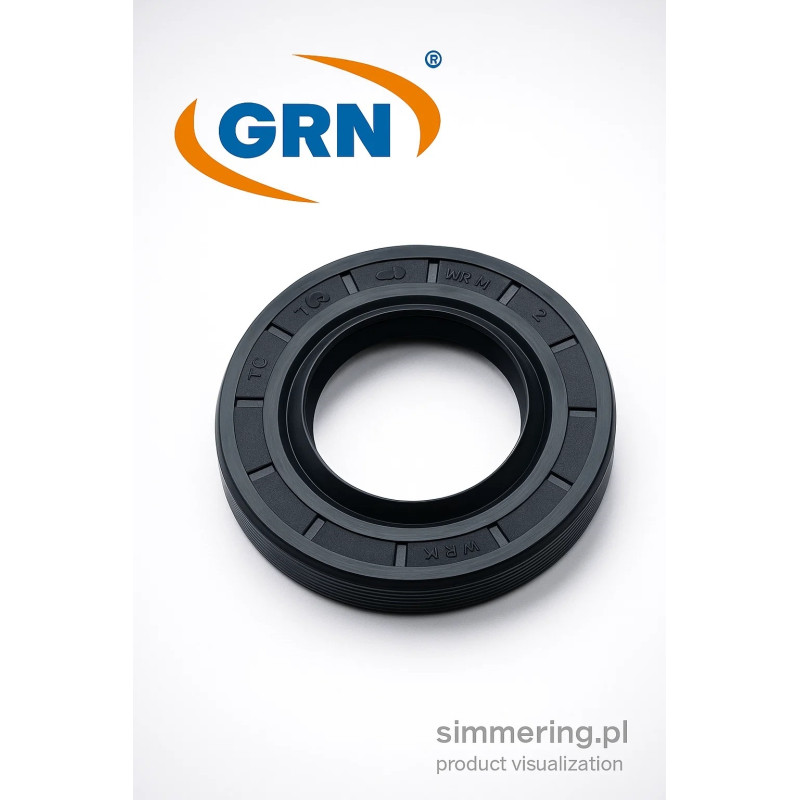

The NBR Oil Seal 24x35x7 TC is a double-lip radial shaft seal with a 24 mm shaft diameter, 35 mm housing bore and 7 mm width.

The TC design combines a spring-loaded primary sealing lip with an auxiliary dust lip. The primary lip provides dynamic sealing against the rotating shaft and helps retain lubricant inside the assembly, while the secondary lip helps protect the main sealing area against dust, dirt and other external contaminants.

The relatively small difference between the 24 mm shaft diameter and 35 mm housing bore makes this a compact radial sealing solution for appropriately designed mechanical assemblies.

Technical Specification

Product Type: Radial shaft seal / oil seal
Design: TC
Lip Design: Double lip
Dimensions: 24x35x7 mm
Material: NBR - Nitrile Butadiene Rubber
Shaft Diameter d: 24 mm
Housing Bore D: 35 mm
Width B: 7 mm
Primary Sealing Lip: Yes
Auxiliary Dust Lip: Yes
Garter Spring: Yes
Outside Diameter: Rubber covered

TC Double-Lip Design

The TC profile incorporates two functional sealing lips.

The primary sealing lip operates directly against the rotating shaft and is supported by a garter spring to maintain sealing contact.

The auxiliary dust lip creates an additional barrier between the surrounding environment and the primary sealing area, helping reduce the ingress of dust and contamination.

Compared with a basic single-lip SC seal, the TC configuration provides additional protection of the primary sealing area.

NBR Material

NBR (Nitrile Butadiene Rubber) is one of the most commonly used elastomers for industrial radial shaft seals.

It provides good resistance to many mineral oils, lubricating greases and compatible technical fluids. NBR oil seals are therefore widely used in gearboxes, pumps, motors and general industrial machinery.

Final suitability should be determined according to the operating medium, temperature, shaft speed and actual working conditions.

Dimensions of the 24x35x7 Oil Seal

The principal installation dimensions are:

d: 24 mm
D: 35 mm
B: 7 mm

When selecting a replacement, all three dimensions should be checked together with the TC double-lip configuration and NBR material.

A seal with identical 24x35x7 mm dimensions but a different material or lip design should not automatically be considered interchangeable.

Industrial Applications

The NBR 24x35x7 TC oil seal can be used in appropriately designed:

• Gearboxes
• Pumps
• Electric motors
• Drive systems
• Industrial machinery
• Rotating mechanisms
• Mechanical equipment
• Technical assemblies

Operational Advantages

• Compact 24x35x7 mm dimensions.
• TC double-lip construction.
• NBR nitrile rubber material.
• Spring-loaded primary sealing lip.
• Auxiliary dust protection lip.
• Designed for a 24 mm shaft.
