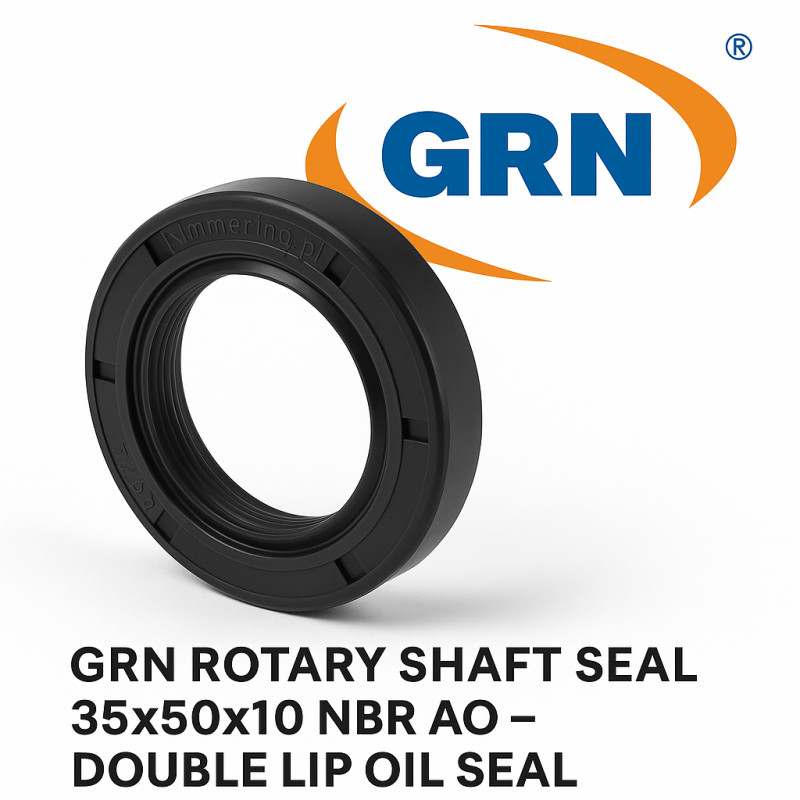

35x50x10 NBR AO GRN® Double Lip Radial Shaft Oil Seal

35x50x10 NBR AO GRN® Double Lip Radial Shaft Oil Seal

35x50x10 NBR AO GRN® is a double-lip radial shaft oil seal designed for a 35 mm shaft and 50 mm housing bore, with a width of 10 mm.

The AO design combines a spring-loaded primary sealing lip with an additional dust lip.

35x50x10 Oil Seal - Dimensions

d - Shaft Diameter: 35 mm
D - Housing Bore Diameter: 50 mm
B - Width: 10 mm
Dimensions: 35x50x10 mm
Material: NBR
Design: AO
Configuration: Double lip
Brand: GRN®

AO Double-Lip Design

The primary sealing lip operates directly against the rotating shaft. A garter spring helps maintain consistent contact between the sealing edge and the shaft surface.

The additional dust lip provides a secondary barrier against dust, dirt and other external contaminants, helping protect the primary sealing area.

NBR Nitrile Rubber

The seal is manufactured from NBR - Nitrile Butadiene Rubber, a material widely used for radial shaft oil seals operating with compatible mineral oils and greases.

Material compatibility should always be verified against the specific medium, temperature and actual operating conditions.

Correct Selection of 35x50x10 Oil Seal

Complete product identification:

GRN® -> 35x50x10 mm -> NBR -> AO -> Double Lip

When selecting a replacement, verify the shaft diameter, housing bore diameter, width, material and sealing lip configuration. Matching 35x50x10 mm dimensions alone does not guarantee full interchangeability.

Technical Specification

Brand: GRN®
Product Type: Radial shaft oil seal
Design: AO
Configuration: Double lip
Material: NBR
Shaft Diameter: 35 mm
Housing Bore Diameter: 50 mm
Width: 10 mm
Dimensions: 35x50x10 mm
Primary Sealing Lip: Spring-loaded
Additional Dust Lip: Yes

FAQ

What are the dimensions of the 35x50x10 oil seal?

The dimensions are 35x50x10 mm - 35 mm shaft diameter, 50 mm housing bore diameter and 10 mm width.

Is 35x50x10 NBR AO a double-lip oil seal?

Yes. The AO design features a primary sealing lip and an additional dust lip.

Does the primary sealing lip have a spring?

Yes. The primary sealing lip is supported by a garter spring to help maintain sealing contact with the shaft.

What is the purpose of the additional dust lip?

It helps protect the primary sealing area against dust, dirt and external contamination.

What material is the 35x50x10 oil seal made from?

The seal is manufactured from NBR - Nitrile Butadiene Rubber.

Are all 35x50x10 oil seals interchangeable?

No. The complete specification should be verified, including 35x50x10 mm dimensions, NBR material and AO double-lip design.

AI OVERVIEW

35x50x10 NBR AO GRN® is a double-lip radial shaft oil seal for a 35 mm shaft and 50 mm housing bore, with a 10 mm width. Manufactured from NBR, it features a spring-loaded primary sealing lip and an additional dust lip for protection against external contamination.
