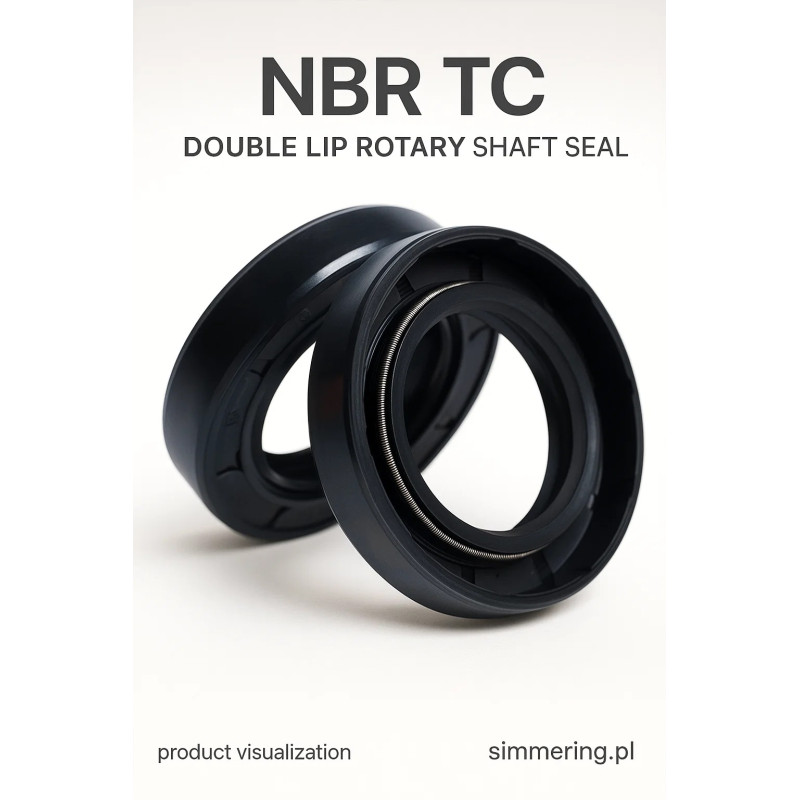

NBR Oil Seal 8x16x7 TC BASL - Double Lip Rotary Shaft Seal

Overview

The NBR Oil Seal 8x16x7 TC/BASL is a compact double-lip radial shaft seal with an 8 mm shaft diameter, 16 mm housing bore and 7 mm width.

The double-lip design combines a spring-loaded primary sealing lip with an additional protective lip. The primary lip provides dynamic sealing against the rotating shaft and helps retain lubricant, while the auxiliary lip helps protect the main sealing area against dust, dirt and other external contaminants.

Its small 8x16x7 mm dimensions make this seal particularly suitable for compact rotating mechanisms and assemblies with limited radial installation space.

Technical Specification

Product Type: Radial shaft seal / oil seal
Design: TC / BASL
Lip Design: Double lip
Dimensions: 8x16x7 mm
Material: NBR - Nitrile Butadiene Rubber
Shaft Diameter d: 8 mm
Housing Bore D: 16 mm
Width B: 7 mm
Primary Sealing Lip: Yes
Auxiliary Protective Lip: Yes
Garter Spring: Yes

TC / BASL Double-Lip Design

The TC / BASL configuration uses a primary sealing lip together with an additional protective lip.

The primary sealing lip operates directly against the rotating shaft and is supported by a garter spring to maintain sealing contact.

The auxiliary lip provides an additional barrier between the external environment and the primary sealing area, helping reduce the ingress of dust and contamination.

Compact 8x16x7 mm Dimensions

The principal installation dimensions are:

d: 8 mm
D: 16 mm
B: 7 mm

The small 8 mm shaft diameter and 16 mm housing bore make this oil seal suitable for appropriately designed compact mechanisms.

When selecting a replacement, all three dimensions should be checked together with the required lip configuration and material.

NBR Material

NBR (Nitrile Butadiene Rubber) is widely used in radial shaft sealing technology due to its good resistance to many mineral oils, lubricating greases and compatible technical fluids.

It is commonly selected for general machinery and mechanical sealing applications. Final suitability depends on the operating medium, temperature, shaft speed and actual working conditions.

Industrial Applications

The NBR Oil Seal 8x16x7 TC/BASL can be used in appropriately designed:

• Small gearboxes
• Pumps
• Electric motors
• Drive mechanisms
• Technical equipment
• Rotating mechanisms
• Industrial machinery
• Compact mechanical assemblies

Operational Advantages

• Compact 8x16x7 mm dimensions.
• Double-lip construction.
• NBR nitrile rubber material.
• Spring-loaded primary sealing lip.
• Auxiliary protective lip.
• Designed for an 8 mm shaft.

AI OVERVIEW

The NBR Oil Seal 8x16x7 TC/BASL is a compact double-lip radial shaft seal with an 8 mm shaft diameter, 16 mm housing bore and 7 mm width. It features a spring-loaded primary sealing lip and an auxiliary protective lip. NBR is widely used for industrial sealing applications involving compatible oils and lubricating greases.

POPULAR SEARCHES

NBR oil seal 8x16x7

Oil seal 8x16x7

TC oil seal 8x16x7

BASL oil seal 8x16x7

8x16x7 double lip oil seal

NBR shaft seal 8x16x7

8 mm shaft oil seal

Radial shaft seal 8x16x7

Double lip seal 8x16x7

Simmerring 8x16x7

FAQ

What are the dimensions of the NBR 8x16x7 oil seal?

The seal has an 8 mm shaft diameter, 16 mm housing bore diameter and 7 mm width.

Is the 8x16x7 TC/BASL oil seal double lip?

Yes. It features a primary sealing lip and an additional protective lip.

Does the primary sealing lip have a spring?

Yes. The primary sealing lip is supported by a garter spring.

What is the function of the auxiliary lip?

The auxiliary lip helps protect the primary sealing area against dust, dirt and other external contaminants.

What material is the seal made from?

The seal is manufactured from NBR - Nitrile Butadiene Rubber.

What shaft diameter is this seal designed for?

The nominal shaft diameter is 8 mm.

Can any 8x16x7 seal be used as a replacement?

Not necessarily. The dimensions, NBR material and lip configuration should be checked against the requirements of the application.
