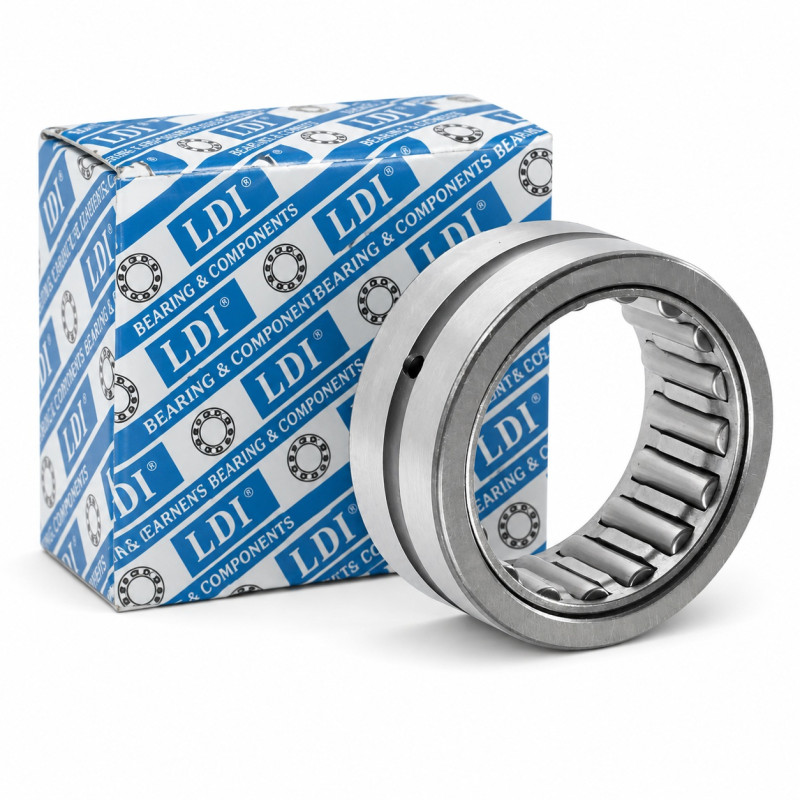

NKS 37 LDI Needle Roller Bearing 37x52x22

NKS 37 LDI Needle Roller Bearing Without Inner Ring 37x52x22

NKS 37 LDI is a professional needle roller bearing without inner ring designed for applications requiring high radial load capacity with limited installation space. The needle roller construction with slender cylindrical rollers allows the bearing to support heavy radial loads while maintaining compact dimensions of 37x52x22 mm. NKS series bearings are widely used in gearboxes, pumps, compressors and industrial drive systems.

The design without an inner ring allows direct use of a hardened and precision machined shaft surface as the bearing raceway. This solution increases shaft rigidity, allows larger shaft diameter and reduces the overall dimensions of the bearing assembly.

Needle roller bearings use cylindrical rollers with a large length-to-diameter ratio, providing significantly higher radial load capacity compared with standard deep groove ball bearings of similar external dimensions. The machined outer ring construction improves structural rigidity and stable operation under dynamic loading conditions.

The NKS 37 LDI bearing is commonly used in:

• industrial gearboxes
• hydraulic pumps
• compressors
• production machinery
• agricultural equipment
• industrial drive systems
• conveyor equipment
• applications requiring high radial load capacity

The phrase NKS 37 37x52x22 needle roller bearing without inner ring is frequently searched in industrial maintenance environments and compact bearing assembly applications.

Construction and operating characteristics

The NKS 37 LDI bearing is designed for operation under heavy radial loads in compact mechanical systems.

Main construction features:

• needle roller construction
• design without inner ring
• machined outer ring
• high radial load capacity
• compact design
• suitable for high rotational speed
• increased shaft rigidity
• long operational lifespan

The design without inner ring allows the use of larger shaft diameter and reduces the total dimensions of the bearing assembly.

Technical specification

Type: Needle roller bearing without inner ring

Designation: NKS 37

Manufacturer: LDI

Bearing type: Machined needle roller bearing

Construction: Bearing without inner ring

Sealing: Open bearing without seals

Inner diameter: 37 mm

Outer diameter: 52 mm

Width: 22 mm

Weight: Approx. 0.123 kg

Load type: High radial loads

Applications: Gearboxes, pumps, compressors, industrial machinery, agricultural equipment, drive systems

FAQ

What does bearing without inner ring mean?

The bearing uses the shaft surface directly as the raceway for the needle rollers.

What are the advantages of needle roller bearings?

Needle roller bearings provide very high radial load capacity with compact external dimensions.

Does the shaft require special preparation?

Yes. The shaft surface should be hardened and precision machined.

What are the dimensions of the bearing?

The bearing dimensions are 37x52x22 mm.

Where are NKS needle roller bearings commonly used?

They are commonly used in gearboxes, pumps, compressors and industrial drive systems.
