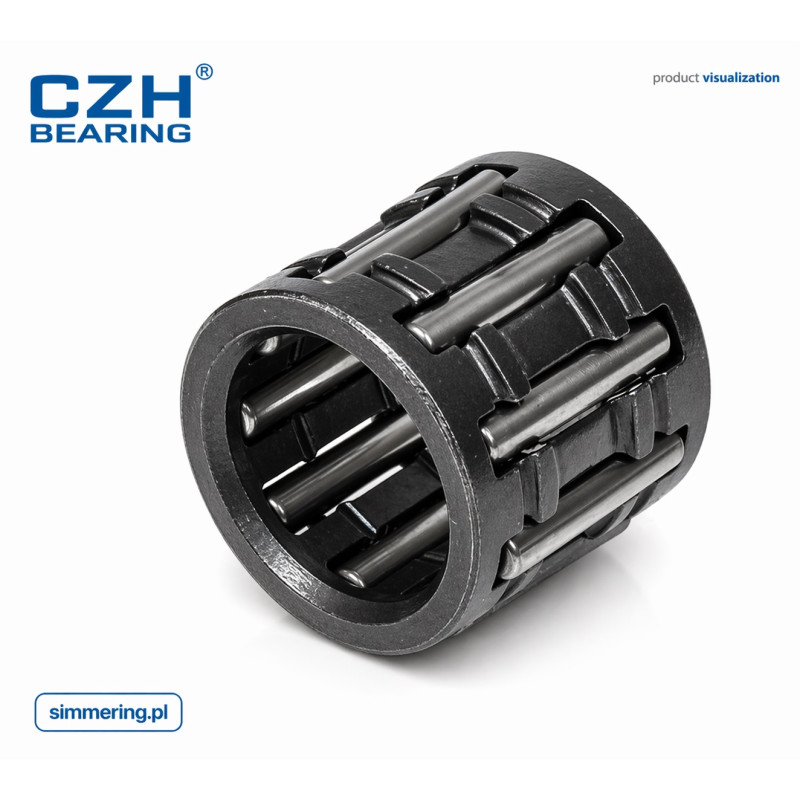

K 10x14x13 CZH Needle Roller Bearing Cage Assembly

Main Description

The K 10x14x13 CZH needle roller bearing is a compact cage assembly designed to deliver high radial load capacity in applications with very limited installation space.

Within the needle roller bearings category, the K 10x14x13 CZH stands out as a cage-guided needle assembly without inner and outer rings. This design allows direct contact with the shaft and housing, maximizing load capacity while minimizing overall dimensions. The integrated cage ensures even distribution of the needle rollers and stable operation at higher speeds, reducing friction and wear.

The 10x14x13 size is commonly used in precision mechanical systems where compact design and performance efficiency are essential. This type of needle bearing is ideal for applications where traditional bearings cannot meet space and load requirements simultaneously.

Construction and Design

The K 10x14x13 CZH needle bearing is engineered for high performance in compact assemblies.

Key design features:

• needle roller cage assembly without rings
• high-strength needle rollers with optimized geometry
• cage maintaining uniform roller spacing
• direct operation on hardened shaft and housing
• compact structure for space-saving designs

This construction enables high load capacity while maintaining low friction and reliable operation.

Industrial Applications

The K 10x14x13 CZH needle roller bearing is widely used in applications requiring compact size and high performance.

Typical applications include:

• gearboxes and transmission systems
• power tools and mechanical drives
• precision machinery
• automotive components
• industrial equipment with limited mounting space

Its design makes it particularly suitable for high-load applications in confined spaces.

Technical Parameters

• type: needle roller bearing
• model: K 10x14x13 CZH
• inner diameter: 10 mm
• outer diameter: 14 mm
• width: 13 mm
• design: needle roller cage assembly
• material: bearing steel
• operating characteristics: high radial load capacity, compact design

Operational Advantages

The K 10x14x13 CZH needle bearing provides several key benefits:

• very high load capacity relative to size
• compact and lightweight construction
• efficient use of limited installation space
• stable operation due to cage guidance
• reduced friction and improved performance

This makes it an ideal solution for modern compact mechanical systems.

FAQ

Does the K 10x14x13 CZH bearing include rings?
No, it is a needle roller cage assembly without inner or outer rings.

What is the function of the cage?
It keeps the needle rollers evenly spaced and improves stability.

Where is this bearing typically used?
In gearboxes, tools, and compact mechanical systems.

Does it require a hardened shaft?
Yes, the shaft and housing surfaces must be properly hardened.

Is it suitable for high-load applications?
Yes, it offers very high load capacity for its size.
