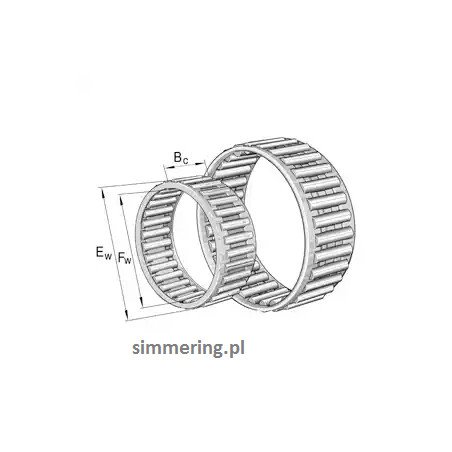

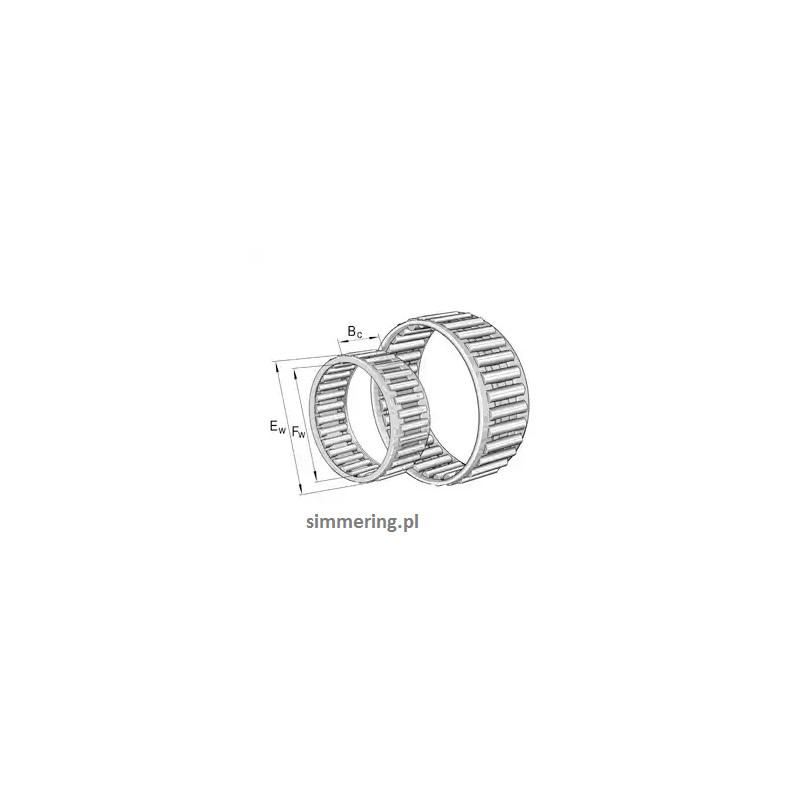

K15X19X17 KOYO Needle Roller and Cage Assembly - 15x19x17 mm

K15X19X17 KOYO Needle Roller and Cage Assembly - 15x19x17 mm

Technical Specifications

• Model: K15X19X17

• Type: Needle Roller and Cage Assembly

• Brand: KOYO

• Inner Diameter (Fw): 15 mm

• Outer Diameter (Ew): 19 mm

• Width (Bc): 17 mm

• Dynamic Load Rating (Cr): 12.3 kN

• Static Load Rating (C0r): 17.2 kN

• Fatigue Load Limit (Cu): 2.65 kN

• Limiting Speed (Grease Lubrication): 18,000 rpm

• Limiting Speed (Oil Lubrication): 28,000 rpm

• Cage Material: Steel

• Weight: 0.009 kg

• EAN: 0605790200373



⚙️ Product Overview

The K15X19X17 KOYO needle roller and cage assembly is engineered for applications requiring high load capacity and minimal radial space. Its compact design and precision construction make it suitable for various industrial and automotive uses.

🛠️ Key Features

• High Load Capacity: Designed to handle significant radial loads efficiently.

• Compact Design: Ideal for applications with limited installation space.

• Durable Construction: Made with high-quality materials for extended service life.

• Versatile Application: Suitable for automotive transmissions, gearboxes, and industrial machinery.

🏭 Applications

• Automotive: Transmissions, gearboxes, and other systems requiring compact, high-load bearings.

• Industrial Machinery: Presses, conveyors, and equipment where space and load capacity are critical.

📦 Availability & Delivery

• Stock: 200 units available

• Price: 9.35 PLN (net) per unit

• Delivery: 24h nationwide and international shipping

• Warehouse Location:
  📍 Smoluchowskiego 1, Building 4, Lublin, Poland

❓ Frequently Asked Questions (FAQ)

Q1: Does this assembly include an inner ring?
A: No, the K15X19X17 is supplied without an inner ring, allowing for a compact design suitable for applications where the shaft serves as the raceway.

Q2: What lubrication is recommended?
A: Both grease and oil lubrication are suitable. For higher speed applications, oil lubrication is preferred due to its superior cooling and lubricating properties.

Q3: Is this bearing suitable for high-speed applications?
A: Yes, with limiting speeds up to 28,000 rpm (oil lubrication), it is well-suited for high-speed operations.

Q4: Can I order in bulk?
A: Absolutely. For bulk orders and special pricing, please contact our sales team directly.
