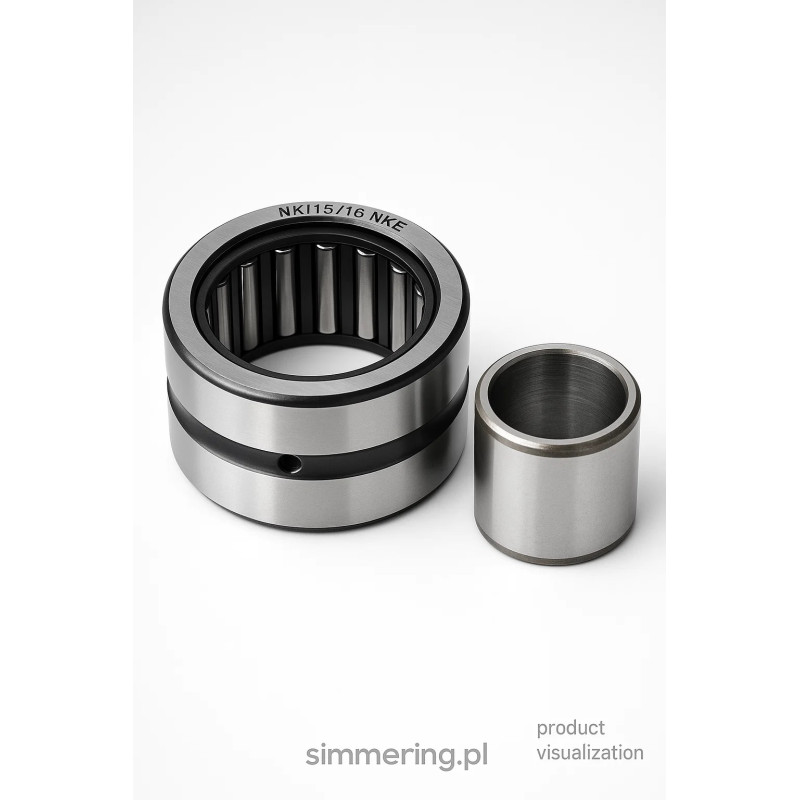

NKI 15/16 NKE 15×27×16 Needle Roller Bearing with Inner Ring
search
  • NKI 15/16 NKE 15×27×16 Needle Roller Bearing with Inner Ring

NKI 15/16 NKE 15x27x16 Needle Roller Bearing with Inner Ring

Processing time: 2-3 days
€6.75 (net)
Price for: 1pcs.

The NKI 15/16 NKE 15x27x16 needle roller bearing with inner ring is your choice when you need a compact bearing that can handle high radial loads but don’t have a hardened shaft surface. With standard dimensions, inner ring included, high quality steel, and reliable performance, it’s ideal for automotive, industrial, or agricultural machinery. Stocked in Lublin, ready today.

📍 Warehouse & Store: Lublin, ul. Smoluchowskiego 1, building 4
🚚 24h shipping - fast and efficient order processing

Quantity

NKI 15/16 NKE 15x27x16 Needle Roller Bearing with Inner Ring

The NKI 15/16 NKE 15x27x16 is a precision needle roller bearing with inner ring, engineered for high load capacity in limited space. Featuring inner diameter 15 mm, outer diameter 27 mm, width 16 mm, this bearing from NKE delivers exceptional durability and smooth performance in industrial, automotive, and agricultural applications.

This bearing includes the inner ring (‘I’ in NKI), meaning it can operate reliably even if the shaft surface is untreated or not hardened. A variant without inner ring (NK series) requires shaft with precise hardened surface. The NKI 15/16’s robust design minimizes wear, reduces friction, and maintains stability under radial loads.

Technical Specifications

Parameter Value
Internal Diameter (d) 15 mm
External Diameter (D) 27 mm
Width (B) 16 mm
Type Needle roller bearing with inner ring
Series NKI (with inner ring)
Material High-grade bearing steel, hardened surfaces
Application Radial load support, automotive axles, industrial shafts, small gearboxes

Key Advantages

  • Inner ring included → easier installation, less shaft preparation required

  • High radial load capacity in compact space

  • Minimal friction and smooth running

  • Long service life under standard lubrication and reasonable contamination

  • Ideal for automotive, industrial machines, agricultural implements

Typical Use Cases

  • Small gearboxes and transmissions

  • Automotive applications: support bushes, axle shafts

  • Industrial machinery: rollers, conveyor shafts, pressing equipment

  • Agricultural machinery: pivot points, small robotics or actuators

FAQ

Q: What does “inner ring” (I) mean in NKI 15/16 NKE?
A: The “inner ring” in NKI version provides a ground race surface inside the bearing. That allows the bearing to be used on standard shafts, even if the shaft surface is not hardened or ground. Without inner ring (NK type), shaft must be hardened and machined.

Q: Is this bearing interchangeable with NK 15/16 or other NK/NKE equivalents?
A: Yes, dimensionally (15x27x16 mm) it may be substituted for NK 15/16 or similar from other brands provided load & speed ratings match. But if shaft isn’t properly finished, inner ring type (NKI) is safer.

Q: What lubrication is recommended?
A: Use high-quality bearing grease with good heat tolerance. Regular lubrication helps when bearing is exposed to dust, moisture or oscillating loads.

Q: Does this bearing handle misalignment or axial loads?
A: No. NKI 15/16 is designed primarily for radial loads. Minor misalignment tolerated if small; axial loads should be avoided; always use appropriate housing or support if needed.

Keywords & Search Phrases Embedded

needle roller bearing NKI 15/16
NKE 15x27x16 bearing
bearing with inner ring 15x27x16
industrial needle bearing
needle bearing automotive applications
compact needle roller bearing
NKI inner ring bearing
15x27x16 needle roller bearing for shafts
high load needle bearing

AI-Powered Review — this description is unique, focused on NKI 15/16 15x27x16 version, built to outrank similar product entries, emphasizing inner ring feature, application, durability, and the advantage of local stock and fast delivery.

NKE
NKI 15/16 NKE
Processing time: 2-3 days

Data sheet

Diameter in. (mm)
15
Diameter out. (mm)
27
Height (mm)
16
Mark
NKE
