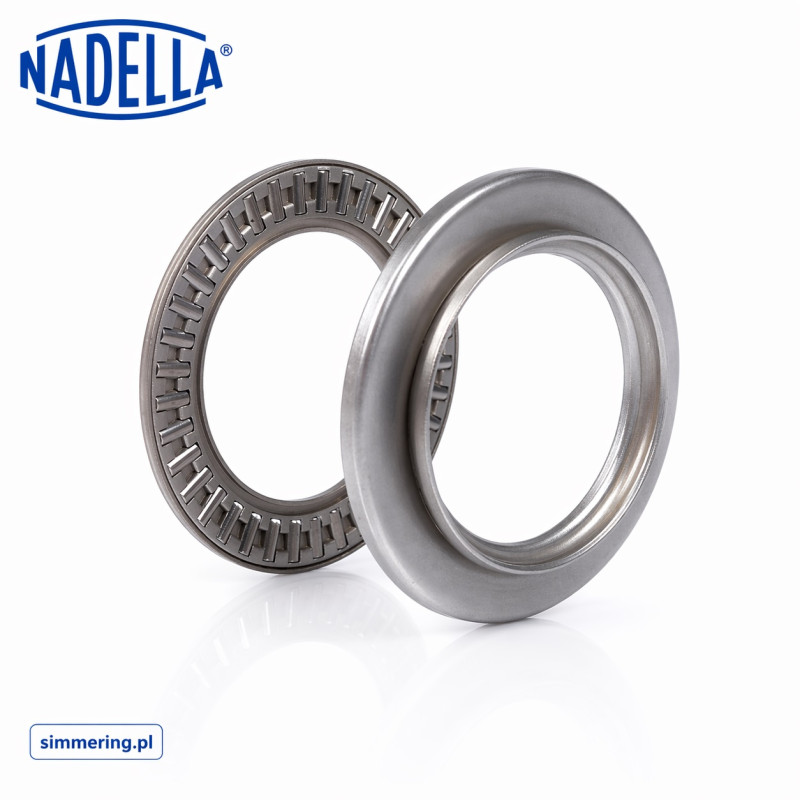

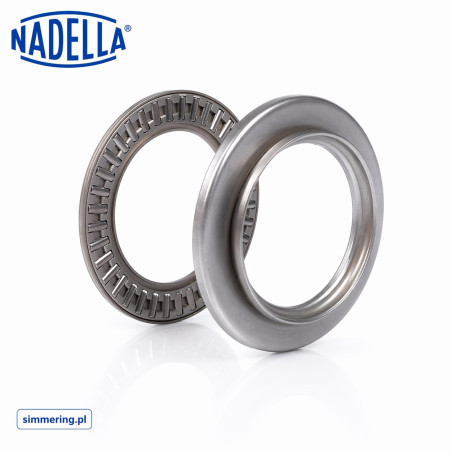

AX3.5816 NADELLA 8x16x3,5 thrust needle roller bearing

Main description

The AX3.5816 NADELLA thrust needle roller bearing with dimensions 8x16x3,5 mm is a precision compact bearing designed to support axial loads in applications where space is extremely limited and high stiffness is required.

This model belongs to the category of thrust needle roller bearings, known for their very low cross section combined with relatively high axial load capacity. Thanks to the use of needle rollers, the bearing provides a large contact surface, ensuring efficient load distribution even in compact assemblies.

The AX3.5816 NADELLA is widely used in precision mechanisms and compact systems where standard bearings cannot be applied due to dimensional constraints.

Construction and design

The AX3.5816 NADELLA is a thrust needle roller bearing consisting of a cage assembly with precisely guided needle rollers.

Its ultra thin design allows installation in tight spaces while maintaining the ability to carry axial loads. The cage ensures proper spacing and guidance of rollers, reducing friction and improving operational stability.

For proper operation, the bearing requires hardened and ground raceways or matching washers to ensure durability and performance.

Industrial applications

This thrust needle roller bearing is used in applications where compact size and axial load support are critical.

Typical applications include:
precision gear systems and compact drives
automation equipment and control systems
mechanical tools and small devices
electronics and fine mechanics
light industrial machinery

Within the needle bearing category, the AX3.5816 NADELLA is a highly efficient solution for axial load applications.

Technical parameters

Inner diameter: 8 mm
Outer diameter: 16 mm
Height: 3,5 mm
Type: thrust needle roller bearing
Brand: NADELLA

Operational advantages

extremely compact design
high axial load capacity for its size
low installation height
precise and stable operation
lightweight construction
ideal for limited space applications

FAQ

What type of load does the AX3.5816 NADELLA support?
It is designed to support axial loads only.

Is it suitable for compact applications?
Yes, its very low height makes it ideal for limited space designs.

Does it require additional components?
Yes, it typically operates with raceways or thrust washers.

Is it used in precision equipment?
Yes, it is commonly applied in precision and compact mechanical systems.
