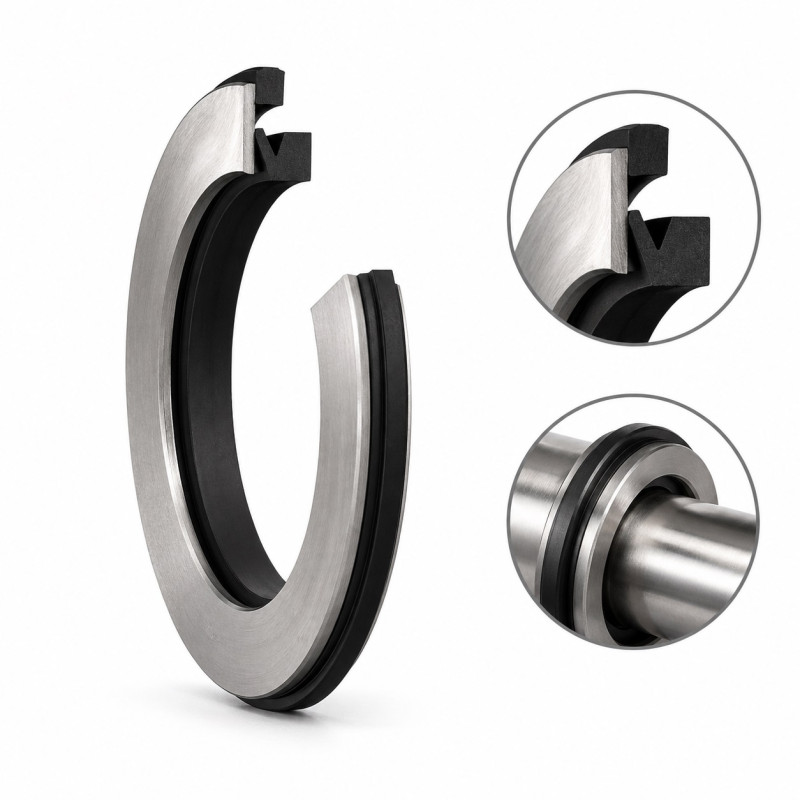

SKF TSN 524 C V Ring Seal for Bearing Housings

Design and Construction

The SKF TSN 524 C is a V ring seal designed for bearing housings, providing effective protection against contamination. The sealing system consists of a V shaped rubber ring and a steel washer with a bonded rubber sealing lip.

The sealing lip made of NBR rubber fits into the housing groove, creating a reliable barrier against dust, dirt, and moisture. The steel washer is corrosion protected, ensuring long service life even in demanding environments.

Industrial Applications

The SKF TSN 524 C V ring seal is used in bearing housings operating in contaminated or harsh environments. It can function as a primary seal or as a secondary seal to protect the main sealing system.

Typical applications include:

• industrial machinery
• conveyor systems
• agricultural equipment
• heavy duty installations

Technical Specifications

Shaft diameter: 110 mm
Housing groove diameter: 167.5 mm
Width: 12.5 mm
Type: housing seal
Seal type: V ring
Material: NBR rubber with steel element
Manufacturer: SKF
Weight: 0.375 kg

Long tail keywords:
SKF TSN 524 C V ring seal
bearing housing seal 110 mm
V ring seal SKF NBR

Operational Advantages

The SKF TSN 524 C seal provides reliable protection for bearing systems in demanding environments.

Key advantages:

• effective protection against contamination
• suitable as secondary sealing solution
• easy installation
• resistant to oil and grease
• durable steel reinforced design

Main Description

SKF TSN 524 C is a V ring seal for bearing housings, designed to protect bearings from contamination and extend service life in industrial applications.

As part of the bearing housing accessories category, it provides a cost effective and efficient sealing solution. Its design ensures reliable performance in environments with high levels of dirt and dust.

Technical snippet section:
SKF TSN 524 C V ring seal is an NBR and steel sealing system designed for bearing housings, providing effective protection against contamination.

FAQ

Does one unit include one or two seals?
One unit includes a set of two seals.

Can it be used in dusty environments?
Yes, it is designed for contaminated conditions.

Is it suitable as a secondary seal?
Yes, it can protect primary seals.

What material is used?
NBR rubber with a steel element.

What shaft size is it designed for?
For 110 mm shaft diameter.
