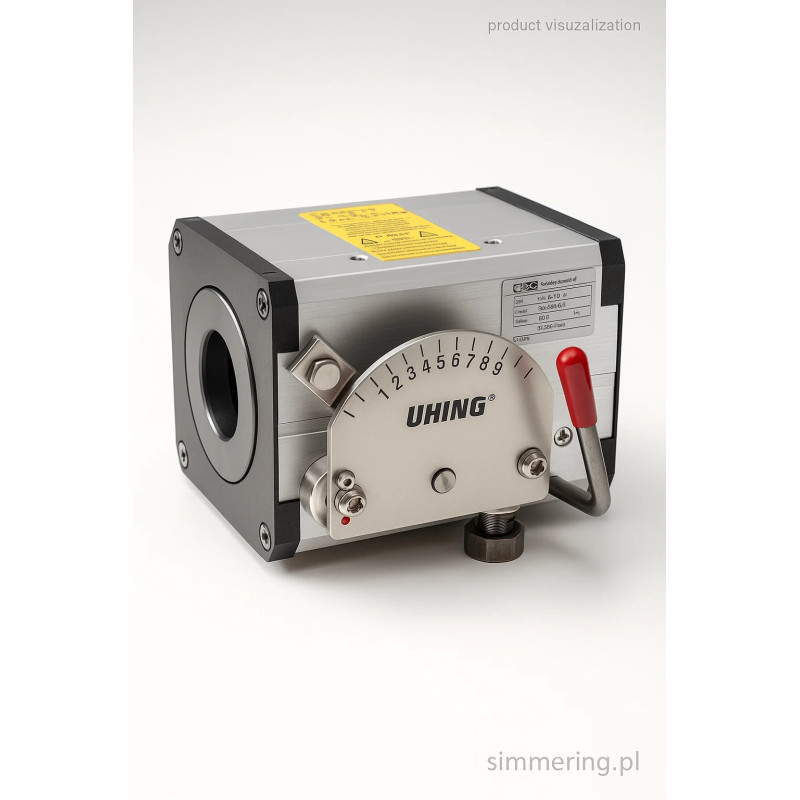

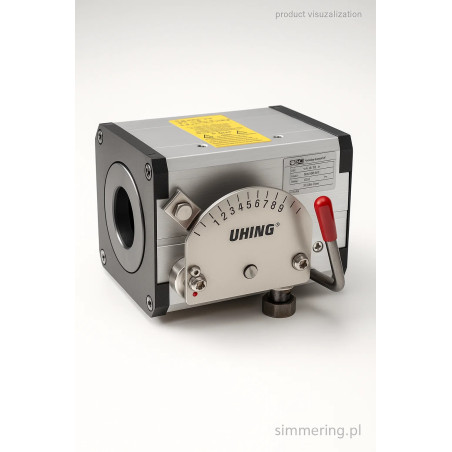

UHING RG3R-30-2MCRF Rolling Ring Drive

Technical Specifications & Drive Principle

The UHING RG3R-30-2MCRF rolling ring drive is a precision engineered unit designed for a 30 mm shaft diameter. Built on the rolling ring principle, the unit converts continuous rotary motion of a smooth shaft into a controlled reciprocating linear movement. The mechanism employs multiple rolling rings pivoting on anti-friction bearings, pressed against the shaft by an inclined profile to generate thrust. Maximum side thrust is approximately 260 N for the 30 mm version, and maximum traverse speed is around 0.40 m/s. Key features include adjustable pitch (including zero pitch for standstill), selectable direction reversal, and a compact design optimized for industrial use. This drive represents a ready-to-install industrial drive unit for demanding linear motion tasks.

Industrial Applications & Integration

This rolling ring drive is tailored for industrial applications such as winding machines, material handling systems, packaging lines, spooling equipment, and linear feed mechanisms. Because it transforms shaft rotation into linear travel without need for screw drives, it simplifies integration into high-performance installations. The RG3R-30-2MCRF unit is ideal in setups where repeated reciprocating motion is required, and where reliability, compactness and ease of integration matter most. As a complete unit it fits directly into machine assemblies, supporting drive systems and automations with minimal additional design effort.

Benefits for B2B and Maintenance Teams

• High durability: Robust construction and optimized rolling ring mechanism deliver long life even under continuous operation.

• Plug-and-play unit: The drive arrives as a complete module, reducing assembly time and risk of mis-integration.

• Precise pitch and direction control: Operators can adjust stroke length and direction without mechanical rebuilds.

• Flexibility in industrial environments: Designed for integration into varied systems requiring robust linear motion, reducing downtime and maintenance efforts.

• Supply readiness for B2B clients: Ideal for production lines, maintenance programs and industrial upgrades where time-to-install is critical.

Primary keywords: rolling ring drive, linear motion drive unit, industrial drive unit, 30 mm shaft drive, high durability drive.
Synonyms / related terms: reciprocating drive unit, ring drive shaft, drive for linear motion, industrial traverse unit.

FAQ

Q: What shaft size is compatible with the RG3R-30-2MCRF?
A: The model is designed for a 30 mm diameter shaft, enabling standard installation in industrial systems built for this size.

Q: Can the drive handle bidirectional stroke and adjustable pitch?
A: Yes. The rolling ring design allows changing the pitch (including zero pitch) and reversing direction of motion via built-in mechanisms.

Q: How much thrust can the unit generate and what is the speed?
A: For the 30 mm model the maximum side thrust is around 260 N and traverse speed approximately 0.40 m/s, suitable for many industrial linear feed applications.

Q: Is this drive unit suitable for maintenance-critical environments?
A: Certainly. It is designed for continuous industrial operation, is compact, easy to integrate, and reduces maintenance due to its simplified mechanism compared to screw drives.
