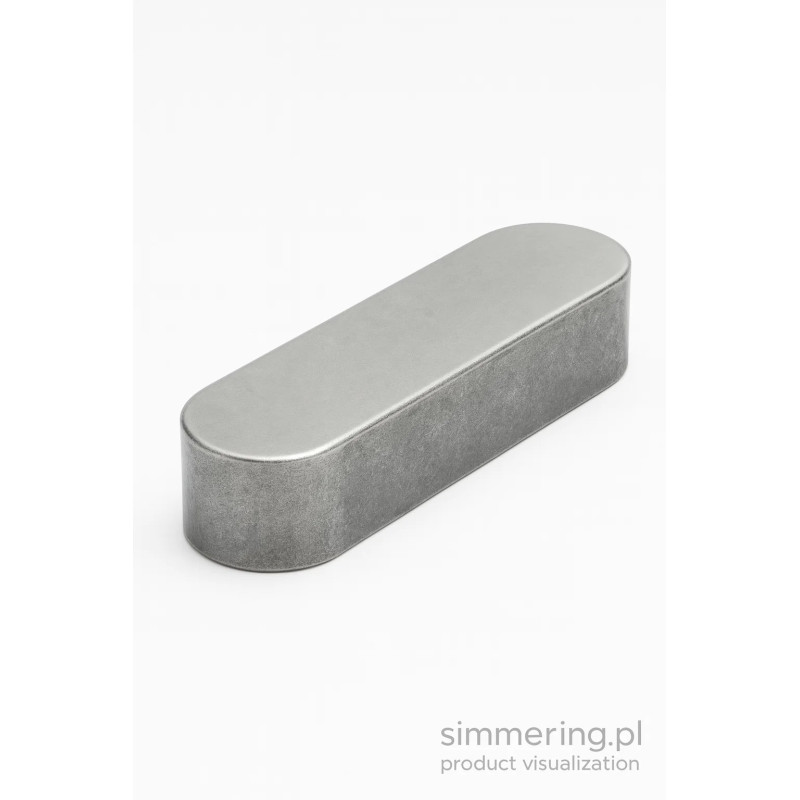

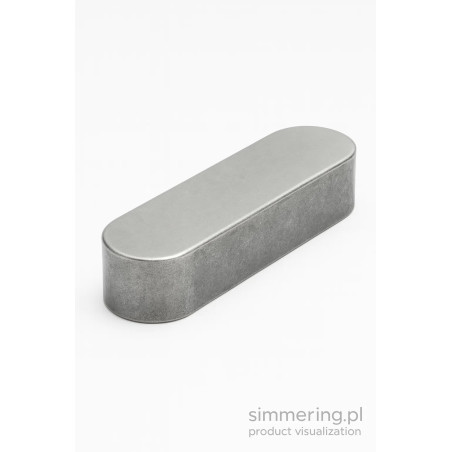

Prism Key 6x6x14 A - Steel Machine Element

Application in Power Transmission Systems

Main Description

The Prism Key 6x6x14 A is a standardized steel machine element used to create a secure mechanical connection between a shaft and a hub. It ensures accurate alignment and prevents slippage during torque transmission. The letter A refers to DIN 6885A, which defines a full-profile, rounded parallel key with precise tolerances for consistent and repeatable assembly.

The dimensions 6x6x14 mm represent the width, height, and length of the key, making it suitable for commonly used shaft keyways in industrial drive systems. Manufactured from high-strength steel, the key offers excellent durability, torsional resistance, and mechanical stability under dynamic industrial loads.

This key type is widely used in pulleys, gears, couplings, transmission systems, bearing housings, and various industrial drive assemblies. Its standardized form allows quick installation, easy replacement, and seamless integration with both new and existing machinery. The compact size and high reliability make it an essential component in precision mechanical systems.

Key Advantages

• secure and stable shaft-hub connection

• high durability thanks to steel construction

• full compliance with DIN 6885A

• easy installation due to standardized dimensions

• excellent resistance to torsional and dynamic loads

The 6x6x14 A prism key is an economical yet highly reliable solution for industrial applications where precise torque transmission and long service life are required.

FAQ - Frequently Asked Questions

Q: What is the function of a prism key 6x6x14 A?
A: It transmits torque and fixes the hub position relative to the shaft in mechanical drive systems.

Q: What does DIN 6885A specify?
A: It defines the shape, tolerances, and dimensions of full-profile, rounded prism keys of type A.

Q: What are the dimensions of this key?
A: Width 6 mm, height 6 mm, length 14 mm.

Q: What material is this key made of?
A: High-strength steel, ensuring excellent durability and load resistance.

Q: Is this element suitable for industrial machinery?
A: Yes, it is used in drive systems, pulleys, gears, couplings and many industrial assemblies.
