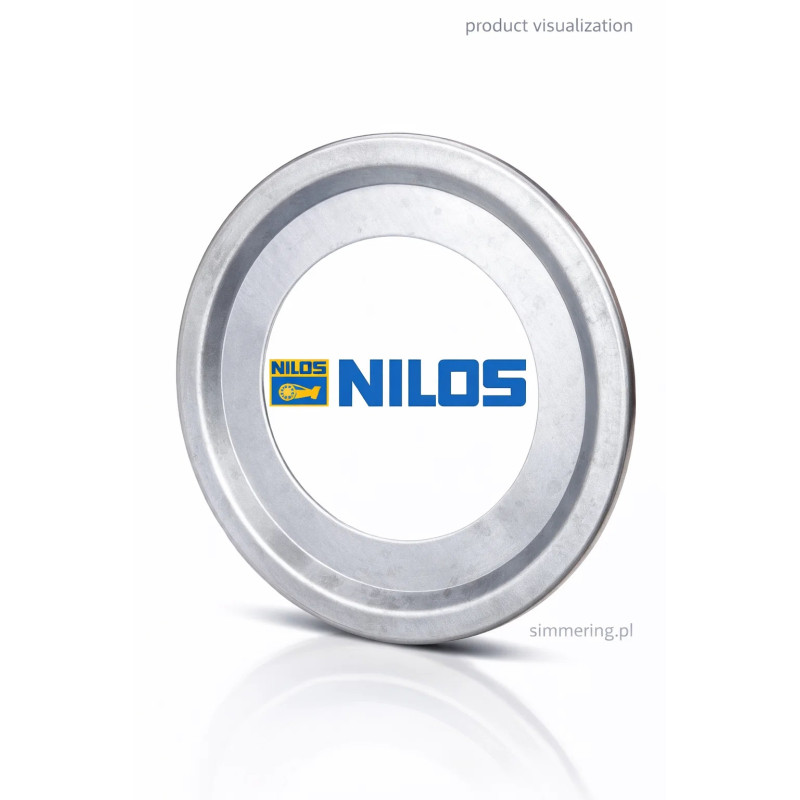

6004 AV NILOS metal seal 20x37,8x2

Application for protection of ball bearings

6004 AV NILOS is a precision metal seal designed to protect 6004 ball bearings against contamination and grease loss. The thin steel sealing ring forms an additional barrier between the bearing and the surrounding environment, increasing the operational reliability of the entire bearing unit.

In industrial applications the 6004 AV NILOS metal seal is used in electric motors, gearboxes, conveyor systems and production machinery. Installed between the ball bearing and the bearing housing, it limits the ingress of dust, metal particles and other contaminants. This contributes directly to high durability and stable operation under continuous load conditions.

Design and operating principle

The 6004 AV NILOS metal seal is manufactured from precision formed steel sheet with a ring thickness of 0,3 mm. The AV type is intended for use with a single side open deep groove ball bearing. The sealing ring contacts the inner ring shoulder, reducing contamination entry into the rolling element area.

Compared to rubber seals, a metal seal offers minimal friction torque and high dimensional stability at elevated operating temperatures. It is particularly suitable for high speed applications where low resistance and long service life are required.

Technical parameters

Product type: metal seal
Model: 6004 AV NILOS
Dimensions: 20x37,8x2 mm
Seal ring thickness s: 0,3 mm
Dimension c: 28 mm
Weight: 0,003 kg
Country of origin: Germany

The seal is precisely matched to the 6004 ball bearing and ensures proper fit within a compatible bearing housing.

FAQ

1. Which bearing does 6004 AV NILOS fit
   It is designed for deep groove ball bearing type 6004 with 20 mm bore diameter.

2. What is the advantage of a metal seal over a rubber seal
   A metal seal provides lower friction and higher temperature resistance.

3. Can it be used in electric motors
   Yes, it is commonly applied in electric motors and other industrial equipment.

4. Does the seal require lubrication
   No, it is intended to protect the existing grease inside the bearing.

5. Is the product manufactured in Germany
   Yes, the 6004 AV NILOS metal seal is produced in Germany.
