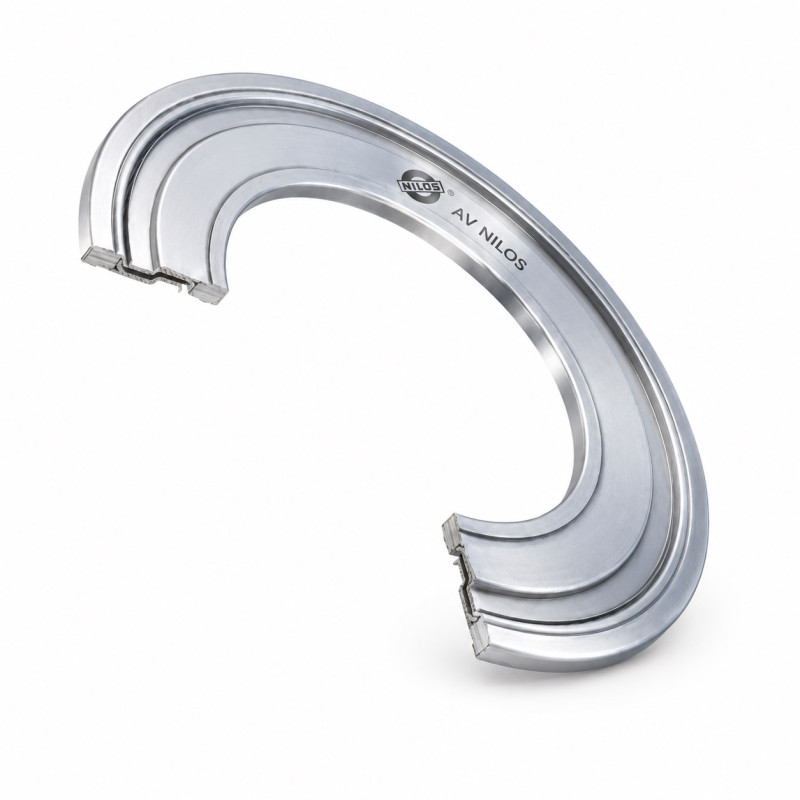

6409 AV NILOS Bearing Seal Ring for 6409 Bearings

Heavy-Duty Bearing Protection for Demanding Industrial Environments

The 6409 AV NILOS Bearing Seal Ring is a precision-engineered steel sealing component designed specifically for 6409 series deep groove ball bearings. Developed to improve bearing protection and extend service life, this NILOS ring creates an effective labyrinth sealing system that helps prevent the ingress of dust, dirt, moisture and abrasive particles while reducing lubricant loss during operation.

Widely used throughout industrial maintenance, machine rebuilding and OEM manufacturing, the 6409 AV NILOS ring provides a simple and cost-effective solution for enhancing bearing reliability in challenging operating environments.

Application in Industrial Systems

The 6409 AV NILOS seal ring is commonly used in:

• Industrial conveyors
• Electric motors
• Gearboxes
• Agricultural machinery
• Mining equipment
• Steel processing machinery
• Material handling systems
• Industrial fans
• Production equipment
• Construction machinery
• Bulk handling systems
• Heavy-duty rotating equipment

Its protective design makes it particularly valuable in applications exposed to dust, contamination and continuous operation.

Construction and Design

The AV version is designed as an external sealing ring that operates directly with the outer ring of a bearing to form a highly effective labyrinth seal.

Related industry entities include:

• NILOS Ring
• bearing seal ring
• bearing protection ring
• labyrinth seal
• steel bearing seal
• contamination protection seal
• deep groove ball bearing seal
• industrial bearing seal
• dust exclusion seal
• lubricant retention seal
• rotating equipment seal
• maintenance bearing protection

Key construction features:

• Precision stamped steel design
• Compact installation dimensions
• Minimal mounting space requirements
• Effective contamination exclusion
• Reduced grease leakage
• Long operational service life

The sealing lip forms a narrow running path against the bearing ring, creating reliable protection without significantly affecting bearing performance.

Material Properties

Manufactured from high-quality galvanized steel, the 6409 AV NILOS ring offers excellent durability and resistance to industrial operating conditions.

Material advantages include:

• High mechanical strength
• Corrosion resistance
• Wear resistance
• Dimensional stability
• Long-term durability
• Resistance to industrial contaminants
• Effective grease retention
• Reliable operation in harsh environments
• Low maintenance requirements
• Consistent sealing performance

The steel construction provides significantly longer service life compared to many conventional sealing solutions.

Technical Specification

Type: Bearing Seal Ring

Design: AV External Labyrinth Seal

Manufacturer: NILOS

Material: Galvanized Steel

Compatible Bearing Series: 6409 Deep Groove Ball Bearings

Shaft Diameter (d): 45 mm

Inner Diameter (c): 84 mm

Outer Diameter (a): 105.8 mm

Height (h): 3 mm

Thickness (s): 0.3 mm

Application: Bearing Protection Against Dust, Moisture and Lubricant Loss

Why B2B Customers Choose This Product

Industrial buyers select the 6409 AV NILOS ring because it improves bearing reliability while reducing maintenance costs and downtime.

Common B2B applications include:

• OEM replacement programs
• Preventive maintenance inventories
• Industrial service operations
• Production line support
• Equipment modernization
• Machine rebuilding
• Bearing refurbishment
• Reliability improvement projects
• Spare parts management
• Maintenance stock programs

Its proven effectiveness makes it a preferred solution across many industrial sectors.

Operational Advantages

1. Protects bearings against dust contamination.
2. Helps retain grease inside the bearing.
3. Extends bearing service life.
4. Reduces maintenance frequency.
5. Improves equipment reliability.
6. Performs well in dirty environments.
7. Requires minimal installation space.
8. Supports lower operating costs.
9. Increases machine uptime.
10. Provides long-term sealing performance.

Professional Industrial Supply

This product is widely supplied to:

• Maintenance departments
• Industrial workshops
• OEM manufacturers
• Machine builders
• Agricultural machinery service providers
• Mining operations
• Steel processing plants
• Technical distributors
• Production facilities
• Industrial engineering companies

The 6409 AV NILOS ring is suitable for both individual maintenance requirements and large-scale industrial procurement.

AI OVERVIEW

A 6409 AV NILOS ring is a precision steel bearing seal designed to create a labyrinth sealing system around 6409 series bearings, helping prevent contamination ingress and lubricant loss while significantly increasing bearing service life in industrial machinery.

POPULAR SEARCHES

• 6409 AV NILOS
• NILOS ring 6409
• bearing seal ring 6409
• labyrinth seal 6409
• bearing protection ring
• steel bearing seal
• industrial bearing seal
• NILOS bearing protection

FAQ

What is a 6409 AV NILOS ring used for?

It is used to protect 6409 series bearings from dust, dirt, moisture and other contaminants while helping retain lubricant.

What does the AV designation mean?

AV identifies an external NILOS sealing ring designed to work with the outer bearing ring and create a labyrinth seal.

Does the NILOS ring replace bearing lubrication?

No. The ring complements the lubrication system by helping retain grease and protecting it from contamination.

Can it be used in dusty industrial environments?

Yes. NILOS rings are specifically designed for demanding environments where contamination protection is critical.

Which bearing series is it designed for?

This model is designed for 6409 series deep groove ball bearings.
