Insert ball bearings YAT205-100 25.4*52*27.2
search
  • Insert ball bearings YAT205-100 25.4*52*27.2

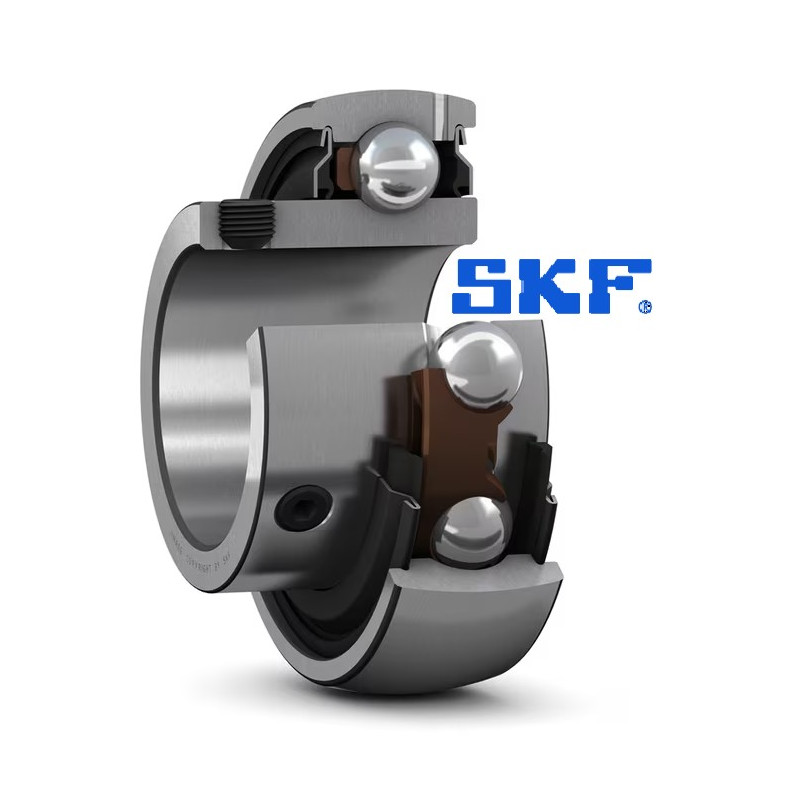

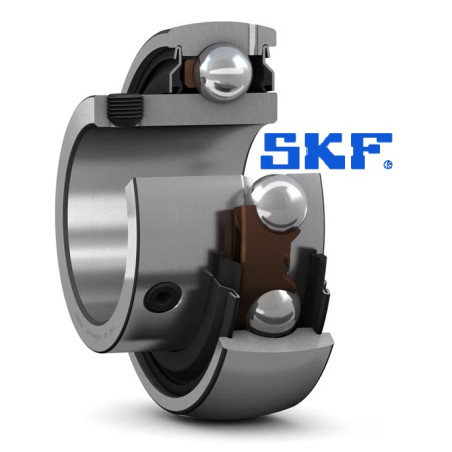

YAT 205-100 SKF 25.4x52x27.2 Insert bearing with set screws locking and narrow inner ring

7316571504582
78 pcs.
€11.57 (net)
Price for: 1pcs.
Quantity

YAT 205-100 SKF 25.4x52x27.2

Insert bearing with set screws locking and narrow inner ring

Insert bearings are based on sealed deep groove ball bearings. This variant of insert bearing is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on one side, and is locked onto the shaft by tightening two (set) screws on the inner ring.
  • Quick and easy to mount onto the shaft
  • Long service life
  • Reduce noise and vibration levels

Dimensions

Bore diameter 25.4 mm
Outside diameter 52 mm
Width, total 27.2 mm
Width, inner ring 27.2 mm
Width, outer ring 15 mm

Performance

Basic dynamic load rating 14 kN
Basic static load rating 7.8 kN
Limiting speed 7 000 r/min
SKF
7316571504582
YAT205-100
10074318
78 pcs.

Data sheet

Diameter in. (mm)
25.4
Diameter out. (mm)
52
Thickness (mm)
27.2
Mark
SKF
