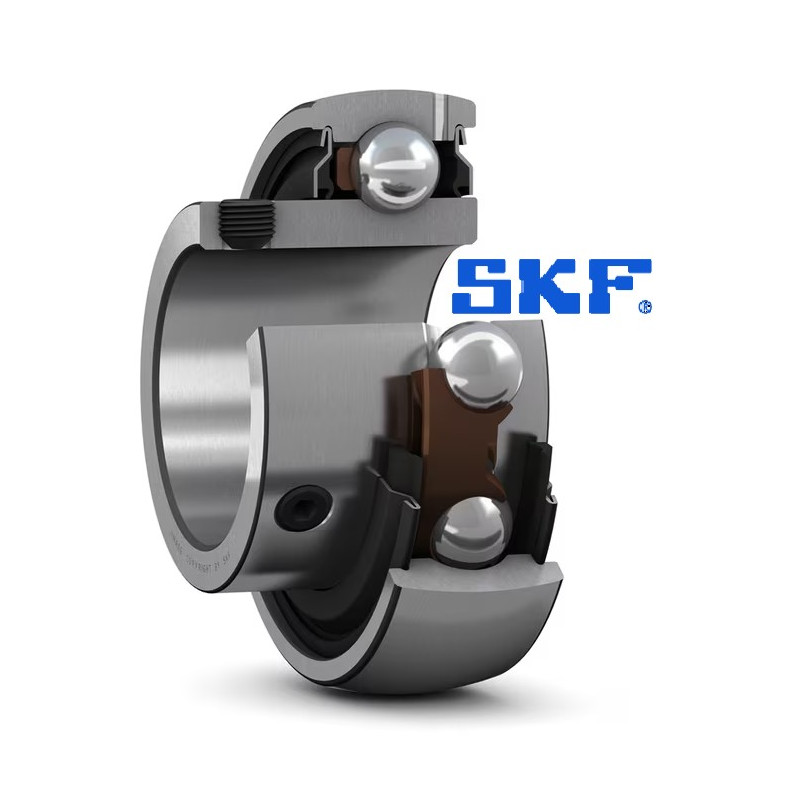

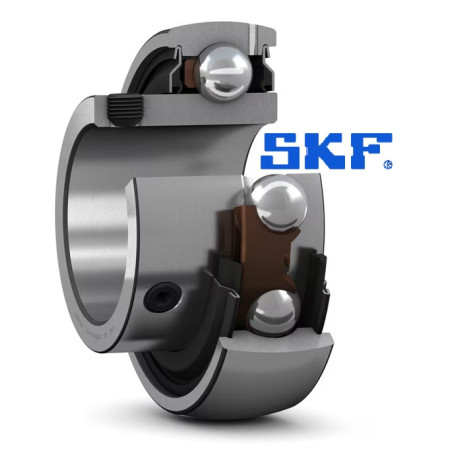

YAT 210 SKF 50*90*38.8 Insert bearing with set screws locking
search
  • YAT 210 SKF 50*90*38.8 Insert bearing with set screws locking

Insert ball bearings YAT210 50x90x38.8

7316571006789
110 pcs.
€24.76 (net)
Price for: 1pcs.
Quantity

YAT 210 SKF 50x90x38.8

Insert bearing with set screws locking and narrow inner ring

Insert bearings are based on sealed deep groove ball bearings. This variant of insert bearing is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on one side, and is locked onto the shaft by tightening two (set) screws on the inner ring.
  • Quick and easy to mount onto the shaft
  • Long service life
  • Reduce noise and vibration levels

Dimensions

Bore diameter 50 mm
Outside diameter 90 mm
Width, total 38.8 mm
Width, inner ring 38.8 mm
Width, outer ring 22 mm

Performance

Basic dynamic load rating 35.1 kN
Basic static load rating 23.2 kN
Limiting speed 4 000 r/min
SKF
7316571006789
YAT210
10063576
110 pcs.

Data sheet

Diameter in. (mm)
50
Diameter out. (mm)
90
Thickness (mm)
38.8
Mark
SKF
