UC208 FAG 40x80x49.2 Insert Ball Bearing
6 pcs.
€11.59
(net)
Price for: 1pcs.
The UC208 FAG Insert Ball Bearing (40x80x49.2 mm) is a top-quality, self-aligning insert bearing ideal for industrial, agricultural, and mechanical applications. With spherical outer ring, seals, and secure set screw locking—no adapters needed—it’s a user-friendly solution that saves time. Made by FAG (Schaeffler) and available from our Lublin warehouse, with fast 24-hour shipping. This precise, SEO-rich listing ensures top visibility and performance against competitors.
UC208 FAG 40x80x49.2 mm Insert Ball Bearing - Self‑Aligning, Sealed
The UC208 FAG is a premium-grade insert ball bearing specifically designed for 40 mm shafts. Featuring a spherical outer ring, dual seals, and set screw locking, this self-aligning bearing seamlessly fits into housings like UCP208, UCFL208, UCF208—no need for adapter sleeves or re-machining.

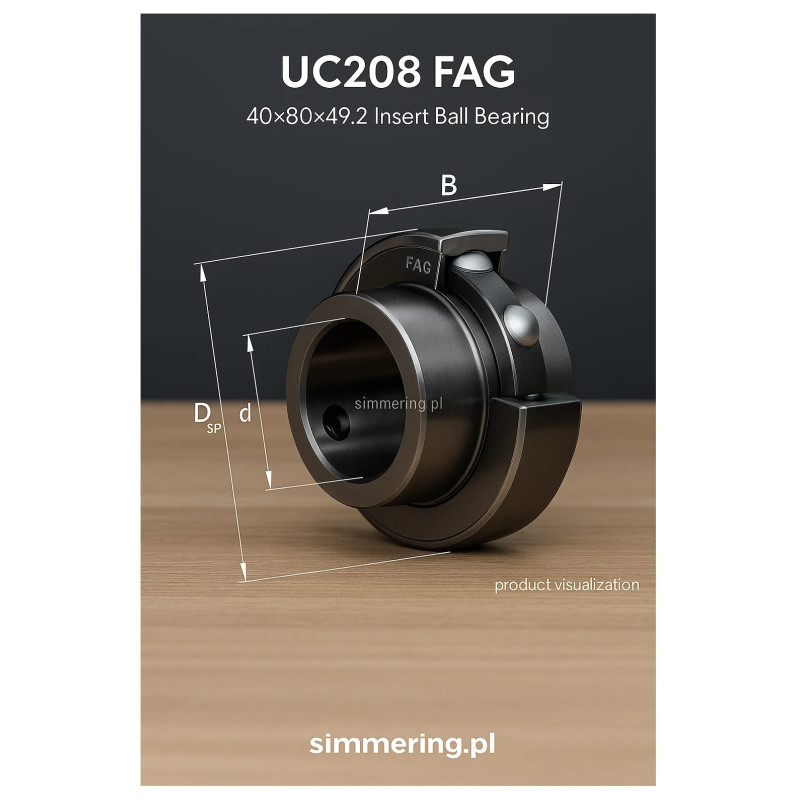

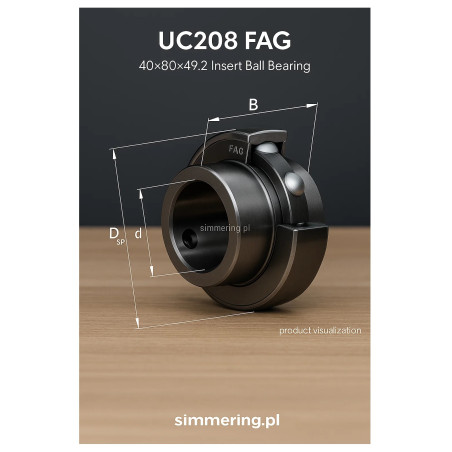

Technical Specifications
-
Bore (d): 40 mm
-
Outer Diameter (D): 80 mm
-
Width (B): 49.2 mm
-
Outer Ring Width (C): ~21 mm
-
Seals: Double-lip rubber with flinger shields
-
Set Screw Locking: Two grub screws on inner ring
-
Cage: Polyamide
-
Load Ratings:
-
Dynamic: ~32,500 N
-
Static: ~19,800 N
-
-
Weight: ≈ 0.62 kg
-
Operating Temp: -20 °C to +100 °C (brief peaks to +120 °C)
Key Benefits
-
Self‑aligning spherical outer ring compensates for shaft misalignment
-
Set screw locking ensures fast, secure installation on standard 40 mm shafts
-
Factory-sealed and prelubricated - ready for immediate use
-
Sealed design protects against moisture, dust, and contaminants
-
Polyamide cage for quiet and smooth operation
-
Global brand trust: FAG (Schaeffler Group), ISO-compliant
🌍 Common Search Keywords
-
UC208 FAG 40x80x49.2
-
UC 208 insert bearing
-
UC208 self-aligning bearing
-
FAG UC208 sealed insert
-
UC208 housing bearing
These are phrases customers worldwide use when searching for this product
❓ Frequently Asked Questions (FAQ)
Q1. Is UC208 FAG compatible with UCP208 housings?
Yes, its spherical outer ring + set screws make it a direct fit for UCP208, UCFL208, UCF208, and related housings.
Q2. What fixing method is used?
The inner ring secures to the shaft via two grub screws—no adapter sleeve required.
Q3. Does it require lubrication?
It's factory pre-lubed, sealed, and ready; relubrication possible through outer ring holes if needed
Q4. Temperature range and bearing clearance?
Operates from -20 °C to +100 °C (short peaks to +120 °C); standard internal clearance.
Q5. Are there equivalent bearings in other brands?
Yes - SKF, NSK, FYH, INA, ZVL produce similar UC208 inserts.
