  • Insert ball bearings YAT205/VP076 SKF 25*52*27.2

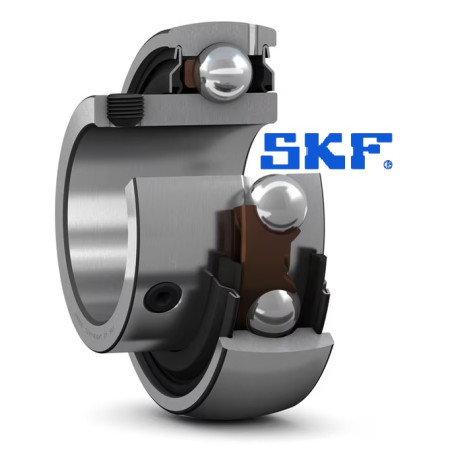

YAT 205/VP076 SKF 25x52x27.2 Insert bearing with set screws locking and narrow inner ring

7316570340112
€22.44 (net)
Quantity

YAT 205/VP076 SKF 25x52x27.2

Insert bearing with set screws locking and narrow inner ring

Insert bearings are based on sealed deep groove ball bearings. This variant of insert bearing is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on one side, and is locked onto the shaft by tightening two (set) screws on the inner ring.
  • Quick and easy to mount onto the shaft
  • Long service life
  • Reduce noise and vibration levels

Dimensions

Bore diameter 25 mm
Outside diameter 52 mm
Width, total 27.2 mm
Width, inner ring 27.2 mm
Width, outer ring 15 mm

Performance

Basic dynamic load rating 14 kN
Basic static load rating 7.8 kN
Limiting speed 8 500 r/min
SKF
7316570340112
YAT205/VP076 SKF

Data sheet

Thickness (mm)
27.2
Mark
SKF
