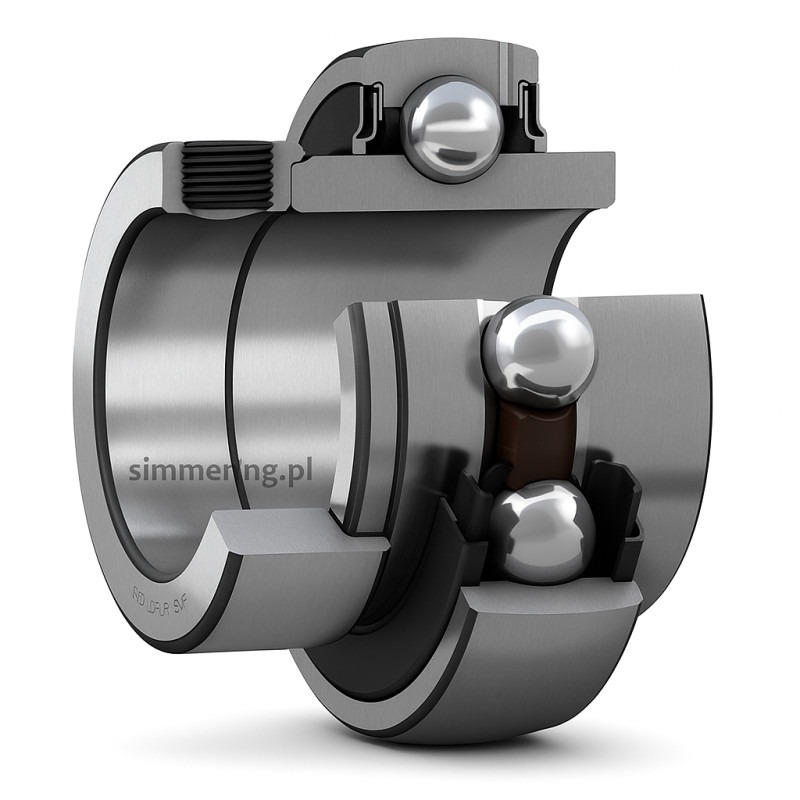

SKF YEL 208‑2F - 40x80x56.3 mm Sealed Insert Ball Bearing with Locking Collar

SKF YEL 208‑2F - 40x80x56.3 mm Sealed Insert Ball Bearing with Locking Collar

The SKF YEL 208‑2F is a high-performance insert ball bearing featuring a sealed deep-groove ball design with a 40 mm bore, 80 mm OD, and 56.3 mm width. It includes an eccentric locking collar and a spherical outer race for self-aligning capability—ideal for applications with constant rotation and slight shaft misalignment.

Key Features:

• Bore / OD / Width: 40 x 80 x 56.3 mm

• Construction: Sealed bearing with grease filler, dual contact seals, spherical OD

• Mounting: Eccentric locking collar enables quick installation on shaft

• Performance: High dynamic load capacity (~30.7 kN) and static load (~19 kN)

• Speed & Durability: Up to ~4,800 rpm; hardened steel for long service life

A reliable choice for agricultural machinery, industrial conveyors, cooling fans, and material-handling systems. The SKF YEL 208‑2F excels in rugged environments, reducing noise and maintenance needs.

🔑 Keywords

❓ FAQ

Q: What type of bearing is this?
A: It’s a sealed insert deep-groove ball bearing with a locking collar designed for easy installation.

Q: What are the dimensions?
A: Bore: 40 mm, OD: 80 mm, Total width: 56.3 mm.

Q: How is it mounted?
A: Uses an eccentric locking collar that clamps onto the shaft—no extra locking hardware required.

Q: Is it sealed?
A: Yes—dual contact seals protect internal grease and prevent contamination.

Q: What is its load capacity and speed rating?
A: Dynamic load ~30.7 kN, static ~19 kN, max speed around 4,800 rpm under proper conditions.
