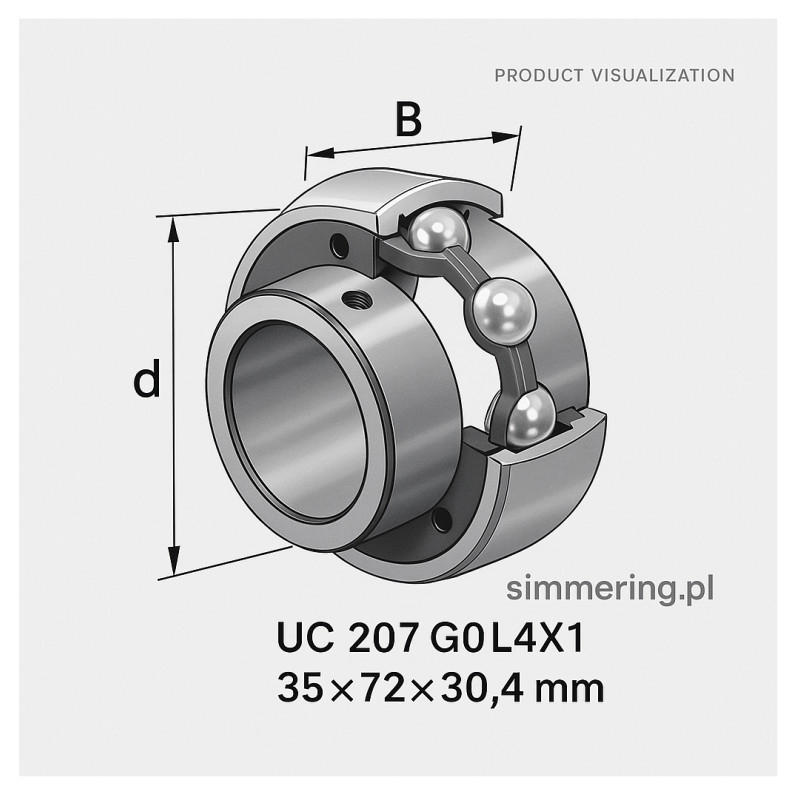

SNR UC 207 G0L4X1 Self‑Aligning Insert Bearing - 35x72x30.4 mm

SNR UC 207 G0L4X1 Self‑Aligning Insert Bearing - 35x72x30.4 mm

The SNR UC 207 G0L4X1 self-aligning insert bearing (35 mm ID x 72 mm OD x 30.4 mm width) is engineered for reliability in harsh industrial and agricultural applications. Featuring a stainless steel cage, C3 internal clearance, and double-lip rubber + labyrinth seals, it’s tailored for dusty, low-speed environments.

Technical Specifications

• Bore (d): 35 mm

• Outer Diameter (D): 72 mm

• Overall Width: 30.4 mm

• Outer Ring Width (C): 20 mm

• Cage: Stainless steel insert

• Internal Clearance: C3 (greater than standard)

• Sealing: Double rubber lips + labyrinth seal—designed for dusty conditions

• Dynamic Load Capacity (C): 25.7 kN

• Static Load Capacity (C₀): 15.2 kN

• Maximum Speed: ≈ 5,300 RPM

• Temperature Range: -20 °C to +100 °C

• Weight: ≈ 0.415 kg

✅ Key Benefits

• Self-aligning design compensates for misalignment and shaft deflection.

• Robust seals protect against dust and contaminants in dirty, low-speed applications.

• C3 clearance allows thermal expansion, reducing operational friction.

• Stainless steel cage ensures longevity and corrosion resistance.

• Versatile installation with set-screw locking—no adapter sleeve needed.

❓ FAQ

Q1: What's the meaning of G0L4X1?
It denotes the double-lip rubber plus labyrinth seal (G0) and C3 internal clearance (L4X1).

Q2: Is this bearing suitable for dirty environments?
Yes—the enhanced sealing and durable construction make it ideal for dusty, low-speed use .

Q3: How fast can it rotate?
It supports up to ≈ 5,300 RPM, making it capable for a broad range of moderate-speed applications .

Q4: How does installation work?
The bearing locks onto the shaft with set screws—no adapter sleeve needed. Easy to mount and reposition.

Q5: When and from where is it shipped?
Ships from our Lublin warehouse, with 24h dispatch across Poland and internationally.
