SNR MUC 205 FD - Stainless Steel Food-Grade Self-Aligning Insert Bearing 25x52x17 mm

SNR MUC 205 FD - Stainless Steel Food-Grade Self-Aligning Insert Bearing 25x52x17 mm

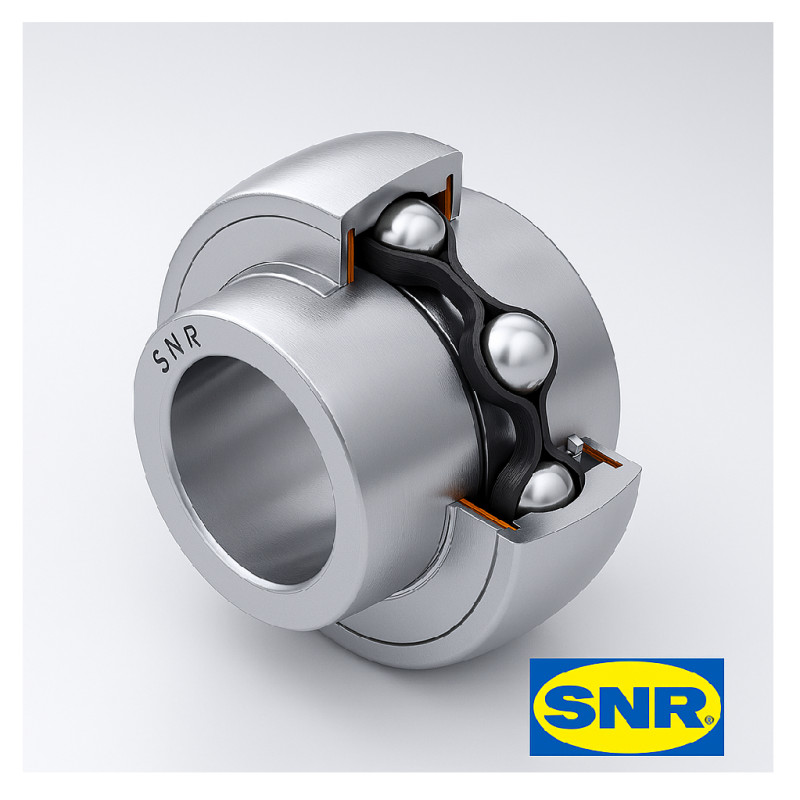

The SNR MUC 205 FD is a premium stainless steel, self-aligning insert bearing featuring a robust double-seal (FD) and food-grade grease lubrication. Its design includes a spherical outer ring that compensates misalignment, a widened inner ring with a set-screw locking system, and a centrifugal slinger for superior seal protection.

Core Features:

• Bore: 25 mm, Outer diameter: 52 mm, Width: 17 mm, Mass: ~0.19 kg

• Sealing: Double sliding seal with centrifugal slinger (FD food-grade grease)

• Locking: Inner ring fixed by set-screw; tightening torque ~3.9 Nm

• Load capacity: Dynamic ~11.9 kN, Static ~6.3 kN

• Temperature range: -20 °C to +120 °C

• Material: Stainless steel rings, balls, cage; food-grade lubrication meets FDA & USDA H1 standards

Applications:
Designed for robust performance in wet, hygienic environments such as food and beverage lines, bottling machinery, conveyors, pumps, and agricultural systems. Easy installation and maintenance make it perfect for B2B industrial setups seeking high reliability and cleanliness standards.

✅ Summary

The SNR MUC 205 FD combines stainless construction, food-grade grease, and a self-aligning spherical design to deliver long-lasting performance in demanding environments. With easy set-screw installation and rapid 24 h dispatch from our Lublin warehouse, it’s the top choice for industrial and food-processing facilities globally.

❓ FAQ

Q: What does “FD” denote?
A: FD indicates “Food-Duty” sealing—double seals with a centrifugal slinger and food-grade grease.

Q: Is it food-industry compliant?
A: Yes; grease meets FDA H1 and USDA requirements for incidental food contact.

Q: What are its mounting dimensions?
A: Bore 25 mm x Outer diameter 52 mm x Width 17 mm; lock with set-screw at ~3.9 Nm.

Q: What temperature can it operate in?
A: Suitable for -20 °C up to +120 °C environments.

Q: Does it handle misalignment?
A: Yes; the spherical outer ring design compensates shaft misalignment.
