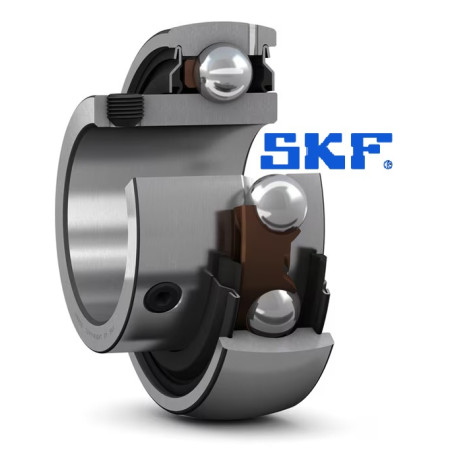

YAT 204 SKF 20x47x25.5 Insert bearing with set screws locking and narrow inner ring

7316571059679
€12.44 (net)
Quantity

YAT 204 SKF 20x47x25.5

Insert bearing with set screws locking and narrow inner ring

Insert bearings are based on sealed deep groove ball bearings. This variant of insert bearing is suitable for applications with both constant and alternating directions of rotation. It has an inner ring extended on one side, and is locked onto the shaft by tightening two (set) screws on the inner ring.
  • Quick and easy to mount onto the shaft
  • Long service life
  • Reduce noise and vibration levels

Dimensions

Bore diameter 20 mm
Outside diameter 47 mm
Width, total 25.5 mm
Width, inner ring 25.5 mm
Width, outer ring 14 mm

Performance

Basic dynamic load rating 12.7 kN
Basic static load rating 6.55 kN
Limiting speed 8 500 r/min
SKF
7316571059679
YAT204

Data sheet

Diameter in. (mm)
20
Diameter out. (mm)
47
Thickness (mm)
25.5
Mark
SKF
