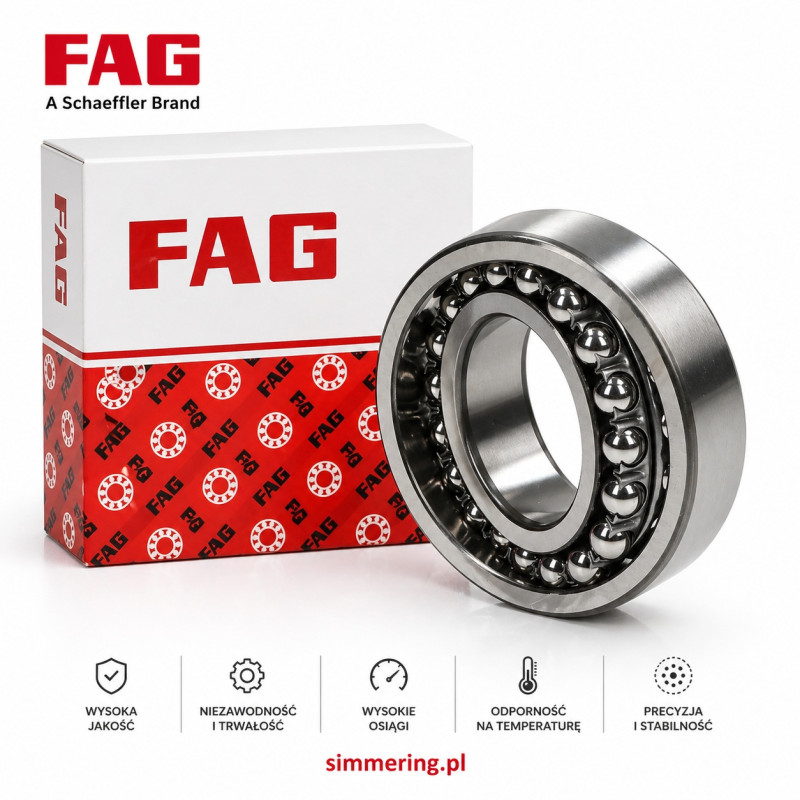

FAG 1203 TVH 17x40x12 self aligning ball bearing

Construction and design

The FAG 1203 TVH self aligning ball bearing is designed for applications where shaft misalignment and mounting inaccuracies occur.

It features a double row ball design and a spherical outer raceway, allowing automatic alignment during operation. The TVH polyamide cage reduces friction and improves lubrication distribution, ensuring smooth and efficient performance.

Compared to standard bearings such as 6203, this design provides significantly higher tolerance to angular misalignment.

Technical parameters

• Manufacturer: FAG
• Type: self aligning ball bearing
• Model: 1203 TVH
• Size: 17 x 40 x 12 mm
• Rows: double row
• Cage: TVH polyamide
• Feature: automatic alignment

Technical snippet:
The 1203 TVH self aligning ball bearing compensates shaft misalignment and ensures stable low friction operation.

Industrial applications

The FAG 1203 TVH is widely used in compact and light industrial systems where flexibility and reliability are required.

Typical applications include:

• conveyor systems
• electric motors and drives
• fans and ventilation units
• agricultural machinery
• automation equipment

It is particularly effective in systems exposed to vibration, shaft deflection and installation inaccuracies.

Operational advantages

This bearing provides reliable performance in real industrial conditions:

• automatic misalignment compensation
• reduced vibration and noise
• extended service life of components
• tolerance to mounting errors
• stable performance in continuous operation

Main description

The FAG 1203 TVH 17x40x12 self aligning ball bearing is a compact and versatile rolling bearing designed for applications where perfect shaft alignment cannot be guaranteed.

A self aligning ball bearing is engineered to automatically adjust its position during operation, compensating for angular deviations between the shaft and housing. This significantly reduces mechanical stress and increases system reliability.

The 1203 TVH belongs to a widely used bearing series available across global bearing shop online platforms and B2B supply chains. It is often compared with equivalents such as SKF 1203, making it a standard solution in industrial applications.

Its double row ball construction ensures better load distribution, while the spherical outer raceway allows continuous alignment correction. This reduces wear and improves durability under dynamic conditions.

The polyamide TVH cage enhances performance by reducing friction and improving lubrication efficiency. This results in smoother, quieter operation and longer service intervals.

With dimensions 17x40x12 mm, this bearing is ideal for compact machinery and light to medium duty industrial applications where space is limited but reliability is essential.

FAG manufacturing quality ensures precision, durability and long service life, making this bearing a trusted solution for OEM manufacturers, maintenance teams and industrial distributors.

This product is designed for B2B customers seeking reliable and cost effective solutions for misalignment compensation.

FAQ

What is the difference between 1203 and 6203 bearing?
1203 is self aligning, while 6203 requires precise alignment.

Is this equivalent to SKF 1203?
Yes, it is commonly used as an interchangeable equivalent.

Where is 1203 TVH used?
In conveyors, motors, fans and industrial systems.

Does it reduce vibration?
Yes, it compensates misalignment and improves stability.

Is it suitable for continuous operation?
Yes, in standard industrial environments.
