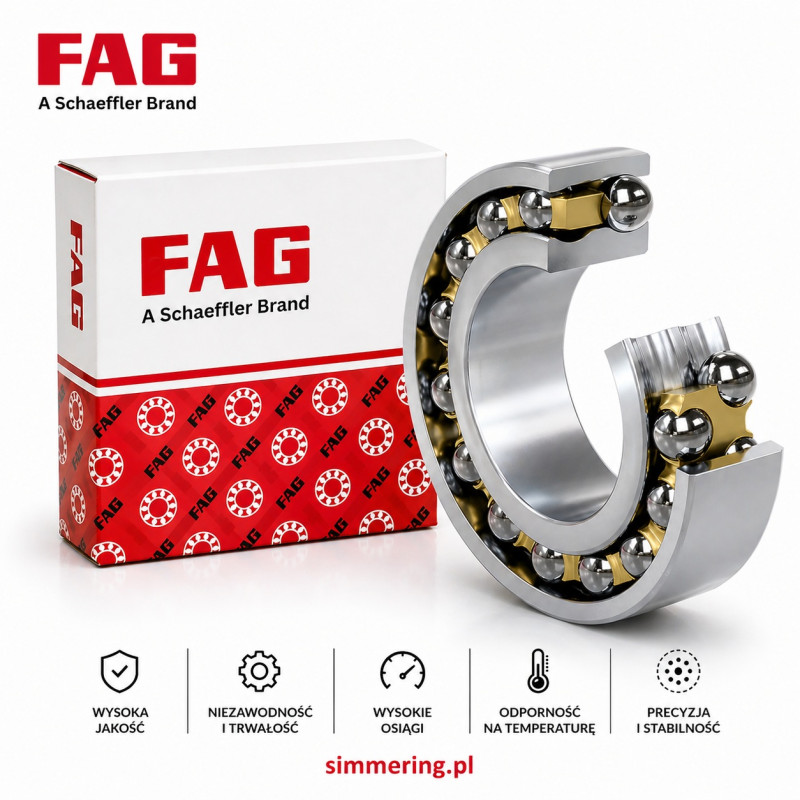

FAG 1320 K M C3 100x215x47 self aligning ball bearing

Construction and design

The FAG 1320 K M C3 is a heavy duty self aligning ball bearing designed for large industrial systems operating under high loads and misalignment conditions.

It features a double row ball arrangement and a spherical outer raceway, allowing automatic alignment during operation. The K version includes a tapered bore for mounting on adapter sleeves, while the M designation indicates a machined brass cage for increased strength and durability.

The C3 internal clearance provides additional operating space, making the bearing suitable for high temperature and high load environments.

Technical parameters

• Manufacturer: FAG
• Type: self aligning ball bearing
• Model: 1320 K M C3
• Size: 100 x 215 x 47 mm
• Rows: double row
• Bore: tapered
• Cage: machined brass
• Clearance: C3 increased

Technical snippet:
The 1320 K M C3 bearing compensates shaft misalignment and ensures stable operation under heavy load and thermal conditions.

Industrial applications

The FAG 1320 K M C3 is designed for heavy industrial applications requiring high load capacity and reliable alignment compensation.

Typical applications include:

• large conveyor systems
• heavy machinery and industrial drives
• mining and processing equipment
• agricultural and construction machinery
• OEM and maintenance operations

It performs reliably in systems exposed to vibration, shaft deflection and structural deformation.

Operational advantages

This self aligning ball bearing offers superior performance in demanding environments:

• automatic misalignment compensation
• high load capacity due to robust design
• brass cage for increased durability
• C3 clearance for high temperature operation
• extended service life in continuous duty

Main description

The FAG 1320 K M C3 100x215x47 self aligning ball bearing is a high capacity rolling bearing designed for heavy duty industrial applications where shaft misalignment, thermal expansion and dynamic loads are present.

A self aligning ball bearing is engineered to automatically adjust its position during operation, compensating angular deviations between the shaft and housing. This significantly reduces stress, wear and the risk of mechanical failure.

The 1320 K M C3 belongs to a widely used series of bearings available across global bearing shop online platforms, wholesale distribution channels and B2B marketplaces. It is commonly used as an equivalent to models such as SKF 1320 K M C3, making it a standard solution for large scale industrial systems.

Its double row ball construction ensures even load distribution, while the spherical outer raceway enables continuous alignment correction. This protects both shaft and housing from excessive stress and prolongs service life.

The machined brass cage provides superior mechanical strength compared to polyamide cages, making it suitable for heavy load and demanding operating conditions. The C3 clearance allows the bearing to operate reliably under elevated temperatures and higher speeds.

With dimensions 100x215x47 mm, this bearing is ideal for large machinery and heavy duty applications where durability and reliability are critical.

FAG manufacturing quality guarantees precision, long service life and consistent performance, making this bearing a preferred choice for OEM manufacturers, industrial distributors and maintenance teams.

This product is designed for B2B customers requiring robust and reliable solutions for heavy industrial operations.

FAQ

What does K M C3 mean in this bearing?
K indicates a tapered bore, M refers to a brass cage and C3 means increased internal clearance.

Is this equivalent to SKF 1320 K M C3?
Yes, it is commonly used as a direct equivalent.

Where is this bearing used?
In heavy machinery, conveyors and industrial systems.

Why use a brass cage instead of polyamide?
Brass provides higher strength and durability in heavy duty applications.

Is it suitable for high temperature operation?
Yes, thanks to the C3 clearance.
