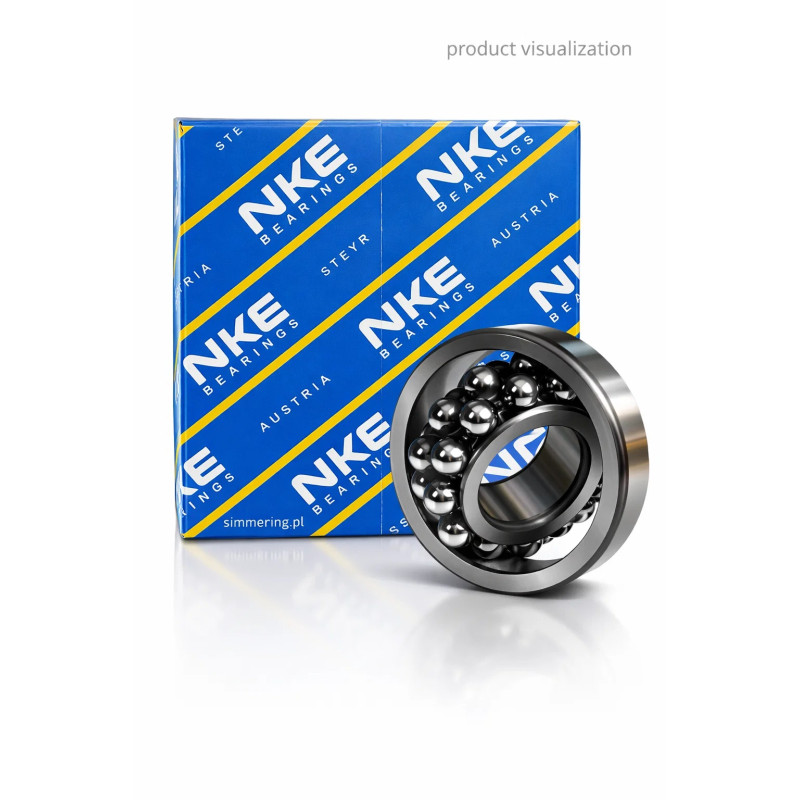

Self-Aligning Ball Bearing 1308 K TV C3 NKE 40x90x23

Main Description

The 1308 K TV C3 NKE self-aligning ball bearing 40x90x23 is a double-row bearing with a tapered bore and increased internal clearance, designed for reliable operation in systems exposed to misalignment, vibration, and variable loads.

Within the self-aligning ball bearings category, the 1308 K TV C3 NKE combines a spherical outer raceway, tapered bore K, and C3 clearance to deliver flexibility and durability in demanding conditions. The self-aligning design allows automatic compensation of shaft and housing misalignment, reducing stress and extending service life. The tapered bore enables mounting on adapter sleeves, providing installation versatility. The C3 clearance ensures safe operation at higher temperatures and speeds, while the TV cage made of polymer improves running performance and reduces friction.

The 40x90x23 size is widely used in medium-duty industrial applications where alignment precision is difficult to maintain.

Construction and Design

The 1308 K TV C3 NKE bearing is engineered for flexibility and long-term performance.

Key design features:

• double-row self-aligning ball bearing
• spherical outer ring raceway for misalignment compensation
• tapered bore (K) for adapter sleeve mounting
• increased internal clearance (C3)
• TV polymer cage for reduced weight and friction
• high-quality bearing steel for durability

This design ensures stable operation even under shaft deflection and installation inaccuracies.

Industrial Applications

The 1308 K TV C3 NKE bearing is suitable for applications where misalignment and structural flexibility are present.

Typical applications include:

• conveyor systems and material handling
• agricultural machinery
• industrial equipment with long shafts
• drive systems and transmissions
• machinery exposed to vibration and deflection

The tapered bore allows flexible mounting and easy adjustment in different configurations.

Technical Parameters

• type: self-aligning ball bearing
• model: 1308 K TV C3 NKE
• inner diameter: 40 mm (tapered bore)
• outer diameter: 90 mm
• width: 23 mm
• design: double-row
• bore type: tapered (K)
• internal clearance: C3
• cage: TV polymer
• material: bearing steel
• operating characteristics: misalignment compensation, stable operation at higher speeds and temperatures

Operational Advantages

The 1308 K TV C3 NKE bearing offers several benefits:

• automatic misalignment compensation
• flexible mounting using adapter sleeves
• improved performance under thermal expansion
• reduced stress on surrounding components
• extended service life in demanding conditions

This makes it a reliable solution for industrial systems where alignment and operating conditions vary.

FAQ

What does K mean in 1308 K bearing?
K indicates a tapered bore for mounting on adapter sleeves.

What does C3 clearance mean?
It refers to increased internal clearance for higher temperature and speed conditions.

Is this bearing self-aligning?
Yes, it automatically compensates for shaft misalignment.

What is TV in NKE bearings?
It refers to a polymer cage.

Where is this bearing typically used?
In conveyors, machinery, and industrial systems.
