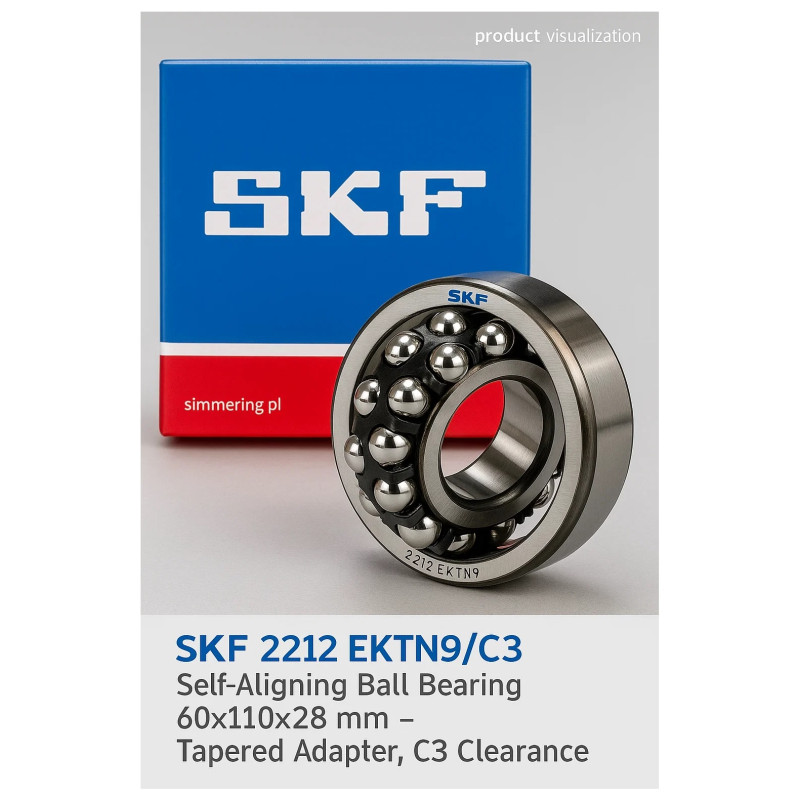

SKF 2212 EKTN9/C3 60x110x28 mm Self Aligning Ball Bearing

Design and Construction

SKF 2212 EKTN9/C3 is a double row self aligning ball bearing designed to operate reliably in applications exposed to shaft misalignment and housing deflection. Within the category of SKF self aligning ball bearings, this model represents a medium size solution optimized for dynamic industrial systems.

The bearing features two rows of balls running in a common spherical outer ring raceway. This geometry allows automatic angular adjustment of the inner ring relative to the outer ring, reducing stress caused by mounting inaccuracies.

The EKTN9 designation indicates a glass fiber reinforced polyamide cage, ensuring reduced weight, lower friction and stable ball guidance at higher speeds. The C3 internal clearance provides increased radial clearance, recommended for elevated operating temperatures or tighter interference fits. The tapered bore 1:12 enables mounting on an adapter sleeve for flexible shaft configurations.

Industrial Applications

SKF 2212 EKTN9/C3 60x110x28 mm is commonly used in:

• Industrial gearboxes

• Centrifugal and axial fans

• Process pumps

• Conveyor systems

• Agricultural machinery

• Power transmission assemblies requiring misalignment compensation

This 60 mm bore variant is particularly effective in systems where moderate radial loads and occasional axial loads occur simultaneously.

Technical Parameters

Technical specification snippet:

Type: self aligning ball bearing, double row
Series: 2212
Brand: SKF
Designation: 2212 EKTN9/C3
Bore diameter: 60 mm
Outer diameter: 110 mm
Width: 28 mm
Internal clearance: C3
Bore type: tapered 1:12

Common dimensional search phrases include: SKF 60x110x28 bearing, 2212 C3 bearing, SKF 2212 EKTN9 tapered bore, self aligning bearing 60 mm.

Operational Advantages

• Automatic compensation of shaft misalignment

• Reduced mounting stress

• Extended service life in vibrating systems

• Optimized cage stability at higher speeds

• Reliable performance under fluctuating loads

Compared to rigid deep groove ball bearings, SKF self aligning ball bearings provide superior tolerance to installation deviations and structural distortion.

Main Description

SKF 2212 EKTN9/C3 60x110x28 mm is a double row self aligning ball bearing with tapered bore, engineered to compensate shaft misalignment while operating under dynamic radial loads.

As part of the SKF 2212 series, this bearing strengthens the self aligning ball bearings category by delivering reliable performance in medium duty industrial environments. The spherical outer raceway allows the bearing to realign automatically, minimizing internal stress and preventing premature wear.

The 60x110x28 mm configuration is widely selected for industrial fans, mid size gear units and pump drives. The C3 internal clearance ensures thermal stability when operating temperatures rise, while the EKTN9 polyamide cage reduces friction and enhances rotational efficiency.

The tapered bore version provides installation flexibility, particularly when used with adapter sleeves, allowing easier mounting, dismounting and internal clearance adjustment. In maintenance intensive environments, this feature significantly reduces downtime.

For maintenance departments and OEM system integrators, SKF 2212 EKTN9/C3 offers a balance between misalignment tolerance, operational durability and predictable long term performance.

FAQ

Does SKF 2212 EKTN9/C3 have a cylindrical or tapered bore?
This model features a tapered bore 1:12, designed for mounting on adapter sleeves.

When should C3 clearance be selected?
C3 is recommended for higher operating temperatures, higher speeds or interference fit mounting conditions.

Can 2212 EKTN9/C3 support axial loads?
Yes, as a double row self aligning ball bearing it can accommodate moderate axial loads in both directions in addition to radial loads.

Where is the 60x110x28 mm size typically used?
It is frequently applied in industrial fans, gearboxes, conveyor drives and pump systems.
