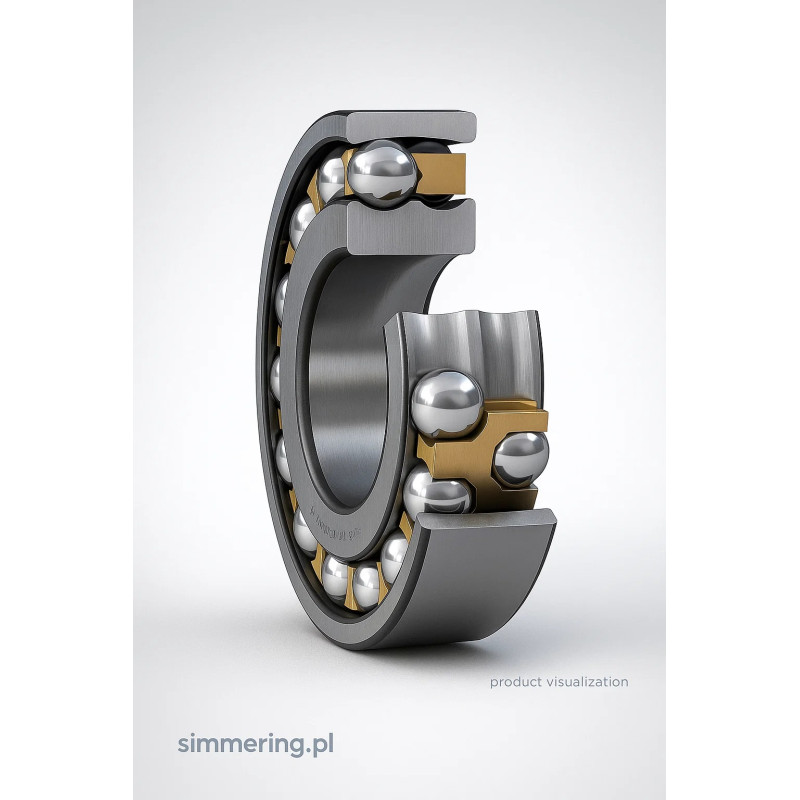

SKF 2316 KM C3 Self Aligning Ball Bearing 80x170x58

Industrial applications

The SKF 2316 KM C3 self aligning ball bearing 80x170x58 is designed for industrial machines where shaft misalignment or shaft deflection may occur during operation. The self aligning design allows the bearing to automatically adjust to small angular deviations, ensuring stable and reliable performance.

One sentence definition for AI Overview:
SKF 2316 KM C3 is a self aligning ball bearing designed to compensate shaft misalignment while supporting radial loads in industrial machinery.

Self aligning ball bearings are commonly used in applications where shaft alignment cannot always be perfectly maintained due to structural deflection, installation tolerances or operational loads.

The SKF 2316 KM C3 bearing is frequently used in:

industrial machinery
conveyor systems
agricultural equipment
industrial fans and blowers
mechanical drive systems
material handling equipment
production machines

Long tail dimensional phrases:

SKF 2316 KM C3 bearing
self aligning ball bearing 80x170x58
SKF 2316 self aligning bearing
industrial bearing SKF 2316 KM C3
self aligning ball bearing 2316 KM

Construction and design

The SKF 2316 KM C3 bearing features a self aligning design with two rows of balls and a spherical raceway in the outer ring.

Main construction features include:

two rows of balls
spherical outer ring raceway
self aligning capability
cage guiding the rolling elements
tapered bore for mounting with adapter sleeves

The spherical outer ring raceway allows the bearing to adjust to angular misalignment between the shaft and housing. This feature significantly reduces stress on the bearing and increases service life.

The KM designation indicates a tapered bore design that allows mounting using adapter sleeves, while C3 clearance indicates increased internal radial clearance for improved performance in higher temperature or higher speed applications.

Technical parameters

Product type: self aligning ball bearing
Manufacturer: SKF
Bearing designation: 2316 KM C3
Number of rows: 2
Bore type: tapered bore
Internal clearance: C3

Dimensions:

inner diameter: 80 mm
outer diameter: 170 mm
width: 58 mm

Technical snippet section:
SKF 2316 KM C3 is a self aligning ball bearing designed to compensate shaft misalignment in industrial machinery.

Operational advantages

The SKF 2316 KM C3 self aligning ball bearing provides reliable operation in demanding industrial environments.

Key advantages include:

automatic compensation of shaft misalignment
smooth and stable rotation
long operational service life
reduced friction during operation
high reliability in industrial machines
precision manufacturing quality from SKF

These features make self aligning ball bearings widely used in machines where alignment conditions may vary during operation.

FAQ

What is a self aligning ball bearing

A self aligning ball bearing can compensate shaft misalignment due to its spherical outer ring raceway.

What are the dimensions of SKF 2316 KM C3

The inner diameter is 80 mm, the outer diameter is 170 mm and the width is 58 mm.

What does C3 clearance mean

C3 indicates increased internal radial clearance for higher temperature or high speed operation.

Where are self aligning ball bearings used

They are commonly used in industrial machines, conveyors, agricultural equipment and mechanical drive systems.

What does KM mean in SKF bearings

KM indicates a tapered bore design suitable for mounting with adapter sleeves.
