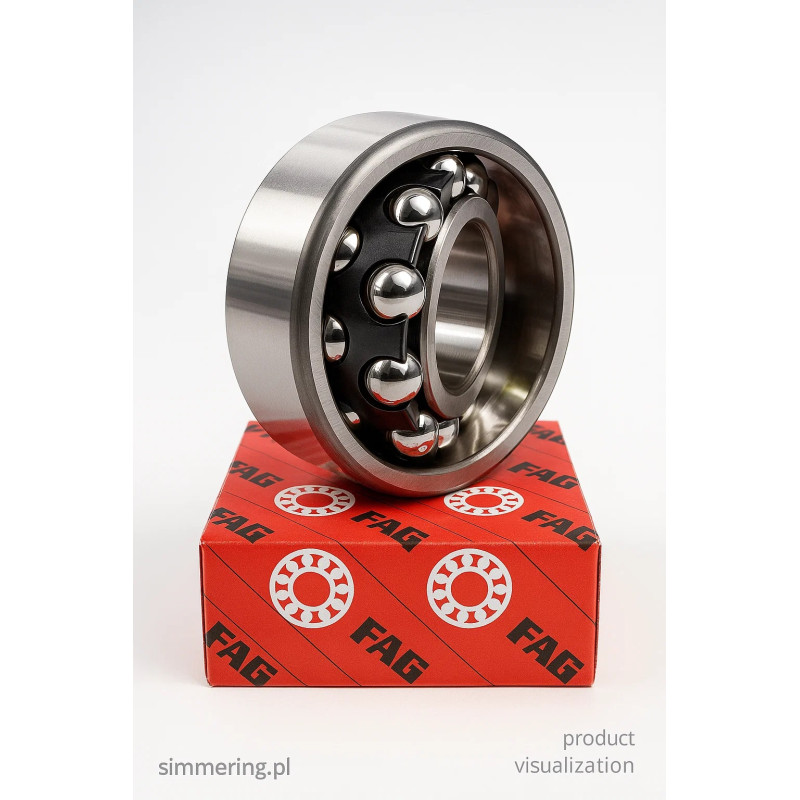

Self-Aligning Ball Bearing 1308 K TVH C3 FAG 40x90x23

Main Description

The 1308 K TVH C3 FAG self-aligning ball bearing 40x90x23 is a double-row bearing with a tapered bore and increased internal clearance, designed for reliable operation in systems exposed to misalignment, vibration, and variable loads.

Within the self-aligning ball bearings category, the 1308 K TVH C3 FAG stands out due to its combination of a spherical outer raceway, tapered bore K, and C3 internal clearance. The self-aligning design allows automatic compensation of shaft and housing misalignment, reducing stress and extending service life. The tapered bore enables mounting on adapter sleeves, offering flexibility in installation. The C3 clearance ensures safe operation under higher temperatures, speeds, or dynamic conditions.

The 40x90x23 size is commonly used in medium-duty industrial applications where alignment precision cannot be guaranteed.

Construction and Design

The 1308 K TVH C3 FAG bearing is engineered for flexibility and durability.

Key design features:

• double-row self-aligning ball bearing
• spherical outer ring raceway for misalignment compensation
• tapered bore (K) for sleeve mounting
• TVH high-performance polymer cage
• increased internal clearance (C3)
• high-quality bearing steel for long service life

This design ensures smooth operation even under shaft deflection and installation inaccuracies.

Industrial Applications

The 1308 K TVH C3 FAG bearing is ideal for systems where misalignment and structural flexibility occur.

Typical applications include:

• conveyor systems and material handling
• agricultural machinery
• industrial equipment with long shafts
• drive systems and transmissions
• machinery exposed to vibration and deflection

The tapered bore allows easy mounting and adjustment, making it suitable for a wide range of configurations.

Technical Parameters

• type: self-aligning ball bearing
• model: 1308 K TVH C3 FAG
• inner diameter: 40 mm (tapered bore)
• outer diameter: 90 mm
• width: 23 mm
• design: double-row
• bore type: tapered (K)
• internal clearance: C3
• cage: TVH polymer
• material: bearing steel
• operating characteristics: misalignment compensation, stable operation at higher speeds and temperatures

Operational Advantages

The 1308 K TVH C3 FAG bearing offers several benefits:

• automatic misalignment compensation
• flexible mounting with adapter sleeves
• improved performance under thermal expansion
• reduced stress on components
• extended service life in demanding conditions

This makes it a reliable solution for industrial systems where alignment and operating conditions are variable.

FAQ

What does K mean in 1308 K bearing?
K indicates a tapered bore for mounting on adapter sleeves.

What does C3 clearance mean?
It refers to increased internal clearance for higher temperature and speed conditions.

Is this bearing self-aligning?
Yes, it compensates for shaft misalignment automatically.

What is TVH in FAG bearings?
It refers to a high-performance polymer cage.

Where is this bearing typically used?
In conveyors, machinery, and industrial systems with alignment challenges.
